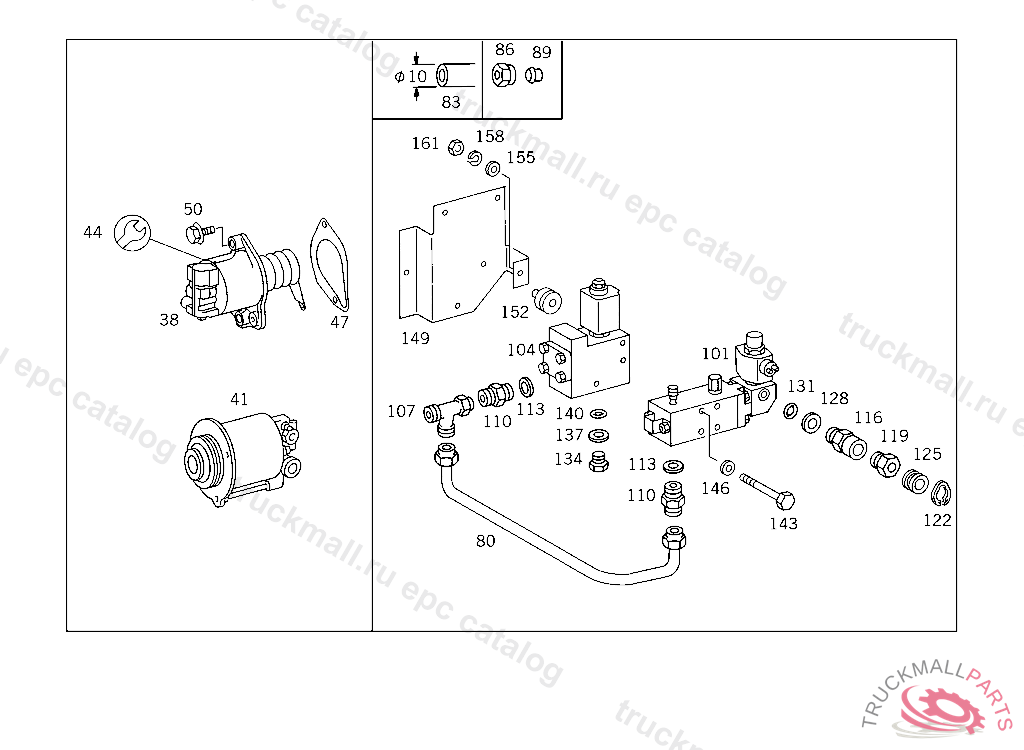

Поз.
Артикул
Описание
38
CLUTCH BOOSTERKNORR
38
CLUTCH BOOSTERWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
41
CLUTCH BOOSTER
44
REPAIR KIT CLUTCH BOOSTER WABCO
47
COVER PLATETO 000 295 02 18 , 000 295 09 18
50
SCREW CLUTCH BOOSTER TO BELL HOUSING,K 037846
50
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
80
LINE
83
LINE
83
LINE GAS LINE 10X1,5, LENGTH AVAILABLE 3000 MM REPAIR WORK SUBJECT TO SAFETY CHECK
86
NUT. UNION NUT LINE CONNECTION
89
CUTTING RING. GLAND LINE CONNECTION
101
SENDER UNIT
104
VALVE
107
FITTING LINE CONNECTION
110
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
113
SEALING RING. SEAL RING ENGINE BREATHING
116
FITTING LINE CONNECTION
119
SCREW. UNION SCREW , Replaced By: A0009973734
122
LOCK , Replaced By: A0009945448
125
SEAL RING , Replaced By: A0009940747
128
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
128
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
131
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
134
SCREW
137
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
137
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
140
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
143
SCREW8X110 MM
143
SCREW VALVE TO BRACKET M 8X55
146
WASHER , Replaced By: N000125008443
149
BRACKET PRESSURE SENDER UNIT
152
RUBBER BUFFER , Replaced By: A0009887511
155
WASHER , Replaced By: N000125008443
158
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
161
NUT
