Mercedes A0028200226 - БЛОК УПР-Я СИДЕНЬЯМИ

O350 TOURISMO-RHD O 403-RHD EURO2 613.455

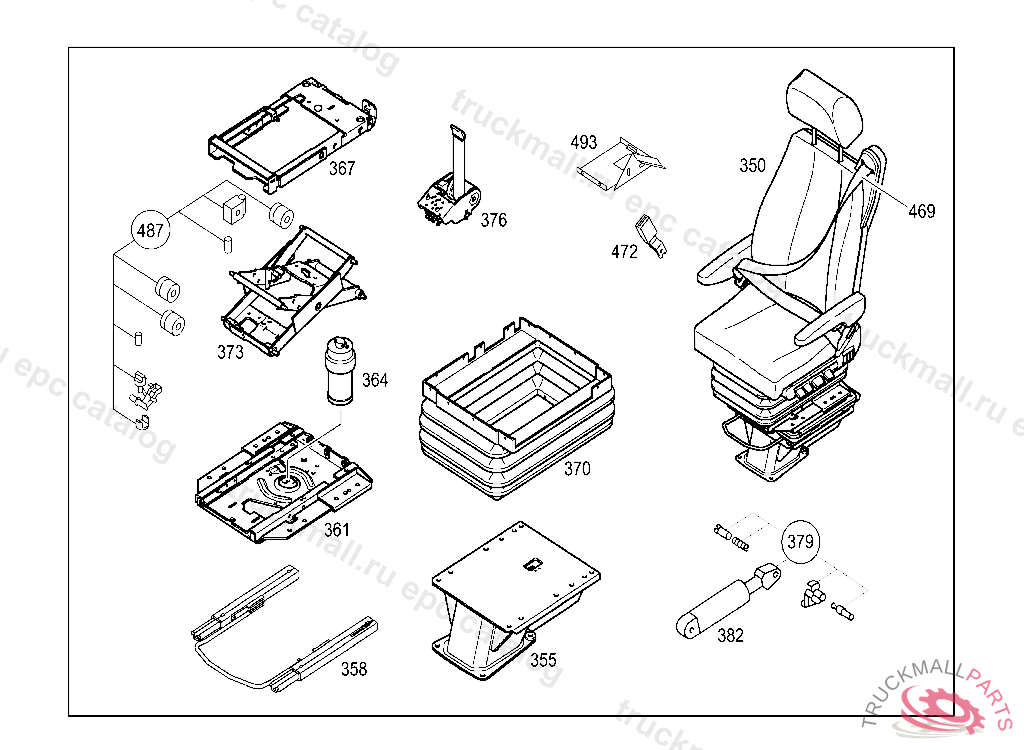

91 FRONT SEATS - 035 GRAMMER DRIVER'S SEAT IL. 4

Поз.
Артикул
Описание
350
A6139102501
FRONT SEAT LESS ARMREST, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
350
A6139101001
FRONT SEAT
355
A0009100557
CONSOLE SWIVEL TYPE
355
A0009100857
CONSOLE
358
A0009100057
CONSOLE
358
A0009101257
CONSOLE SWIVEL TYPE
361
A0009100543
FRAME
361
A0009100443
FRAME
364
A0008000436
SPRING
367
A0009100343
FRAME
370
A0009194120
COVERING
370
A0009194420
COVERING
373
A0009106220
SEAT FRAMEWORK
376
A0028200226
VALVE LEVEL ADJUSTMENT
379
A0019190945
SHOCK ABSORBER VERTICAL,ADJUSTABLE
379
A0019190845
SHOCK ABSORBER PARTS KIT
382
A0009199045
SHOCK ABSORBER
469
A0038608785
SAFETY BELT
472
A0018609569
FASTENER
472
A0028601469
FASTENER
487
A6289100099
PARTS KIT
487
A0009102701
FRONT SEAT (WEARING PARTS KIT) TO A 613 910 02 01
493
A6139101114
BRACKET
999
A0009101428
SPRING HORIZONTAL ADJUSTMENT TO A 613 910 02 01
999
A0009102071
LEVER LEFT TO A 613 910 02 01
999
A0009190670
PULL FORE-AND-AFT ADJUSTMENT TO A 613 910 02 01
999
A0009191070
PULL , Replaced By: A0009190030
999
A0009197560
HANDLE RIGHT
