Mercedes A6152000223 - ВЕНТИЛЯТОР

OM 615 615.937

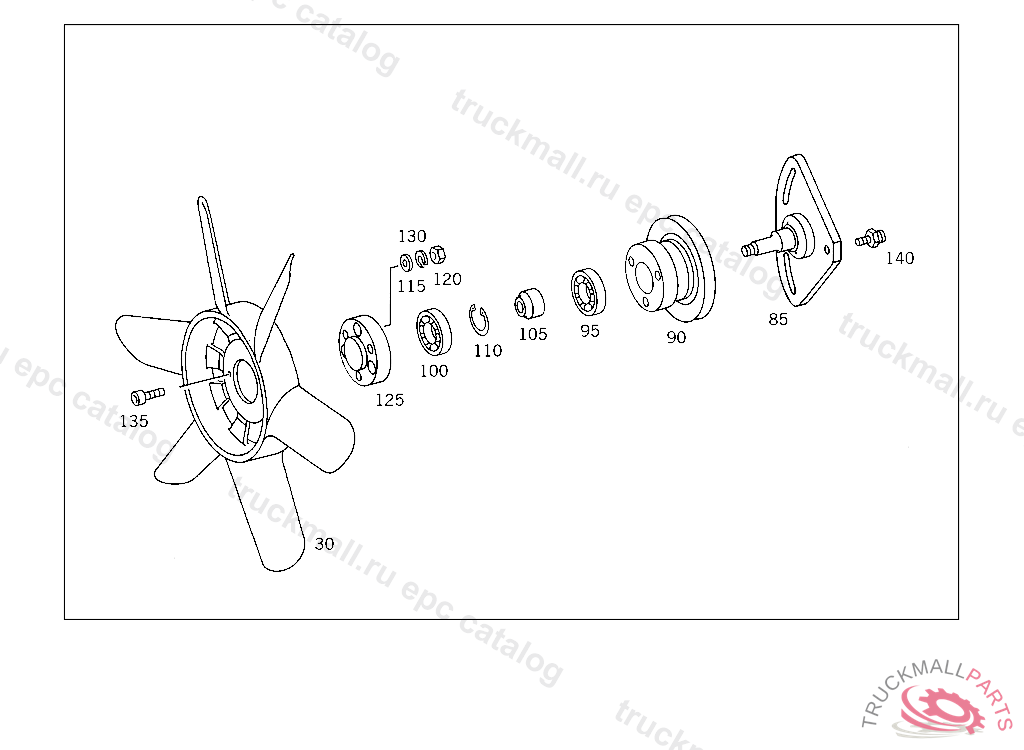

03 MOVING PARTS - 001 ACCESSORIES,LOOSE IL.2

Поз.
Артикул
Описание
30
A6152000223
FAN PRESSURE TYPE
85
A6152000628
BEARING BRACKET FAN
85
A6152000528
BEARING BRACKET , Replaced By: A6152000628
90
A6152050310
PULLEY
95
A1159800015
GROOVED BALL BEARING
95
A1159800115
GROOVED BALL BEARING
100
N000625306205
GROOVED BALL BEARING
105
A6152050053
SPACER TUBE
110
N000472035000
LOCK RING TORSION BAR
115
N000125013008
WASHER
120
N000934012022
NUT STRAP TO SUPPORT
125
A6152050213
EXPANSION PLUG
130
N912006008001
LOCK WASHER EXPANSION TANK TO BRACKET,670951
135
N007984008013
SCREW STEERING SHAFT BEARING TO CAB
140
A6152050071
SCREW FAN BRACKET TO PLATE
999
A1212010080
GASKET , Replaced By: A1102010080
999
A6082950040
BRACKET , Replaced By: A6032930040
999
A6152050706
FAN , Replaced By: A6152000223
999
N000625006202
GROOVED BALL BEARING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1159800015
