Mercedes N000931010268 - SCHRAUBE M 10 X 70

OM 615 615.937

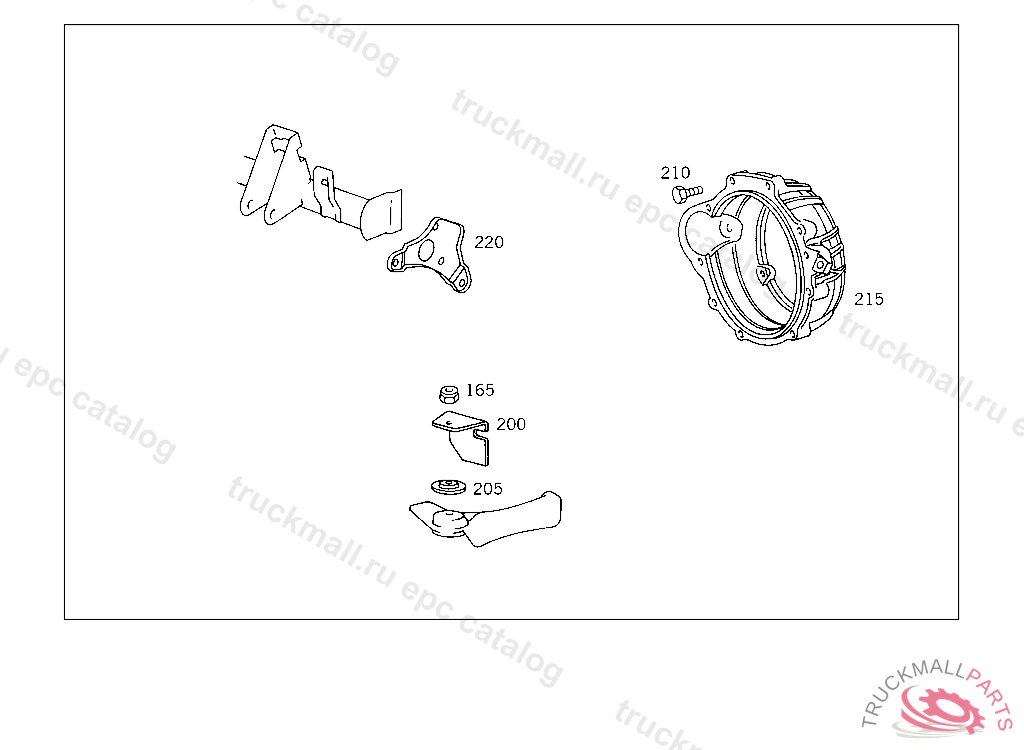

03 MOVING PARTS - 001 ACCESSORIES,LOOSE IL.4

Поз.
Артикул
Описание
165
N913002010001
NUT AIR CLEANER ELEMENT
200
A6082420034
SCREENING PLATE
205
A6082420012
DUST CAP
210
N304017010050
SCREW , Replaced By: N304017010055
210
N000931010268
SCREW , Replaced By: N304017010050
215
A6032510401
BELL HOUSING
220
A6032930040
BRACKET
999
A1212010080
GASKET , Replaced By: A1102010080
999
A6082950040
BRACKET , Replaced By: A6032930040
999
A6152000628
BEARING BRACKET FAN
999
A6152050706
FAN , Replaced By: A6152000223
999
N000625006202
GROOVED BALL BEARING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1159800015
