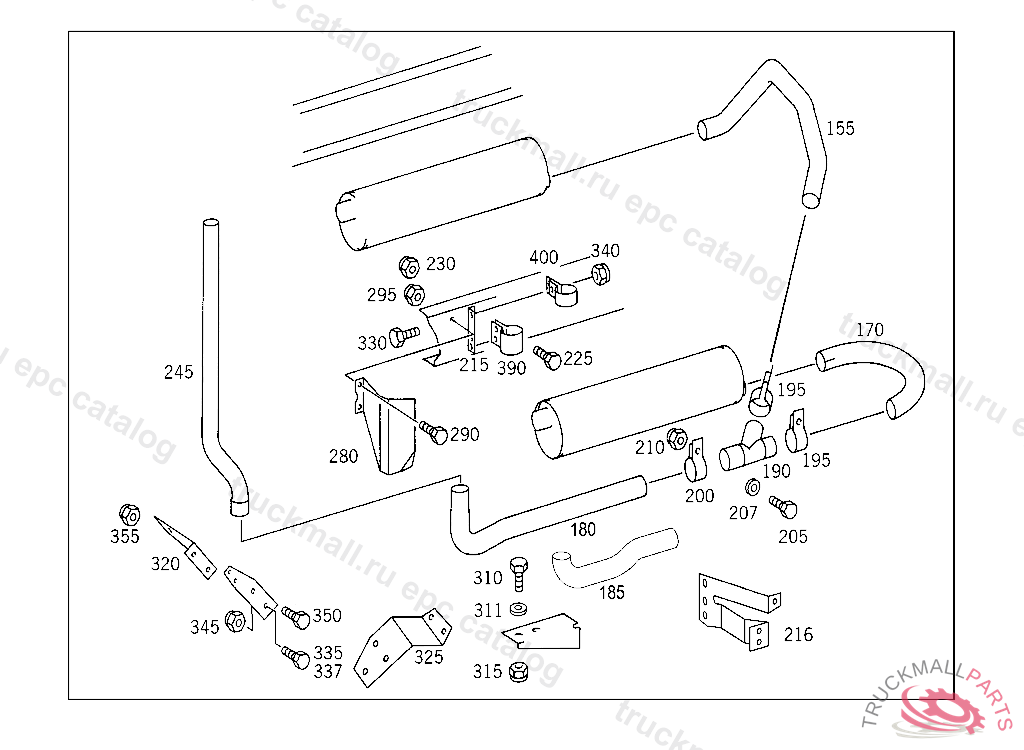

Поз.
Артикул
Описание
155
REAR EXHAUST PIPE FROM RIGHT EXHAUST MUFFLER TO CONNEC TION FITTING,5 741048
155
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
155
REAR EXHAUST PIPE FROM RIGHT EXHAUST MUFFLER TO CONNEC TION FITTING,5 741049
155
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
170
REAR EXHAUST PIPE FROM LEFT EXHAUST MUFFLER TO CONNECTION FITTING
170
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT
180
CONNECTOR REAR EXHAUST PIPE TO MUFFLER
180
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL
180
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
180
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL
180
CONNECTOR REAR EXHAUST PIPE TO MUFFLER
180
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL,K 035522
180
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL,5 741049
180
CONNECTOR FROM EXHAUST MUFFLER TO TAIL PIPE
180
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL
180
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL,K 035523
180
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
180
CONNECTOR FROM EXHAUST MUFFLER TO TAIL PIPE
185
REAR EXHAUST PIPE
185
INTERMEDIATE PIECE EXHAUST PIPE TO MUFFLER,K 035197
185
INTERMEDIATE PIECE EXHAUST PIPE TO MUFFLER,5 953233K 035196
185
INTERMEDIATE PIECE EXHAUST PIPE TO MUFFLER,5 953232
185
INTERMEDIATE PIECE FROM EXHAUST MUFFLER TO TAIL PIPE
190
FITTING REAR EXHAUST PIPE TO MUFFLER
195
CLAMP INTERMEDIATE PIECE
195
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
195
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
195
CLAMP , Replaced By: N071555090502
195
CLAMP , Replaced By: N071555094502
195
CLAMP EXHAUST PIPE
200
CLAMP , Replaced By: N071555090502
200
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
205
SCREW EXHAUST PIPE TO SIDE MEMBER
205
SCREW BRACKET TO SIDE MEMBER
205
SCREW , Replaced By: N304017010002
207
WASHER , Replaced By: N000125010532
207
WASHER RADIATOR TO RUBBER MOUNTING
210
NUT , Replaced By: N913023010002
210
NUT , Replaced By: N910113010000
210
NUT STRAP TO BRACKET
210
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
215
BRACKET TAIL PIPE
215
BRACKET EXHAUST PIPE & TAIL PIPE TO FRAME & CONSOLE
216
BRACKET EXHAUST PIPE & TAIL PIPE TO FRAME & CONSOLE
225
SCREW BRACKET TO SIDE MEMBER
225
SCREW PIPE CLAMP
225
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
225
SCREW BRACKET TO EXHAUST PIPE BRACKET
225
SCREW BRACKET TO CROSS CONNECTION STRUT
225
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
225
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
225
SCREW SUPPORT TO FENDER
225
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
225
SCREW , Replaced By: N304017008021
225
SCREW , Replaced By: N304017008018
225
SCREW , Replaced By: N304017008027
225
SCREW , Replaced By: N304017008034
225
SCREW , Replaced By: N304017008024
225
SCREW , Replaced By: N304017010002
225
SCREW , Replaced By: N308676014020
230
NUT , Replaced By: N913004008001
230
NUT , Replaced By: N910113010000
230
NUT , Replaced By: N910113014001
230
NUT STRAP TO BRACKET
230
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
230
NUT BRACKET TO SIDE MEMBER
230
NUT STRAP TO BRACKET
230
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
245
END PIECE BEHIND CAB,UPWARD
245
END PIECE BEHIND CAB,UPWARD
245
REAR EXHAUST PIPE BEHIND CAB,UPWARD
245
END PIECE BEHIND CAB,UPWARD
245
END PIECE BEHIND CAB,UPWARD
245
END PIECE BEHIND CAB,UPWARD
245
END PIECE , Replaced By: A6174923014
245
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 946474, Replaced By: A6524921604
245
END PIECE EXHAUST PIPE
280
PROTECTIVE PLATE (HEAT SHIELD)
280
PROTECTIVE PLATE (HEAT SHIELD)
290
SCREW BRACKET TO SIDE MEMBER
290
SCREW EXHAUST PIPE TO SIDE MEMBER
290
SCREW , Replaced By: N304017010002
295
NUT , Replaced By: N910113010000
295
NUT STRAP TO BRACKET
295
NUT EXHAUST PIPE TO SIDE MEMBER
310
SCREW BRACKET TO CROSS CONNECTION STRUT
310
SCREW , Replaced By: N304017008034
310
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
311
WASHER , Replaced By: N000125008443
311
WASHER EXHAUST MUFFLER TO STRAP
315
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
315
NUT BRACKET TO SIDE MEMBER
315
NUT , Replaced By: N913004008001
315
NUT , Replaced By: N910113014001
320
BRACKET TAIL PIPE
325
BRACKET TAIL PIPE
330
SCREW EXHAUST PIPE BRACKET TO SIDE MEMBER
330
SCREW BRACKET TO SIDE MEMBER
330
SCREW CONSOLE TO SIDE MEMBER
330
SCREW , Replaced By: N304017010002
330
SCREW , Replaced By: N304017012022
335
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
337
SCREW BRACKET TO SIDE MEMBER
340
NUT SUPPORT TO SIDE MEMBER
340
NUT STRAP TO BRACKET
340
NUT , Replaced By: N910113010000
345
NUT , Replaced By: N910113014001
345
NUT BRACKET TO SIDE MEMBER
350
SCREW END PIECE TO EXHAUST PIPE M 10X25
355
NUT STRAP TO BRACKET
355
NUT , Replaced By: N910113010000
390
CLAMP EXHAUST PIPE TO BRACKET
390
CLAMP EXHAUST PIPE TO BRACKET
400
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
400
CLAMP , Replaced By: N071555090502
400
CLAMP EXHAUST PIPE
999
CLAMP , Replaced By: A6554920340
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N009021008213
999
WASHER , Replaced By: N000125008443
999
BRACKET INTERMEDIATE PIECE TO FRAME
999
MOUNTING BRACKET TO CAB
999
BRACKET TAIL PIPE
999
REAR EXHAUST PIPE BEHIND CAB,UPWARD
999
CLAMP EXHAUST PIPE
999
INTERMEDIATE PIECE
999
BRACKET TAIL PIPE
999
PROTECTIVE PLATE (HEAT SHIELD)
999
PROTECTIVE PLATE (HEAT SHIELD)
999
BRACKET PROTECTIVE PLATE TO SUPPORT
999
BRACKET TAIL PIPE
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
BRACKET TAIL PIPE TO SIDE MEMBER, SIMPLE PART-PLEASE HAVE SHOP MADE
999
CLAMP EXHAUST PIPE TO BRACKET
999
END PIECE (TAIL PIPE)
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
CONNECTOR
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
999
BRACKET ,5 768419, Replaced By: A3464910441
999
END PIECE (TAIL PIPE),5 758826
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE (TAIL PIPE),5 5975185 758825
999
END PIECE (TAIL PIPE),5 5975185 758825
999
REAR EXHAUST PIPE VERTICAL,K 085783
999
END PIECE (TAIL PIPE),5 5644795 758825
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
END PIECE
999
END PIECE
999
END PIECE ,5 765949
999
END PIECE (TAIL PIPE)
999
END PIECE TAIL PIPE TO EXHAUST MUFFLER
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET
999
END PIECE (TAIL PIPE),K 035523
999
PROTECTIVE PLATE , NOT USED
999
INTERMEDIATE PIECE FROM CONNECTION FITTING TO CAB REAR PANEL,K 085783
999
END PIECE (TAIL PIPE),K 035523
999
END PIECE (TAIL PIPE)
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468859
999
END PIECE RIGHT
999
END PIECE LEFT
999
EXHAUST PIPE ,5 953233
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
CLAMP EXHAUST PIPE TO BRACKET
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET HEAT SHIELD TO FRAME
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
BRACKET , Replaced By: A6524921441
999
BRACKET TAIL PIPE
999
END PIECE
999
BRACKET
999
END PIECE
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,LEFT AND RIGHT
999
END PIECE , Replaced By: A6524926914
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE SHORT,EXHAUST MUFFLER,RIGHT
999
BRACKET , Replaced By: A6164920241
999
CONNECTOR BOTTOM,5 193595
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
BRACKET FRONT EXHAUST MUFFLER
999
PROTECTIVE PLATE (HEAT SHIELD)
999
BRACKET TAIL PIPE
