Поз.
Артикул
Описание

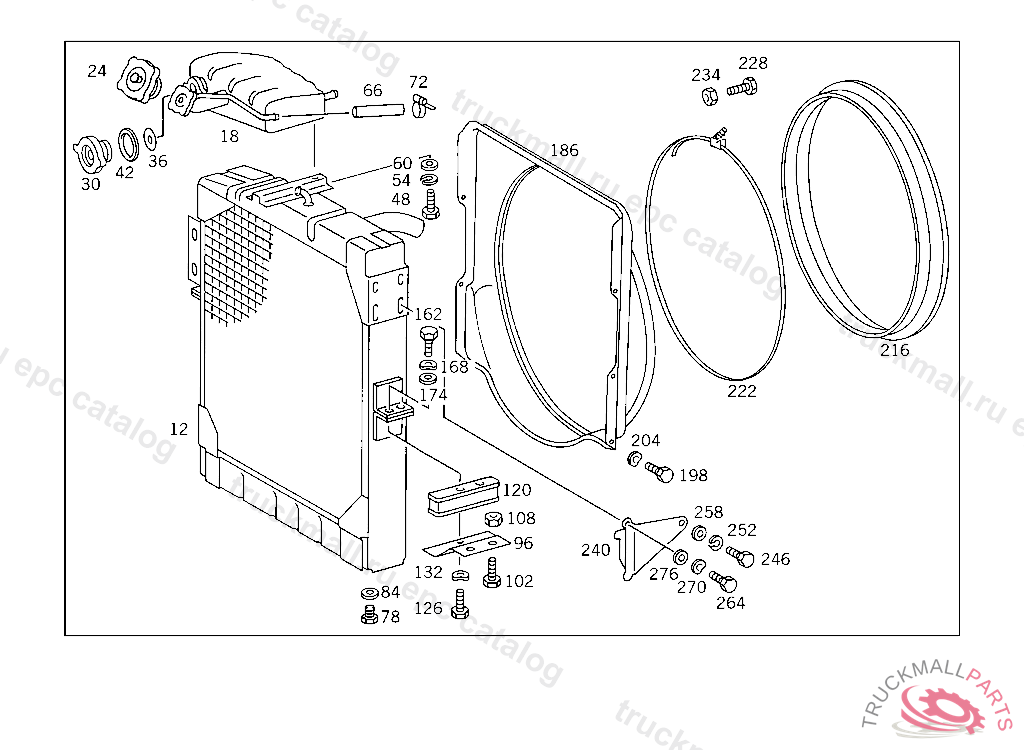

12
RADIATOR WATER BEHR
12
RADIATOR , Replaced By: A0015010901
18
TANK EXPANSION TANK
24
RADIATOR CAP FILLER NECK
24
RADIATOR CAP FILLER NECK
30
RADIATOR CAP CENTRAL
30
RADIATOR CAP CENTRAL
36
GASKET O.D., 52 MM
42
GASKET O.D., 37 MM
48
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
48
SCREW , Replaced By: N304017008016
54
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
60
WASHER EXHAUST MUFFLER TO STRAP
60
WASHER , Replaced By: N000125008443
66
HOSE OVERFLOW, EXPANSION TANK
72
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
72
CLAMP , Replaced By: N916017011001
78
SCREW PLUG WATER DRAIN
84
SEAL RING FUEL LINE TO FEED PUMP
102
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
102
SCREW , Replaced By: N308676012026
108
NUT SUPPORT TO SIDE MEMBER
126
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
132
SPRING WASHER STEERING COLUMN BRACKET TO CAB
198
SCREW COVER PLATE TO BRACKET
204
SPRING WASHER LICENSE PLATE TO BRACKET
240
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
246
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
246
SCREW , Replaced By: N304017008016
252
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
258
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
264
SCREW COVER PLATE TO BRACKET
270
SPRING WASHER LICENSE PLATE TO BRACKET
999
SCREW PLUG , Replaced By: N007604014101
999
HOSE , Replaced By: A0219977682
999
HOSE
999
BRACKET OI DIPSTICK GUIDE TUBE
999
BRACKET OIL DIPSTICK TO RADIATOR
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
CLAMP OIL DIPSTICK TO RADIATOR
