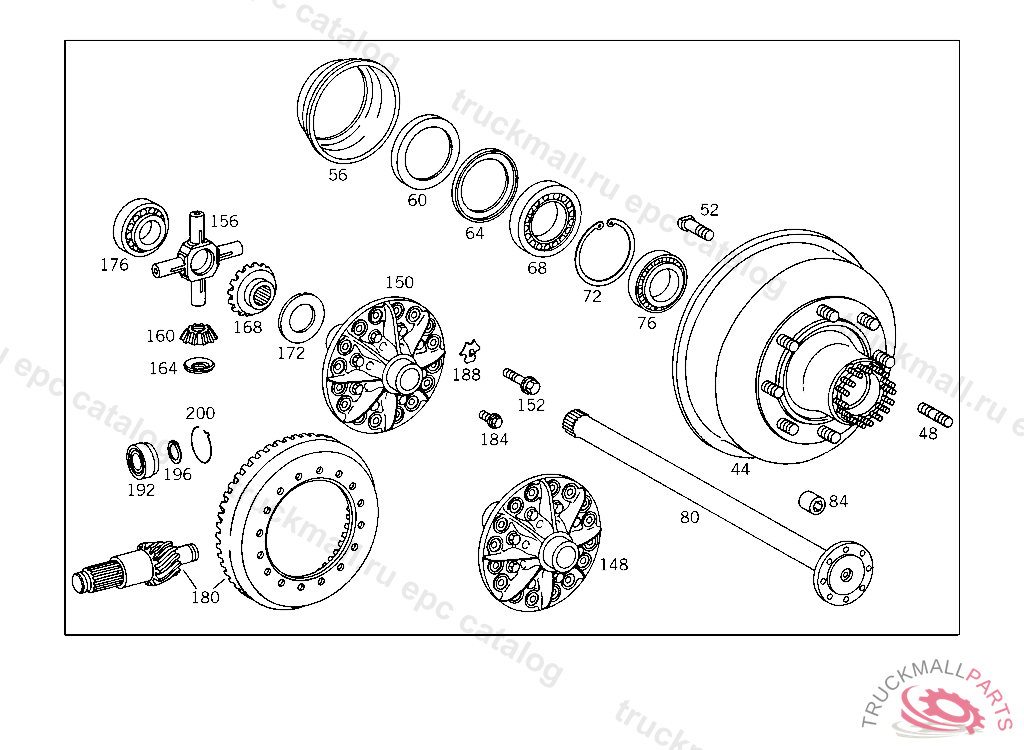

Поз.
Артикул
Описание
44
DRUM HUB
48
STUD
52
WHEEL MOUNTING BOLT
56
OIL COLLECTOR
60
SEAL RING
64
SPACER RING
68
TAPERED ROLLER BEARING
68
TAPERED ROLLER BEARING INSIDE
68
TAPERED ROLLER BEARING
68
TAPERED ROLLER BEARING
68
TAPERED ROLLER BEARING
72
LOCK RING DISC SUPPORT
76
TAPERED ROLLER BEARING
76
TAPERED ROLLER BEARING
80
REAR AXLE SHAFT
84
NUT
148
DIFFERENTIAL GEAR
148
DIFFERENTIAL GEAR , Replaced By: A3223503723
150
DIFFERENTIAL CASE
152
SCREW
156
DIFFERENTIAL SPIDER
160
DIFFERENTIAL PINION
164
SPHERICAL WASHER
168
SIDE GEAR
172
THRUST WASHER2 MM
176
TAPERED ROLLER BEARING
184
SCREW RING GEAR TO DIFFERENTIAL CASE
188
LOCK
192
CYLINDR. ROLLER BEARING , Replaced By: A0029819501
192
CYLINDR. ROLLER BEARING , Replaced By: A0029817901
192
CYLINDR. ROLLER BEARING
192
CYLINDR. ROLLER BEARING
192
CYLINDR. ROLLER BEARING
196
LOCK RING. RETAINING RING OIL PUMP TO TRANSMISSION CASE
200
SNAP RING
999
OIL COLLECTOR
999
THRUST RING
999
FLANGE
999
RING GEAR AND PINION RATIO: 40:7 OERLIKON
999
AXLE HOUSING ,A 006846
999
REAR AXLE
999
999
AXLE HOUSING ,A 006845
999
DRUM HUB , Replaced By: H993413500147
999
SPACER WASHER , Replaced By: A6703530552
999
SPACER WASHER , Replaced By: A6703530652
999
THRUST WASHER , Replaced By: A6703533752
999
THRUST WASHER , Replaced By: A6703530752
999
FLANGE , Replaced By: A3583500045
999
REAR AXLE SHAFT , Replaced By: A3223571101
999
THRUST RING RIGHT
999
RING GEAR AND PINION , Replaced By: A3643500439
999
RING GEAR AND PINION , Replaced By: A3413501039
999
STUD
999
PIN , Replaced By: A3523510174
999
CYLINDR. ROLLER BEARING , Replaced By: A0029819501
999
SEAL RING , Replaced By: A0039974446
999
CYLINDR. ROLLER BEARING , Replaced By: A0029818201
999
TAPERED ROLLER BEARING , Replaced By: A0019819805
