Поз.
Артикул
Описание

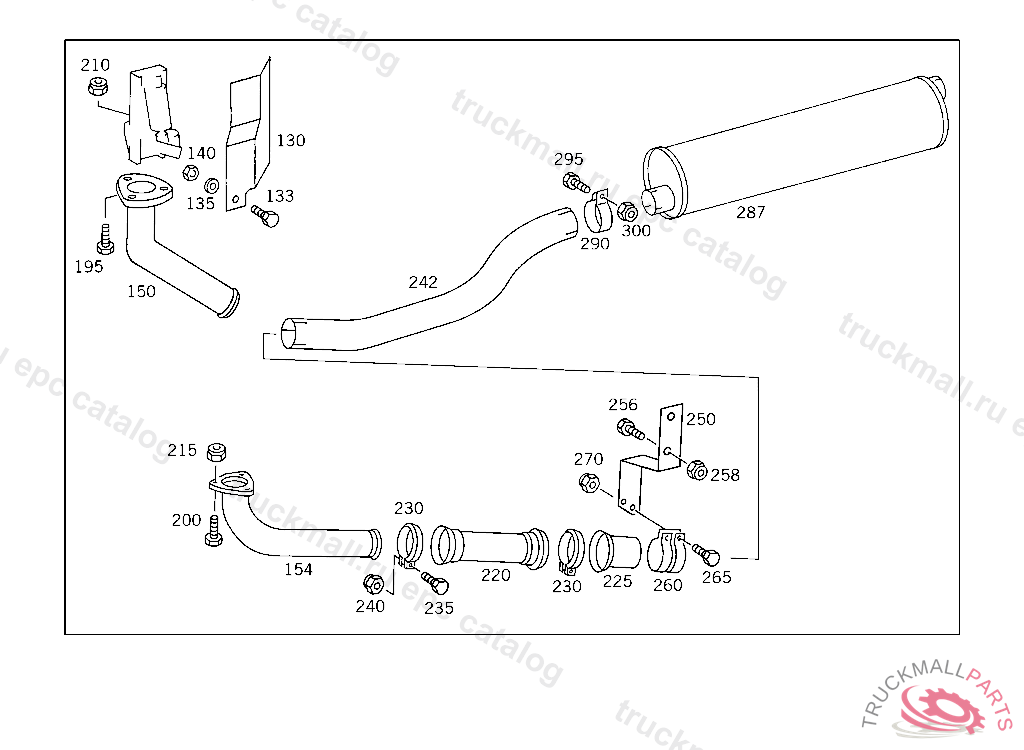

130
SCREENING PLATE THROTTLE HOUSING,5 163561
133
SCREW BRACKET TO THROTTLE HOUSING M 8X16
135
WASHER EXHAUST MUFFLER TO STRAP
135
WASHER , Replaced By: N000125008443
140
NUT
150
CONNECTOR FRONT,FRONT PART,5 195195
154
EXHAUST PIPE FRONT,FRONT PART,5 1935955 308039
195
SCREW VIBRATION ABSORBER TO BRACKET
210
NUT SUPPORT TO SIDE MEMBER
220
FLEXIBLE METAL TUBE CONNECTOR
220
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE FRONT PART TO REAR PART
225
COLLAR FRONT EXHAUST PIPE FRONT PART TO REAR PART
225
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
230
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
230
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
235
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
235
SCREW , Replaced By: N304017008028
240
NUT , Replaced By: N913004008001
240
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
250
BRACKET FRONT EXHAUST PIPE,5 1935955 308039
250
BRACKET EXHAUST PIPE SUSPENSION
256
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
256
SCREW , Replaced By: N308676014020
258
NUT , Replaced By: N910113014001
258
NUT BRACKET TO SIDE MEMBER
260
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
260
CLAMP AT CROSS MEMBER
265
SCREW , Replaced By: N304017010002
265
SCREW BRACKET TO SIDE MEMBER
270
NUT STRAP TO BRACKET
270
NUT , Replaced By: N910113010000
287
EXHAUST MUFFLER
290
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
290
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
290
CLAMP , Replaced By: N071555090502
295
SCREW , Replaced By: N304017010002
295
SCREW BRACKET TO SIDE MEMBER
300
NUT STRAP TO BRACKET
300
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004008001
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW BRACKET TO CONSOLE
999
SCREW , Replaced By: N308676012012
999
SCREW , Replaced By: N000961012208
999
SCREW , Replaced By: A4609900601
999
WASHER , Replaced By: N000125008443
999
BRACKET , Replaced By: A6764901040
999
BRACKET FRONT EXHAUST PIPE,5 502998
999
PROTECTIVE PLATE FRONT EXHAUST PIPE
999
BRACKET FRONT EXHAUST PIPE
999
PROTECTIVE PLATE FRONT EXHAUST PIPE
999
EXHAUST PIPE FRONT,FRONT PART,5 308040
999
EXHAUST PIPE FRONT,REAR PART,5 308040
999
BRACKET , Replaced By: A6504920241
999
SCREW EXHAUST PIPE TO BRACKET
999
VALVE EXHAUST BRAKE
999
THROTTLE HOUSING , Replaced By: A3661402253
999
SHAFT , Replaced By: A3661400063
999
WASHER INTERMEDIATE SPEED STOP
