Поз.
Артикул
Описание
8

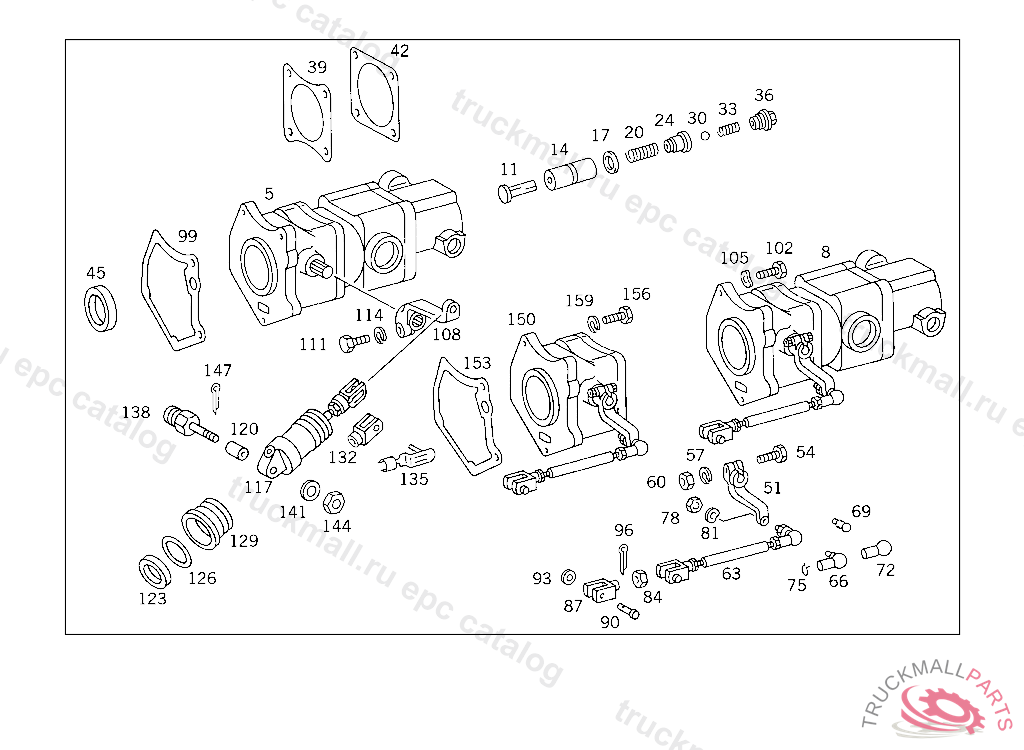

HYDRAULIC PUMP WITH CONTROL MECHANISM AND WITH LINKAGE,019034
8
HYDRAULIC PUMP WITH CONTROL MECHANISM AND WITH LINKAGE
8
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM
11
VALVE
14
PISTON
17
SEAL RING
24
VALVE CHECK VALVE
30
BALL10 MM
36
SCREW PLUG
39
GASKET CASE PART I TO CASE PART II
42
GASKET CONNECTION FLANGE
45
SEAL RING
51
LEVER SHIFTING SHAFT
54
SCREW SUPPORT TO FENDER
54
SCREW , Replaced By: N304017008018
57
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
60
NUT , Replaced By: N304032008006
60
NUT
63
ROD PULL ROD TO SHIFT LEVER
66
ANGLE JOINT DUMPER PUMP
69
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
72
BALL SOCKET ROD TO BALL PIVOT
75
SECURING CLIP. CIRCLIP
78
NUT , Replaced By: N304032008006
78
NUT
81
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
81
SPRING WASHER , Replaced By: N000137008212
84
NUT , Replaced By: N304032008006
84
NUT
87
YOKE OPERATING ROD
90
PIN PULL ROD TO SHIFT LEVER
93
WASHER BRACKET TO CROSS MEMBER
96
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
96
COTTER PIN LEVER TO ROD
99
GASKET , Replaced By: A3522611680
99
GASKET , Replaced By: A3522611980
99
GASKET COVER TO CASE REAR COVER
99
GASKET P.T.O. TO TRANSMISSION
102
SCREW SHIFTING CYLINDER TO CASE
105
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
105
SPRING WASHER , Replaced By: N000137008212
