Поз.
Артикул
Описание

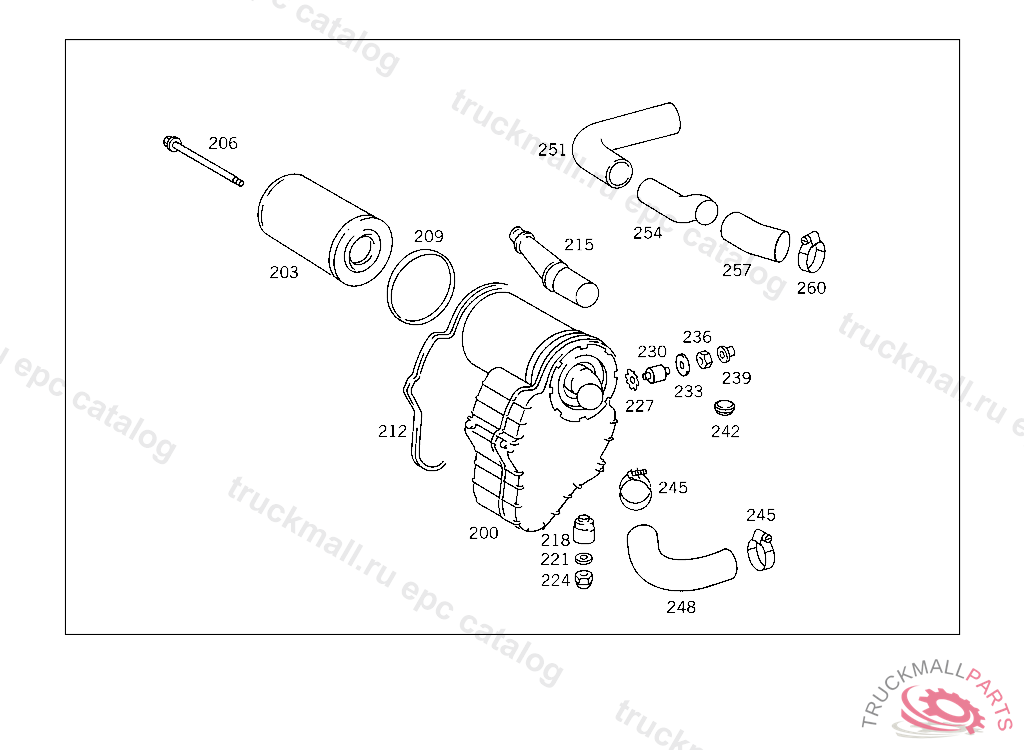

200
AIR CLEANER
200
AIR CLEANER
200
AIR CLEANERKNECHT
200
AIR CLEANER
203
FILTER ELEMENT
206
SCREWTO 012 094 88 02,012 094 89 02
206
SCREWTO 012 094 92 02,012 094 93 02
209
SEAL RINGTO 012 094 92 02,012 094 93 02
209
SEAL RINGTO012 094 88 02,012 094 89 02
212
WASHERTO 012 094 92 02,012 094 93 02
215
INTAKE PIPETO 012 094 92 02,012 094 93 02
218
MAINTENANCE INDICATORTO 011 094 09 02/17 02
221
SEAL RINGTO 001 431 72 14
224
NUT , FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
227
SERRATED WASHER BRACKET TO FIRE WALL
230
BUFFER AIR DUCT TO FRONT PANEL
233
WASHER BRACKET TO CAB REAR PANEL
233
WASHER , Replaced By: N009021008213
233
WASHER BRACKET TO LEFT SIDE MEMBER
236
NUT
239
PROTECTION CAP
242
GROMMET
245
CLAMP
245
LOOM TIE LINE MOUNTING
245
CLAMP , Replaced By: A0069972790
248
HOSE BETWEEN MUFFLER FILTER AND INTAKE PIPE
251
HOSE BETWEEN MUFFLER FILTER AND INTAKE PIPE
254
INTAKE PIPE , Replaced By: A0000947808
254
INTAKE PIPE FROM AIR CLEANER TO INTAKE PIPE
257
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 913,937,939, 601.3/602.3/611.3 871692, Replaced By: A6160941682
257
HOSE BETWEEN MUFFLER FILTER AND INTAKE PIPE
260
CLAMP , Replaced By: A0069972790
260
LOOM TIE LINE MOUNTING
