Mercedes N304017008034 - Болт крепления

GO 210 6/6,5-0,8 FROM PRODUCTION 1998 714.140

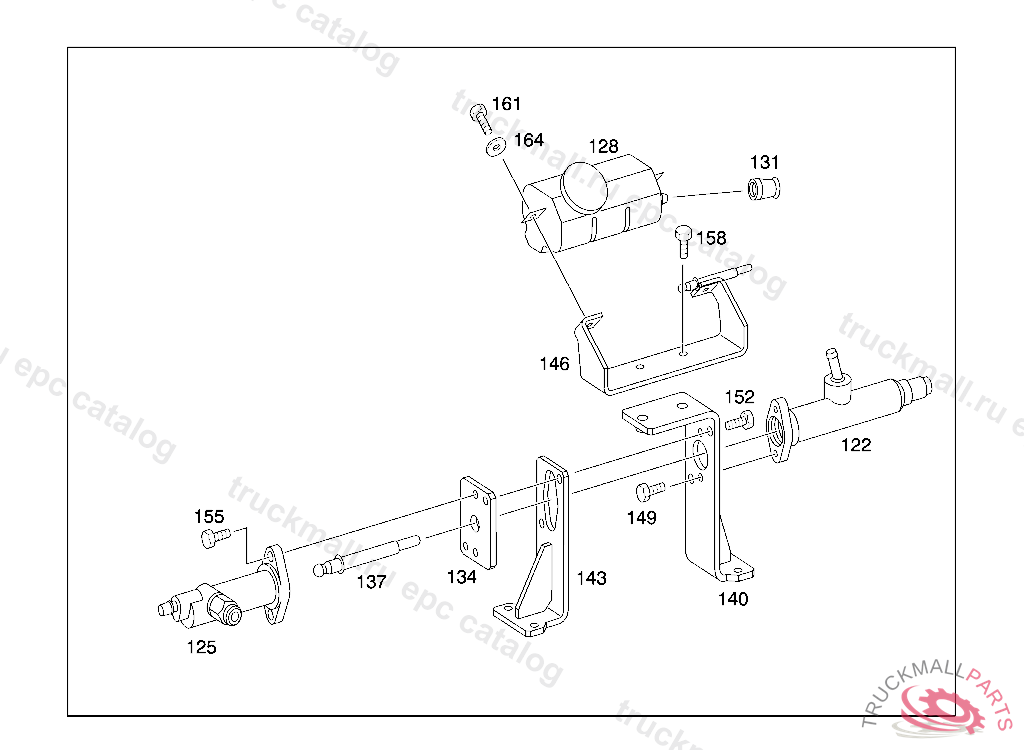

25 CLUTCH (EVOBUS) - 250 BELL HOUSING AND CLUTCH ACTUATION IL. 3

Поз.
Артикул
Описание
122
A0012959906
MASTER CYLINDER
125
A0022952407
SLAVE CYLINDER BRACKET AND INTERMEDIATE FLANGE AT BRACKET WITH CLUTCH MASTER CYLINDER
128
A0002951615
RESERVOIR RESERVOIR, 415 5 014668 416 5 000515 417 4 972023
131
A0009885435
CAP RESERVOIR DE-AERATION
134
A9422950045
FLANGE CLUTCH SLAVE CYLINDER
137
A9422950174
PIN BRACKET AND INTERMEDIATE FLANGE AT BRACKET WITH CLUTCH MASTER CYLINDER
140
A9422900233
BRACKET CLUTCH MASTER CYLINDER
143
A9422900333
BRACKET CLUTCH MASTER CYLINDER
146
A9422900433
BRACKET EXPANSION RESEVOIR MOUNTING
149
N304017006016
SCREW PUMP TO BRACKET
152
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
155
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
158
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
161
N304017006016
SCREW PUMP TO BRACKET
164
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
