Mercedes A0034460509 - Блок управления

GO 240-8/6,57-0,63 FROM PRODUCTION 1998 714.180

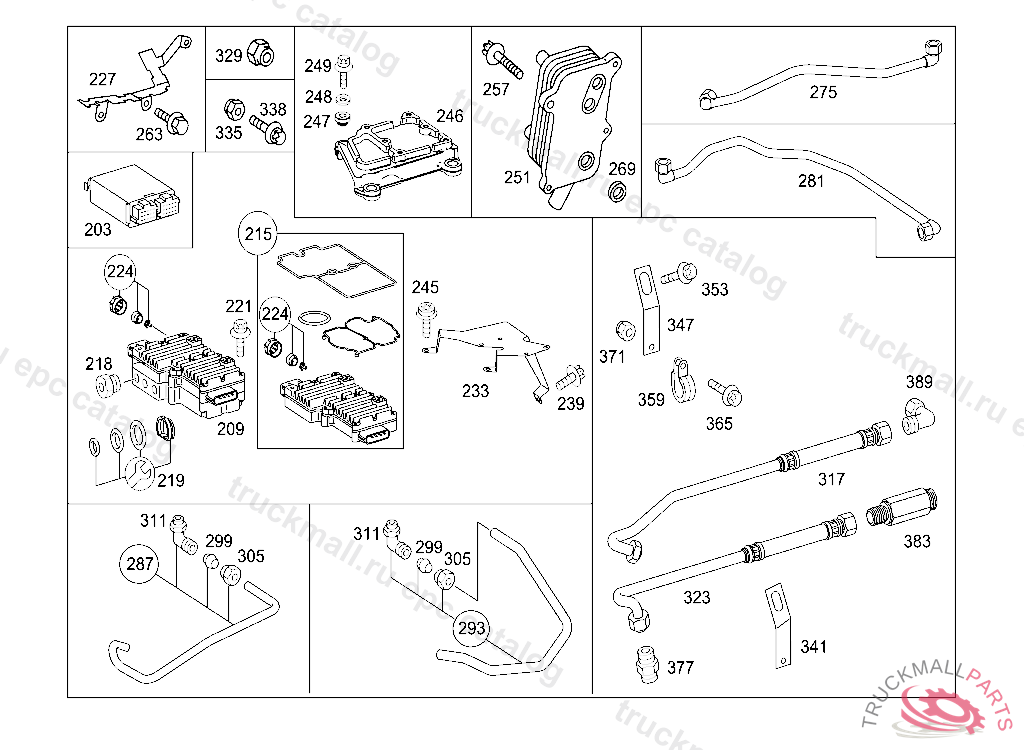

26 TRANSMISSION, SIX-SPEED (EVOBUS) - 410 ELECTRIC CABLES, ATTACHMENT PARTS IL. 4

Поз.
Артикул
Описание
209
A0034460509
CTRL. UNIT POWER SHIFTEPS
209
A0014465609
EPS ELECTRONICSEPS III
209
A0024461309
EPS ELECTRONICSEPS
209
A0024467509
CTRL. UNIT POWER SHIFTEPS
218
A0009975034
UNION SCREW PNEUMATIC CONNECTION,SUPPLY UNIT M 10, VOSS 232, SDF
219
A0149973645
REPAIR KIT O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, SDF
221
N000000000178
HEXALOBULAR BOLT SHIFTING CYLINDER TO TRANSMISSION CASE M8X130
221
N910143008010
HEXALOBULAR BOLT BRACKET TO BRACKET
224
A0002611082
TS VENT CAP EPS CONTROL UNIT
233
A3892604762
BRACKET ELECTRONICS
239
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
245
A0009903204
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
246
A6562680305
COVER ELECTRONICS
247
A0001530681
RUBBER BUFFER. RUBBER RING CONTROL MODULE ON CRANKCASE
248
N000000003250
WASHER BRACKET TO CAB REAR PANEL
249
N910143008007
SCREW , Replaced By: N910105008019
