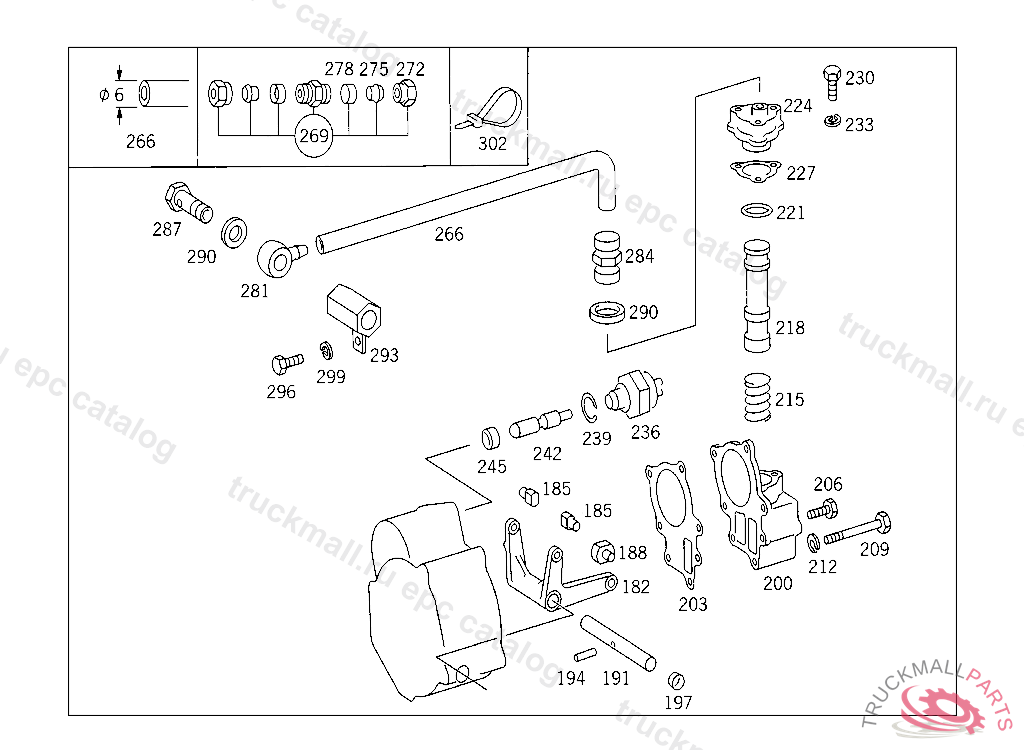

Поз.
Артикул
Описание
182
SHIFTING FORK P.T.O.
185
SLIDE SHIFTING FORK
188
SLIDE SHIFTING FORK
191
SHAFT
194
CLAMPING PIN , Replaced By: N308748006002
194
CLAMPING PIN SHIFTING FORK TO SHIFTING SHAFT 6X28 MM
197
EXPANSION PLUG ENGINE LEFT AND RIGHT SUPPORTS
200
HOUSING. CASE (SHIFT CASE)
203
GASKET SHIFT CASE TO P.T.O. HOUSING
203
GASKET COVER TO P.T.O. CASE
206
SCREW , Replaced By: N304017008021
206
SCREW PIPE CLAMP
209
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
209
SCREW , Replaced By: N304014008004
209
SCREW , Replaced By: N304014008001
212
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
215
SPRING SLIDING COLLAR
218
SHIFTING ROD SHIFT CASE
221
SEAL RING P.T.O. CONTROL
224
CYLINDER SHIFT CASE
227
GASKET SHIFTING CYLINDER TO CASE
227
GASKET , Replaced By: A3872644480
230
SCREWM 8X40
233
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
236
SWITCH BACK-UP LIGHT
239
SNAP RING P.T.O. INDICATOR ACTUATION
242
PIN P.T.O. INDICATOR ACTUATION,5163598
245
SEAL RING P.T.O. INDICATOR ACTUATION
266
PLASTIC PIPE RISING PIPE 4X6 MM
266
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
269
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
272
UNION NUT
275
SEAL CONE
275
GLAND , Replaced By: A0019901667
278
SLEEVE LEAK LINE
281
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
284
FITTING CONNECTION TO STOP LIGHT SWITCH
284
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
287
HOLLOW SCREW HEATING CONNECTION
290
SEAL RING LINE CONNECTION
293
BRACKET AT FITTING
293
BRACKET , Replaced By: A6204203686
296
SCREW CENTRAL LOCK TO CAB M 10X16
299
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
302
LOOM TIE LINE MOUNTING 280 MM
302
LOOM TIE LINE MOUNTING
