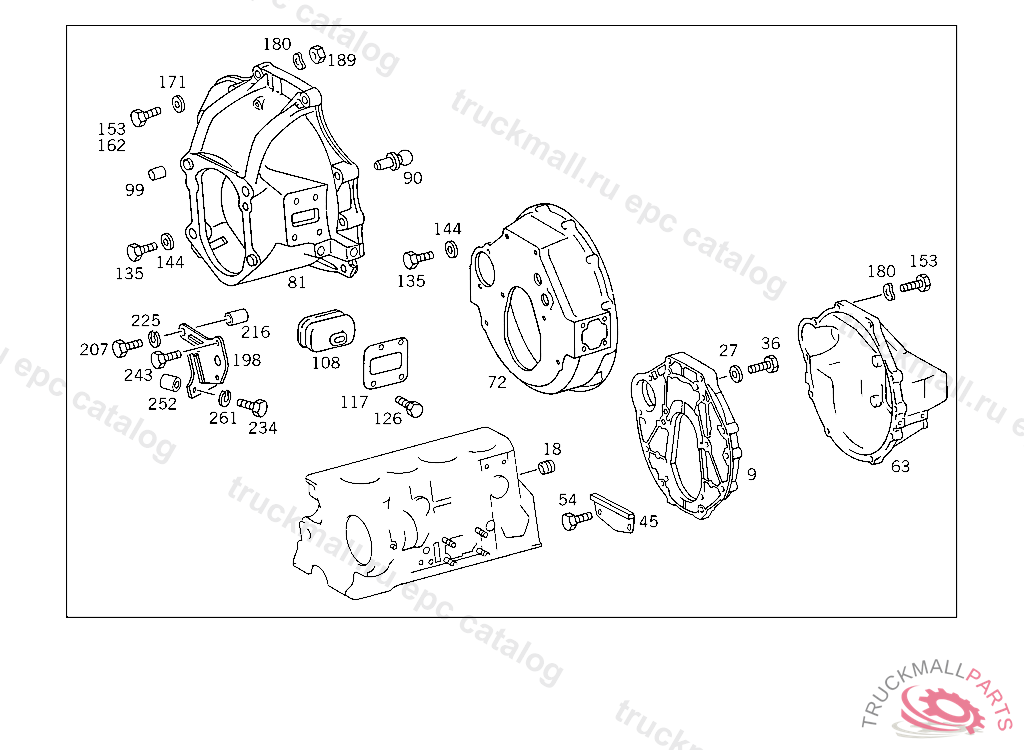

Поз.
Артикул
Описание
9
FLANGE BELL HOUSING
9
FLANGE
9
FLANGE
18
THREADED INSERT
27
WASHER , Replaced By: N000125010532
36
SCREW BRAKE CYLINDER TO BRAKE ANCHOR PLATE
45
PROTECTIVE PLATE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE: 940 10/50,20/60 197507 940 12/52,22/62 007504, Replaced By: A6152505156
45
PROTECTIVE PLATE
54
SCREW COVER PLATE TO COVER PLATE M 6 X 12
54
SCREW BRACKET TO BRACKET
63
BELL HOUSING
72
FLYWHEEL HOUSING
81
HOUSING
90
BALL PIVOT
99
CLAMPING PIN
108
BOOT
117
SEAL HOLDER
126
SCREW COVER PLATE TO COVER PLATE M 6 X 12
126
SCREW BRACKET TO BRACKET
135
SCREW BRAKE CYLINDER TO BRAKE ANCHOR PLATE
144
WASHER , Replaced By: N000125010532
153
SCREW , Replaced By: N000931010304
162
SCREW REAR EXHAUST PIPE TO MUFFLER
171
WASHER , Replaced By: N000125010532
180
SPRING WASHER STEERING COLUMN BRACKET TO CAB
189
NUT OIL COOLER TO BRACKET,TOP
198
BRACKET CLUTCH SLAVE CYLINDER
207
SCREW CLUTCH TO FLYWHEEL
216
SPACER TUBE BRACKET TO BELL HOUSING
225
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
234
SCREWM 8X40
243
SCREW PIPE CLAMP
243
SCREW , Replaced By: N304017008021
252
SPACER TUBE BRACKET TO BELL HOUSING
261
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
