Mercedes A1104920409 -

OM 616 616.962 MB ESPANA

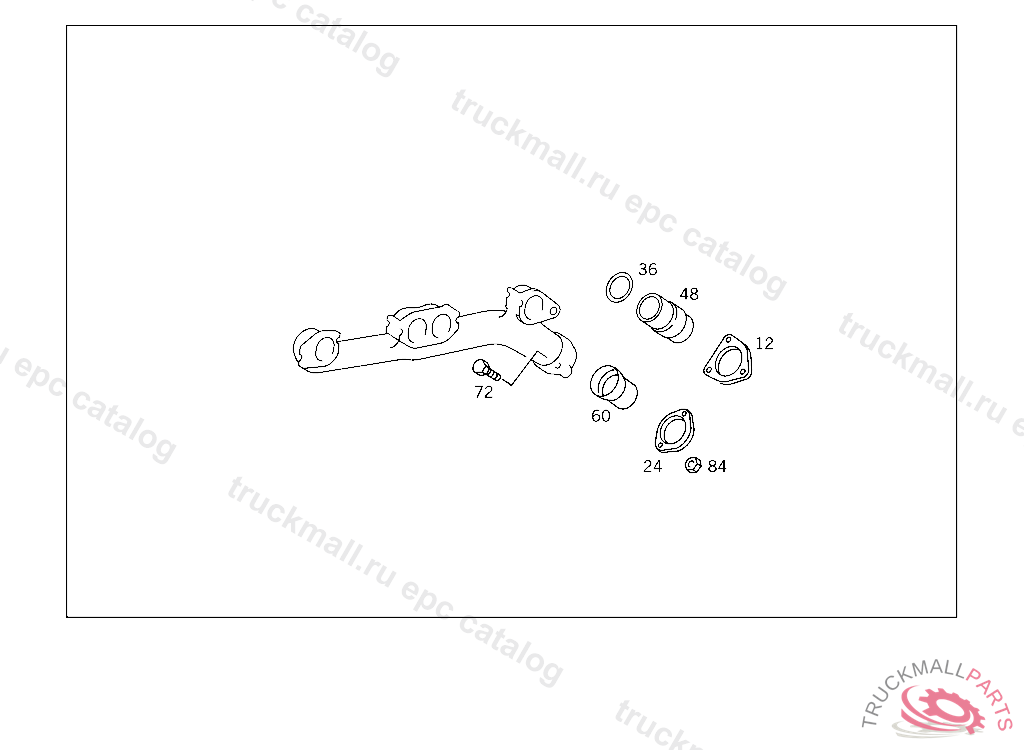

14 INTAKE AND EXHAUST MANIFOLDS - 001 EXHAUST MANIFOLD COMPANION FLANGE

Поз.
Артикул
Описание
12
A1154920345
FLANGE
12
A1814920011
FLANGE
12
A3094920013
FLANGE FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, 309.0 UP TO CHASSIS 184086,EXCEPT FOR MODEL 050 UP TO CHASSIS 192297, 309.1 UP TO CHASSIS 182065
24
A6314920045
FLANGE
36
N915035000009
SEAL RING FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, 309.0 UP TO CHASSIS 184086,EXCEPT FOR MODEL 050 UP TO CHASSIS 192297, 309.1 UP TO CHASSIS 182065
48
A1154920109
CONNECTOR
60
A1234920309
CONNECTOR
72
N000931008091
HEX. HEAD. SCREW REAR COVER TO TRANSMISSION,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
72
N000931008217
SCREW
84
N999901008005
NUT , Replaced By: A0009903250
999
A1104920409
CONNECTOR
999
A1154920409
CONNECTOR
999
N000125008413
WASHER , Replaced By: N000125008443
999
N915035000023
SEAL RING
