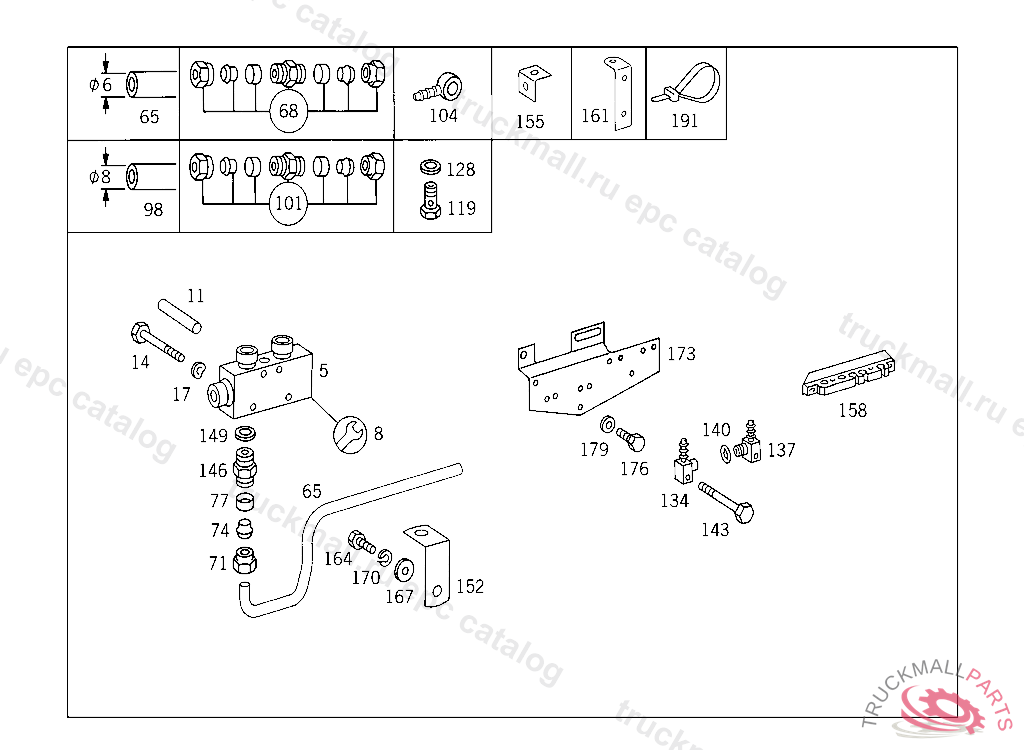

Поз.
Артикул
Описание
5
VALVE 5/2-WAY PW A 001 260 26 57
5
VALVE 5/2-WAY
8
REPAIR KIT 5/2-WAY VALVE TO 001 260 26 57
11
PIN VALVE TO SHIFT CASE
14
SCREW TWO-WAY VALVE TO CONTROL VALVE,4 719029
17
SPRING WASHER ALTERNATOR CONNECTION D+
65
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
65
PLASTIC PIPE RISING PIPE 4X6 MM
68
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
71
UNION NUT
74
GLAND , Replaced By: A0019901667
77
SLEEVE LINE CONNECTION
77
SLEEVE LEAK LINE
98
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
98
PLASTIC PIPE AERATION, ORDER BY THE METER
101
FITTING (PARTS KIT),LINE RUPTURE
119
HOLLOW SCREW LINE CONNECTION
128
SEAL RING LINE CONNECTION
134
CONNECTOR
137
CONNECTOR
140
SEAL RING CONNECTOR 11.8X2 MM
140
SEAL RING , Replaced By: A0229973948
143
SCREW , Replaced By: N304017006012
143
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
146
FITTING 3/2-WAY VALVE,CONNECTION: "30"
146
FITTING , Replaced By: A0039972172
146
FITTINGTO 003 131 59 01
149
SEAL RING PNEUMATIC VALVE
155
BRACKET CHARGING CABLE TO ENGINE
161
BRACKET , Replaced By: A6202571140
164
SCREW , Replaced By: N304017008016
164
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
164
BOLT. SCREW BRACKET TO TRANSMISSION CASE
167
WASHER25MM
170
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
173
BRACKET PNEUMATIC LINE
176
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
179
WASHER , Replaced By: N000125010532
179
WASHER RADIATOR TO RUBBER MOUNTING
191
LOOM TIE LINE MOUNTING
191
LOOM TIE LINE MOUNTING 280 MM
