Поз.
Артикул
Описание

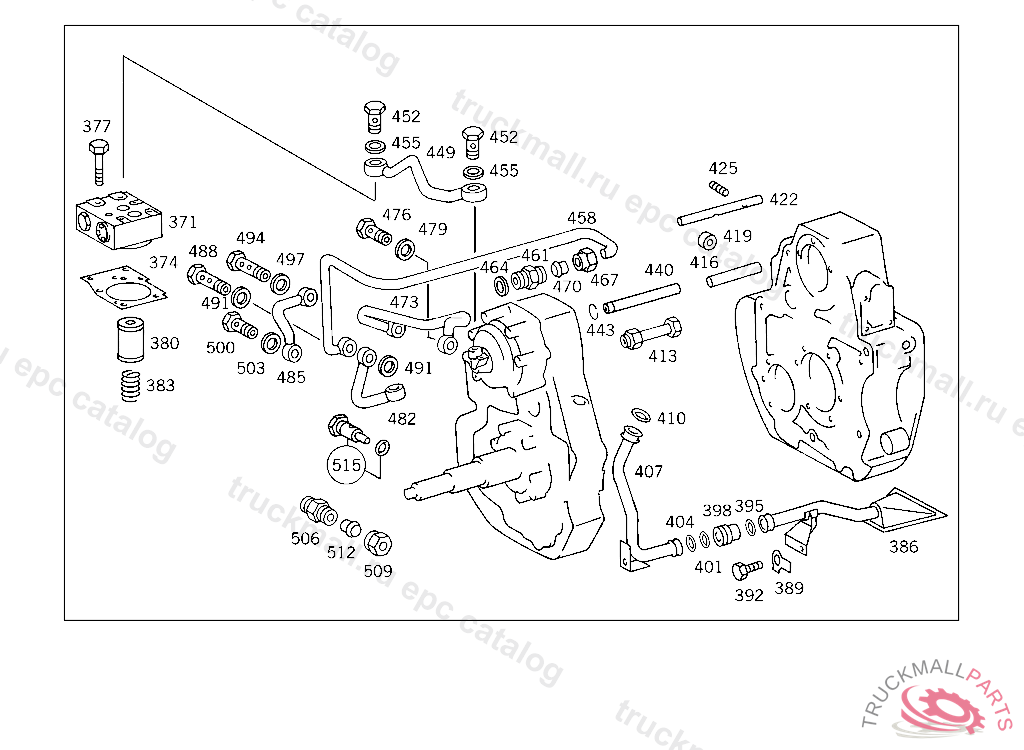

371
VALVE , Replaced By: A0002641789
371
VALVE (PRESSURE CONTROL VALVE)
374
GASKET , Replaced By: A3872646280
374
GASKET INTERMEDIATE FLANGE TO P.T.O. CASE
377
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
377
SCREW , Replaced By: N304014008001
380
STRAINER FILTER
383
SPRING FILTER
386
PIPE OIL SUCTION
386
PIPE OIL SUCTION
389
LOCK PLATE OIL LINE
392
SCREW PIPE CLAMP
392
SCREW , Replaced By: N304017008021
395
SEAL RING CONNECTOR
398
CONNECTOR INTAKE PIPE
401
SEAL RING TWIN GEAR
404
SEAL RING INTAKE PIPE
407
PIPE INTAKE PIPE
410
SEAL RING INTAKE PIPE
413
PIPE CONNECTION OF OIL LINES
416
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
419
PIN INTAKE PIPE
422
OIL PIPE OIL DISTRIBUTION
425
HEADLESS SETSCREW PLANET GEAR, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
440
PIPE OIL DISTRIBUTION
443
SNAP RING OIL PIPE
449
PIPE INTERMEDIATE FLANGE TO P.T.O. CASE
452
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
455
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
458
PIPE P.T.O. HOUSING
461
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
464
SEAL RING
467
NUT. UNION NUT LINE CONNECTION
470
CUTTING RING. GLAND LINE CONNECTION
473
PIPE , Replaced By: A6552602185
473
PIPE INTERMEDIATE FLANGE TO P.T.O. CASE
476
HOLLOW SCREW HAND PUMP,K 169122
476
HOLLOW SCREW FUEL LINE TO FEED PUMP
476
HOLLOW SCREW , Replaced By: N915036010108
479
SEAL RING
479
SEALING RING. SEAL RING ENGINE BREATHING
482
PIPE P.T.O. HOUSING
485
PIPE INTERMEDIATE FLANGE TO P.T.O. CASE
488
HOLLOW SCREW OIL LINE TO CASE
491
SEAL RING
494
HOLLOW SCREW OIL LINE TO CASE
497
SEAL RING
500
HOLLOW SCREW HAND PUMP,K 169122
503
SEAL RING
506
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
509
NUT. UNION NUT LINE CONNECTION
512
CUTTING RING. GLAND LINE CONNECTION
515
VALVE CONTROL VALVE
999
SEAL RING
999
SEAL RING CASE COVER
999
SEAL RING
999
COVER
999
TRANSMISSION CASE COVER TRANSMISSION CASE COVER,CLUTCH SIDE
999
TRANSMISSION CASE COVER
999
TRANSMISSION CASE COVER
999
HOUSING P.T.O.
999
SEAL RING DRIVE SHAFT
999
ROD
999
ROD
999
ROD
999
NUT MULTI-DISC COUPLING
999
SEAL RING TEMPERATURE GAUGE SENDER UNIT
