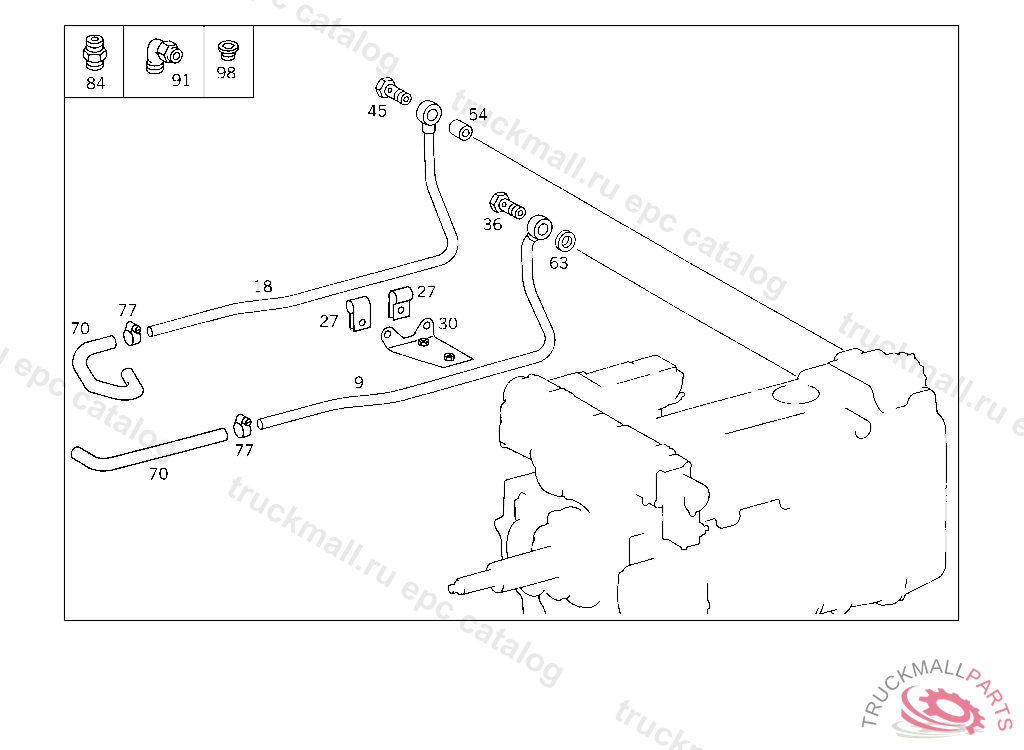

Поз.
Артикул
Описание
9
PIPE TRANSMISSION OIL COOLING SYSTEM
9
PIPE FROM TRANSMISSION TO OIL COOLER
9
OIL PIPE FROM TRANSMISSION TO OIL COOLER
9
PIPE FROM TRANSMISSION TO OIL COOLER
9
PIPE OIL LINE TO TRANSMISSION
9
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
9
PIPE , Replaced By: A6552604885
9
PIPE , Replaced By: A6522606585
9
PIPE , Replaced By: A6552605285, +001A6552603485, +001A3899970035, +002A3899970672
9
PIPE , Replaced By: A0002610283, +001N003861010009, +001N915017010105
9
PIPE , Replaced By: A6522601985
9
PIPE , Replaced By: A6552605585
18
PIPE FROM OIL COOLER TO TRANSMISSION
18
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
18
PIPE , Replaced By: A6522602985
18
PIPE , Replaced By: A6552604985
18
PIPE , Replaced By: A6552603485
18
PIPE , Replaced By: A0002610283, +001N003861010009, +001N915017010105
18
OIL PIPE FROM OIL COOLER TO TRANSMISSION
18
PIPE FEED, OIL COOLER,K 131866
18
PIPE TRANSMISSION OIL COOLING SYSTEM
18
PIPE OIL LINE COMING FROM OIL COOLER TO TRANSMISSION
27
CLAMP LINE MOUNTING
27
CLAMP FEED LINE TO THERMOSTAT
30
BRACKET OIL LINE TO TRANSMISSION
30
BRACKET TRANSMISSION
30
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 315932, Replaced By: A3892602862
30
BRACKET OIL LINE TO TRANSMISSION
36
HOLLOW SCREW OIL LINE TO TRANSMISSION
45
HOLLOW SCREW OIL LINE TO TRANSMISSION
54
BUSHING , Replaced By: A3892610650
54
BUSHING BRACKET MOUNTING
63
GASKET OIL LINE TO TRANSMISSION
70
HOSE FROM TRANSMISSION TO ENGINE,5 746785
70
HOSE OIL COOLER CONNECTION 450 MM, TO BE ADAPTED DURING ASSEMBLYK 131865
70
HOSE LINE CONNECTIONS 350 MM, TO BE ADAPTED DURING ASSEMBLY
70
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 968464, Replaced By: A6559972282
77
CLAMP , Replaced By: N000000000667
77
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
77
CLAMP HOSE TO FITTING AND TO OIL TANK
84
FITTING OIL LINE CONNECTION
91
FITTING OIL LINE CONNECTION
91
FITTING , Replaced By: N003952015100
98
SCREW PLUG FUEL DISCHARGE
999
CLAMP BRAKE HOSE BRACKET
999
SEAL RING ON OIL PUMP HOUSING
999
FITTING LINE CONNECTION TO TRANSMISSION
999
SCREWM 6X16
999
SCREW BEARING BRACKET TO TRANSMISSION
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
THREADED UNION OIL LINE CONNECTION TO OIL COOLER
999
OIL PIPE (OIL LINE),FROM SEPARATION POINT TO RADIATOR
999
OIL PIPE (OIL LINE),FROM SEPARATION POINT TO RADIATOR
999
OIL PIPE , Replaced By: A0002610283, +002N003861010009, +002N915017010105
999
OIL PIPE , Replaced By: A0002610283, +002N003861010009, +002N915017010105
999
BRACKET AT CROSS MEMBER
999
BRACKET AT ENGINE, FROM IDENT NO. 5 623090, SEE STANDARD MICROFICHEK 131865
999
BRACKET FUEL LINE TO BELL HOUSING
999
ANGLE LINE MOUNTING
