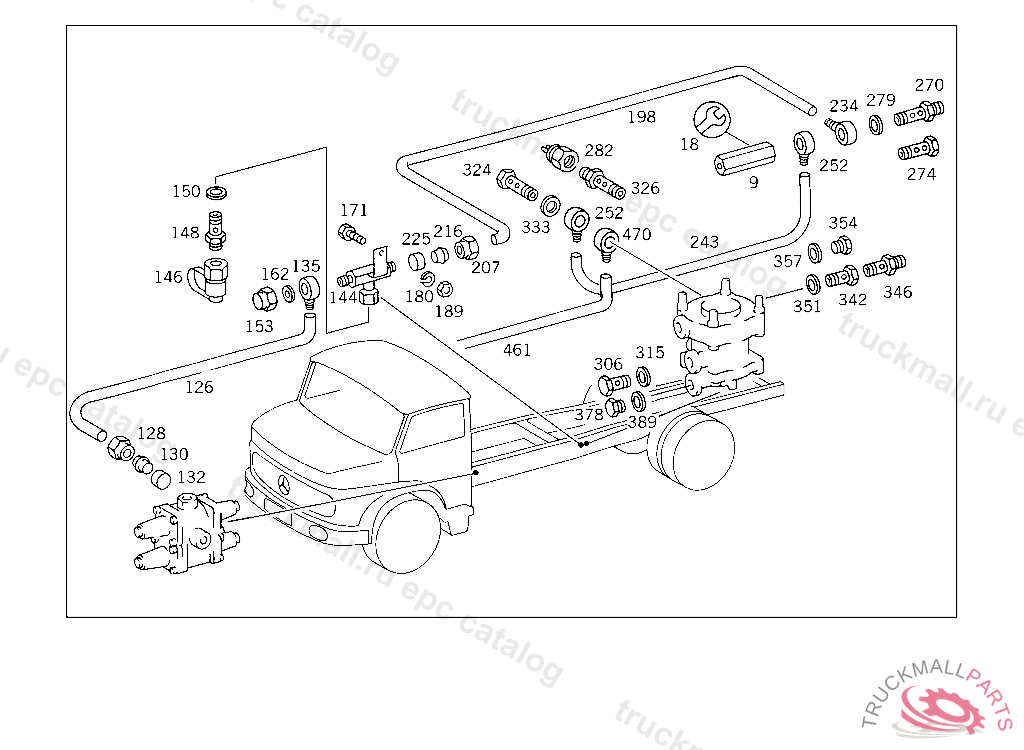

Поз.
Артикул
Описание
9
VALVE (CHECK VALVE)
9
VALVE (CHECK VALVE)
18
REPAIR KITWABCO
126
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
126
HOSE , Replaced By: A0009872827
128
UNION NUT LINE CONNECTION, Replaced By: N000000006239
130
GLAND , Replaced By: A0019901967
132
SLEEVE LINE CONNECTION
135
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
135
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
144
T-FITTING
146
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
146
TEST CONNECTION
148
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "12"
150
SEAL RINGTO 006 997 00 72
153
LOCK NUT AT T-FITTING
162
SEAL RING
171
SCREWM 8X20
171
SCREWM 8X20
180
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
180
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
189
NUT , Replaced By: N304032008006
198
HOSE , Replaced By: A0009872827
198
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
207
UNION NUT LINE CONNECTION, Replaced By: N000000006239
216
GLAND , Replaced By: A0019901967
225
SLEEVE LINE CONNECTION
234
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
243
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
243
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
243
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
243
HOSE , Replaced By: A0009872827
252
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
252
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
270
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "12"
270
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
270
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
274
HOLLOW SCREW LINE TO OIL RADIATOR
274
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
279
SEAL RINGTO 006 997 00 72
282
SWITCH SUPPLY PRESSURE,5 966147
282
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
306
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
306
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
306
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
306
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
315
SEAL RINGTO 006 997 00 72
315
SEAL RINGTO 006 997 00 72
315
SEAL RINGTO 006 997 00 72
315
SEAL RINGTO 006 997 00 72
324
HOLLOW SCREW LINE TO OIL RADIATOR
324
HOLLOW SCREW LINE TO OIL RADIATOR
326
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
333
SEAL RINGTO 006 997 00 72
342
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
342
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
342
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
346
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "12"
351
SEAL RINGTO 006 997 00 72
351
SEAL RINGTO 006 997 00 72
354
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
357
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
378
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
389
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
461
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
461
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
461
HOSE , Replaced By: A0009872827
470
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
470
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
