Mercedes
TRANSMISSION
G 240-16/11,7-0,69
715.261
26 TRANSMISSION

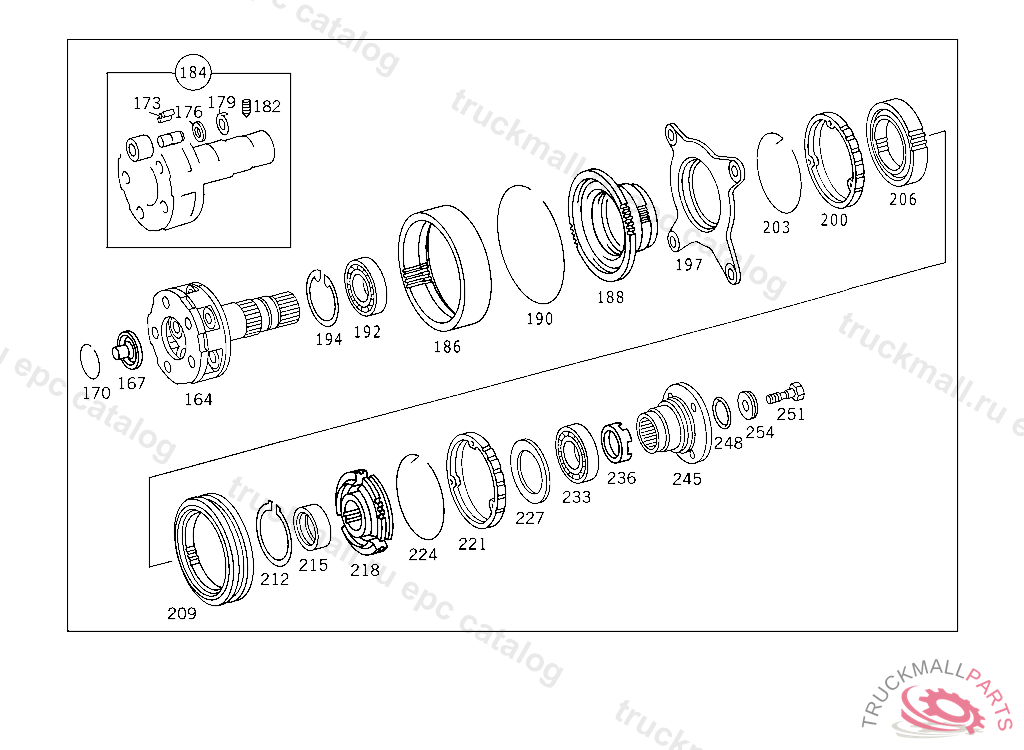

150 TRANSMISSION SHAFTS AND GEARS IL. 3

Mercedes A3892621623 - Муфта синхронизатора планетарной передачи КПП MB G155/180/200/210/211/230/240/260, GO210

G 240-16/11,7-0,69 715.261

26 TRANSMISSION - 150 TRANSMISSION SHAFTS AND GEARS IL. 3

Поз.
Артикул
Описание
164
A9462603561
PLANETARY CARRIER PLANETARY GEAR CLUSTER,0350832
164
A9462603661
PLANETARY CARRIER PLANETARY GEAR CLUSTER
164
A3892604661
PLANETARY CARRIER , FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 489639, Replaced By: A3892608661
164
A3892605261
PLANETARY CARRIER , FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 489639, Replaced By: A3892608761
164
A3892608661
PLANETARY CARRIER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9452604461, +001A0079813325
164
A3892608761
PLANETARY CARRIER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9452604561, +001A0079813325
164
A9452604461
PLANETARY CARRIER ,0350831, Replaced By: A9462603661, +001A9452620762, +001N910105020025
164
A9452604561
PLANETARY CARRIER , Replaced By: A9462603561, +001A9452620762, +001N910105020025
167
A3892694734
OIL LINE PLANETARY CARRIER, Replaced By: A9452690834
167
A9452690834
OIL LINE PLANETARY CARRIER
170
N000472060000
LOCK RING PLANETARY CARRIER
173
A0009814186
ROLLER (BEARING NEEDLES)
173
A0009814386
ROLLER (BEARING NEEDLES)
176
A3892626462
GUARD PLATE PLANETARY CARRIER
176
A3892620162
GUARD PLATE PLANETARY CARRIER
176
A3892620562
GUARD PLATE PLANETARY CARRIER
179
A3892621362
GUARD PLATE PLANETARY CARRIER
179
A3892621162
GUARD PLATE PLANETARY CARRIER
179
A3892621462
GUARD PLATE PLANETARY CARRIER
179
A9452620162
GUARD PLATE PLANETARY CARRIER
182
N000914006109
THREADED PIN PLANETARY CARRIER
184
A6552600197
GEAR SET PARTS KIT, Replaced By: A9462600097
184
A9462600097
TS PLANET GEAR PARTS KIT
186
A3892620708
ANNULUS PLANETARY GEAR CLUSTER 64 MM
186
A9452620208
ANNULUS PLANETARY GEAR CLUSTER
188
A3892621425
DISC SUPPORT ANNULUS,FRONT, Replaced By: A9302620125
188
A9302620125
WHEEL CARRIER ANNULUS,FRONT
190
A3892620773
LOCK ANNULUS,FRONT
192
A0049819425
BALL BEARING ANNULUS,FRONT
192
A0089815325
BALL BEARING ANNULUS,FRONT
192
A0089811525
BALL BEARING ANNULUS,FRONT
192
A0049818825
BALL BEARING ANNULUS,FRONT
192
A0089811325
BALL BEARING ANNULUS,FRONT
192
A0049818725
BALL BEARING ANNULUS,FRONT
194
N000472130000
LOCK RING FRONT WHEEL HUB TO STEERING KNUCKLE
197
A3892602036
FOLLOWER RING ANNULUS,201818
200
A3892620037
SYNCHRONIZER CONE , Replaced By: A3892620537
200
A3892620537
SYNCHRONIZER CONE , Replaced By: A9452600850, +001A9452622623
200
A9452600850
SYNCHRONIZER CONE ANNULUS
203
A3892620293
SPRING (HOLLOW SHAFT)
206
A3892624935
SYNCHRONIZER BODY PLANETARY GEAR CLUSTER SHIFT
206
A3892622035
SYNCHRONIZER BODY PLANETARY GEAR CLUSTER SHIFT
209
A3892621623
SLIDING COLLAR , Replaced By: A3892623623
209
A3892623823
SLIDING COLLAR , Replaced By: A9452620823
209
A9452620823
SLIDING COLLAR , Replaced By: A9452622623, +002A9452600850
209
A9452622623
SLIDING COLLAR , Replaced By: A9452626623
209
A9452626623
SLIDING COLLAR PLANETARY GEAR CLUSTER SHIFT
209
A9452626923
SLIDING COLLAR PLANETARY GEAR CLUSTER SHIFT
212
N000471120000
LOCK RING ANNULUS
215
A3892620251
SPACER RING PLANETARY CARRIER
218
A9452621234
SYNCHRONIZER RING PLANETARY CARRIER,380571
218
A3892624434
SYNCHRONIZER RING ,380570, Replaced By: A3892629234, +001A6562605611, +002A9452651474, +001A3892693801
218
A3892629234
SYNCHRONIZER RING PLANETARY CARRIER,366886
221
A3892620037
SYNCHRONIZER CONE , Replaced By: A3892620537
221
A3892620537
SYNCHRONIZER CONE , Replaced By: A9452600850, +001A9452622623
221
A9452600850
SYNCHRONIZER CONE ANNULUS
224
A3892620293
SPRING (HOLLOW SHAFT)
227
A3892627754
SPACER WASHER HOUSING COVER, AS REQUIRED 1.40MM
227
A3892625052
SPACER WASHER HOUSING COVER, AS REQUIRED 0.40MM
227
A3892624752
SPACER WASHER HOUSING COVER, AS REQUIRED 0.10MM
227
A3892624952
SPACER WASHER HOUSING COVER, AS REQUIRED 0.20MM
227
A3892627854
SPACER WASHER OUTPUT FLANGE
227
A3892624852
SPACER WASHER HOUSING COVER, AS REQUIRED 0.15MM
233
A0079817425
BALL BEARING REAR PLANETARY CARRIER
233
A0049818925
BALL BEARING REAR PLANETARY CARRIER
233
A0049819325
BALL BEARING REAR PLANETARY CARRIER
233
A0079813325
BALL BEARING , Replaced By: A0089813025
233
A0079813725
BALL BEARING , Replaced By: A0089813025
233
A0079814025
BALL BEARING , Replaced By: A0089813025
233
A0079817125
BALL BEARING , Replaced By: A0089813025
233
A0049818525
BALL BEARING REAR PLANETARY CARRIER
233
A0089815225
BALL BEARING REAR PLANETARY CARRIER
233
A0089813025
BALL BEARING REAR PLANETARY CARRIER
236
A9302620028
PULSE STAR (PULSE PLATE),P.T.O.SHAFT SPEED
236
A9452620628
PULSE STAR (PULSE PLATE),P.T.O.SHAFT SPEED
236
A9452620528
PULSE STAR (PULSE PLATE),P.T.O.SHAFT SPEED
236
A3892600150
BUSHING
236
A3892600350
BUSHING , Replaced By: A9452620628
236
A9452620228
PULSE STAR ,0364000, Replaced By: A9302620028, +001A0239971647
245
A9452620045
FLANGE180 MM,00080587
245
A3892620445
FLANGE (OUTPUT FLANGE) 180MM
248
A0149975148
SEAL RING COUPLING FLANGE TO TRANSMISSION
251
A9459900019
SCREW FLANGE TO PLANETARY CARRIER
251
N000000005728
SCREW. HEXAGON HEAD BOLT CABLE WINCH M20X1.5X80
251
A3899900219
SCREW , Replaced By: A3899902019
251
A3899902019
SCREW , Replaced By: A9459900019
251
N910105020025
HEXAGON HEAD BOLT CABLE WINCH M20X1.5X80, Replaced By: N000000005728
254
A9452620062
THRUST WASHER , Replaced By: A3892620362
254
A9452620762
THRUST WASHER FLANGE TO PLANETARY CARRIER
254
A3892620362
THRUST WASHER FLANGE TO PLANETARY CARRIER
999
A3892626934
SYNCHRONIZER RING CONSTANT GEAR NO.2
999
N000908042001
SCREW PLUG BREATHER LINE TO CYLINDER HEAD COVER M42X1.5
999
N007603042100
SEAL RING BREATHER LINE TO CYLINDER HEAD COVER
999
N007603042101
SEAL RING OIL COOLER CONNECTION
