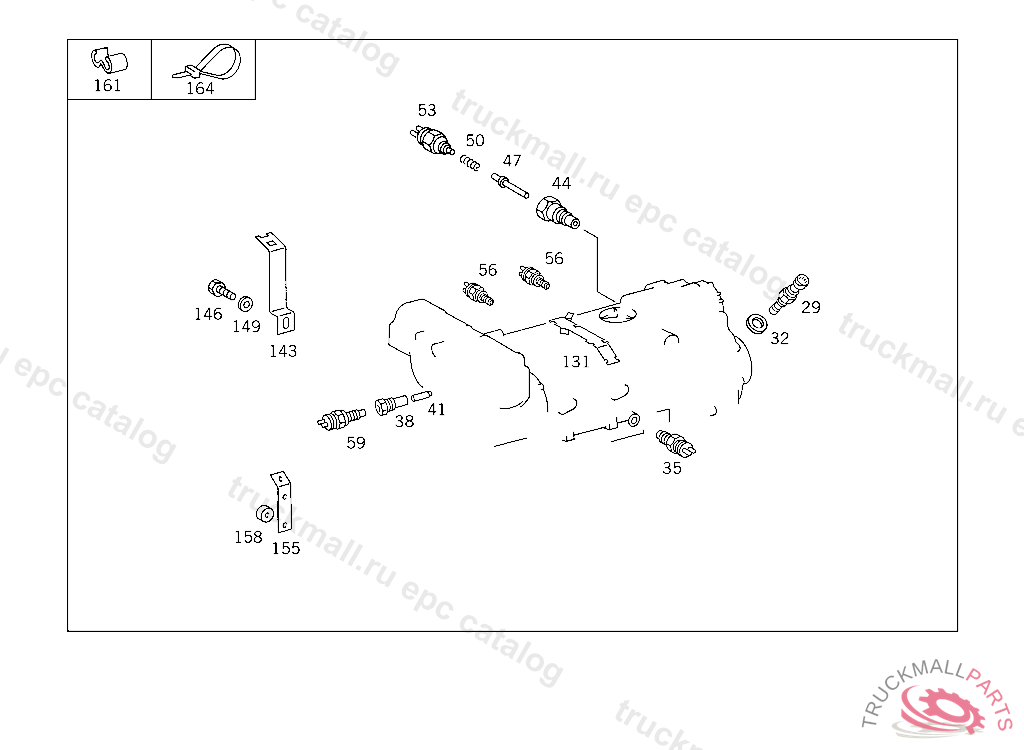

Поз.
Артикул
Описание
29
SENDER UNIT ACTUATION OF ELECTRONIC SPEEDOMETER 63.5MM
32
FITTED WASHER AS REQUIRED 0.5 MM
32
FITTED WASHER AS REQUIRED 1.2 MM
32
FITTED WASHER AS REQUIRED 1.4 MM
32
FITTED WASHER AS REQUIRED 2.0 MM
32
FITTED WASHER
32
FITTED WASHER AS REQUIRED 1.6 MM
35
PART NAME MISSING. SENDER UNIT (INDUCTIVE SENDER UNIT)
38
THREADED BUSHING NEUTRAL POSITION INDICATOR ACTUATION
41
PIN NEUTRAL POSITION INDICATOR ACTUATION
44
THREADED BUSHING PRESSURE SWITCH, TO BE ADAPTED DURING ASSEMBLY
44
THREADED BUSHING , Replaced By: A9452610031, +001A0015455709
47
PIN ADDITIONAL GEAR GROUP INDICATOR ACTUATION,207374
50
SPRING ADDITIONAL GEAR GROUP INDICATOR ACTUATION,207374 NOT USED
53
SWITCH
53
SWITCH , Replaced By: A0015455709
56
SWITCH BACK-UP LIGHT M20X1,5
56
SWITCH , Replaced By: A0015452909
56
SWITCH , Replaced By: A0015451309
56
SWITCH , Replaced By: A0015451209
59
SWITCH , Replaced By: A0015452709
59
SWITCH , Replaced By: A0005459009
59
SWITCH TORQUE REDUCER
131
BRACKET BRACKET TO TRANSMISSION CASE,TOP,127843
143
BRACKET BRACKET TO TRANSMISSION CASE,120531
146
SCREW BRACKET TO SIDE MEMBER
149
WASHER RADIATOR TO RUBBER MOUNTING
149
WASHER , Replaced By: N000125010532
155
BRACKET , Replaced By: A3184923441
155
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
158
WASHER25MM
161
CLAMP
164
LOOM TIE LINE MOUNTING
164
LOOM TIE LINE MOUNTING 280 MM
999
REPAIR KIT 5/2-WAY VALVE TO 001 260 20 57
