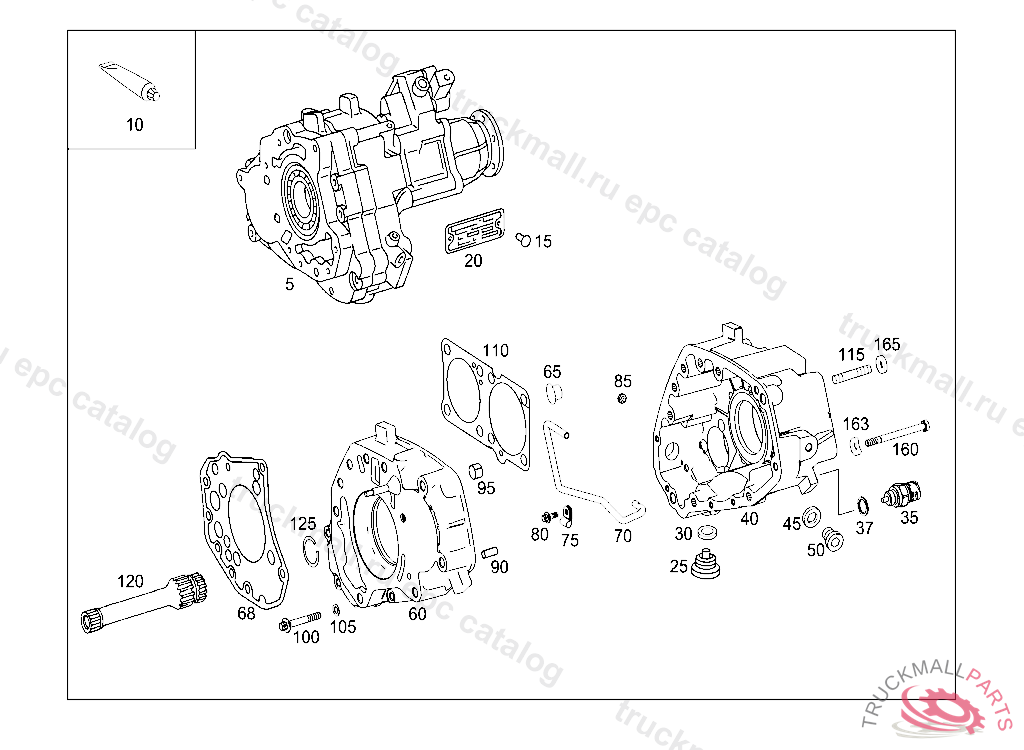

Поз.
Артикул
Описание
5
POWER TAKE-OFF , DETERMINE VARIANT NUMBER FROM VEDOC
10
MULTI-PURPOSE GREASE
10
SEALANT CASE UPPER PART TO CASE LOWER PART LOCTITE 50ML
10
MULTI-PURPOSE PASTE
10
CLEANER
15
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
20
TYPE PLATE HOUSING,TOP
25
SCREW PLUG OIL DRAIN
30
SEAL RING OIL FILLING AND OIL DRAIN
35
TAPPET SWITCH POWER TAKE-OFF UNIT CHECK (BAYONET TERMINAL)
35
SWITCH P.T.O. CONTROL
37
SEAL RING ON OIL PUMP HOUSING
40
HOUSING UPPER PART
40
HOUSING UPPER PART
45
SCREW PLUG FRONT COVER
50
SEAL RINGTO 001 431 72 14
60
HOUSING LOWER PART
60
HOUSING LOWER PART
60
HOUSING LOWER PART
60
HOUSING LOWER PART
60
HOUSING LOWER PART
65
EXPANSION PLUG HOUSING,BOTTOM
68
GASKET P.T.O. TO TRANSMISSION
70
OIL PIPE OIL LINE TO TRANSMISSION
75
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
80
HEXALOBULAR BOLT SPEED SENSOR TO STEERING KNUCKLE LEFT M6X16
85
BALL P.T.O. SHAFT
90
CYLINDRICAL PIN TRANSMISSION CASE TO TRANSMISSION CASE M6X20
95
BUSHING TRANSMISSION CASE TO TRANSMISSION CASE
100
SCREWM 8X40
100
SCREW TRANSMISSION CASE TO TRANSMISSION CASE M 8X95
100
HEXALOBULAR BOLT BRACKET AND DISTRIBUTOR TO REAR AXLE I M 10X55
100
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
100
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
100
SCREW VALVE TO BRACKET M 8X55
100
SCREW , Replaced By: N000931010304
100
SCREW 3/2-WAY VALVE TO BRACKET
100
SCREW RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE TO HXB 373 610 09 30,
100
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
105
WASHER TRANSMISSION CASE TO TRANSMISSION CASE
105
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
110
GASKET CASE UPPER PART TO CASE LOWER PART
110
GASKET COVER TO P.T.O. CASE
115
STUD HOUSING,TOP
115
THREADED PIN HOUSING REAR M10X16
115
STUD INTERMEDIATE FLANGE
120
INTERMEDIATE SHAFT LESS RETARDER
120
INTERMEDIATE SHAFT WITH RETARDER
125
SNAP RING INTERMEDIATE SHAFT
160
HEXAGON HEAD BOLT P.T.O. TO TRANSMISSION M10X150
160
HEXALOBULAR BOLT P.T.O. TO TRANSMISSION M10X260
160
HEXALOBULAR BOLTM10X170
160
HEXALOBULAR BOLT P.T.O. TO TRANSMISSION M10X90
163
GASKET P.T.O. TO TRANSMISSION
165
WASHER P.T.O. TO TRANSMISSION
165
WASHER VIBRATION ABSORBER TO BRACKET
