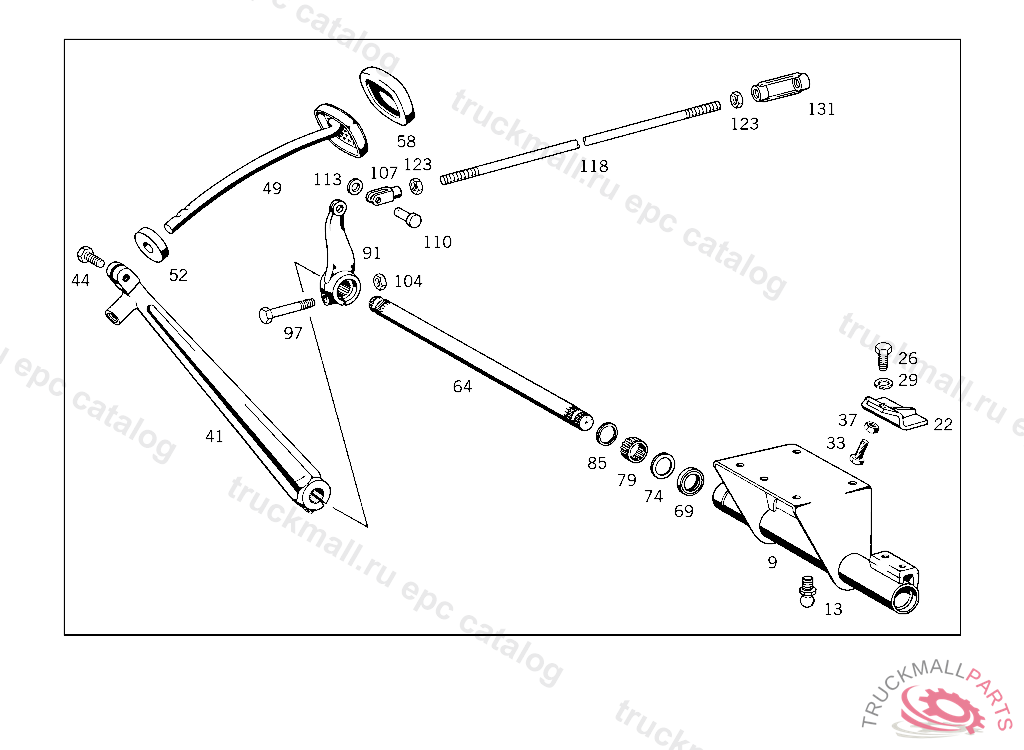

Поз.
Артикул
Описание
9
BEARING BRACKET CLUTCH PEDAL
9
BEARING BRACKET CLUTCH PEDAL
13
GREASE NIPPLE PROTECTIVE TUBE
22
STOP CLUTCH PEDAL
22
STOP CLUTCH PEDAL
26
SCREW BRACKET TO SIDE MEMBER
29
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
33
SCREW END PIECE TO EXHAUST PIPE M 10X25
37
NUT BRACKET TO SUPPORT AND TO END PIECE
41
PEDAL CLUTCH PEDAL TO SHAFT
41
PEDAL CLUTCH PEDAL TO SHAFT, UP TO CHASSIS 005107
41
PEDAL CLUTCH PEDAL TO SHAFT, FROM CHASSIS 005108
44
SCREW SUPPORT TO CROSS MEMBER M 10X28
49
CLAMP CLUTCH PEDAL, FROM CHASSIS 005108
49
CLAMP CLUTCH PEDAL, UP TO CHASSIS 005107
52
SEAL RING CLUTCH PEDAL
58
PAD BRAKE AND CLUTCH LEVERS
64
SHAFT CLUTCH PEDAL
64
SHAFT CLUTCH PEDAL
69
SEAL RING SHIFTING SHAFT
74
WASHER PEDAL BEARING
79
CAGE PEDAL BEARING
85
WASHER PEDAL BEARING
91
LEVER CLUTCH LEVER TO PEDAL SHAFT
97
SCREW VIBRATION ABSORBER TO SHIFT LEVER M 10X52
104
NUT BRACKET TO SUPPORT AND TO END PIECE
107
YOKE OPERATING ROD
110
PIN
113
WASHER BRACKET TO CROSS MEMBER
118
123
NUT , Replaced By: N304032008006
131
TURNBUCKLE (INTERMEDIATE LEVER),HAND BRAKE LINKAGE
999
999
SCREW CLUTCH PEDAL RELEASE SPRING
999
999
999
999
999
999
999
999
BUSHING CLUTCH OPERATION
999
999
999
999
BUSHING , Replaced By: A3572680150
999
BUSHING MANUAL CONTROL,D 249954
999
WASHER PEDAL BEARING
999
PIVOT PIN TO INTERMEDIATE LEVER II
999
999
BUSHING SHIFTING TUBE
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
NUT , Replaced By: N304035008001
999
LOCK RING
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
999
SCREW RIGHT ANTINOISE CAPSULE TO CAB CONSOLE,5 505597
999
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT
999
999
999
999
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
