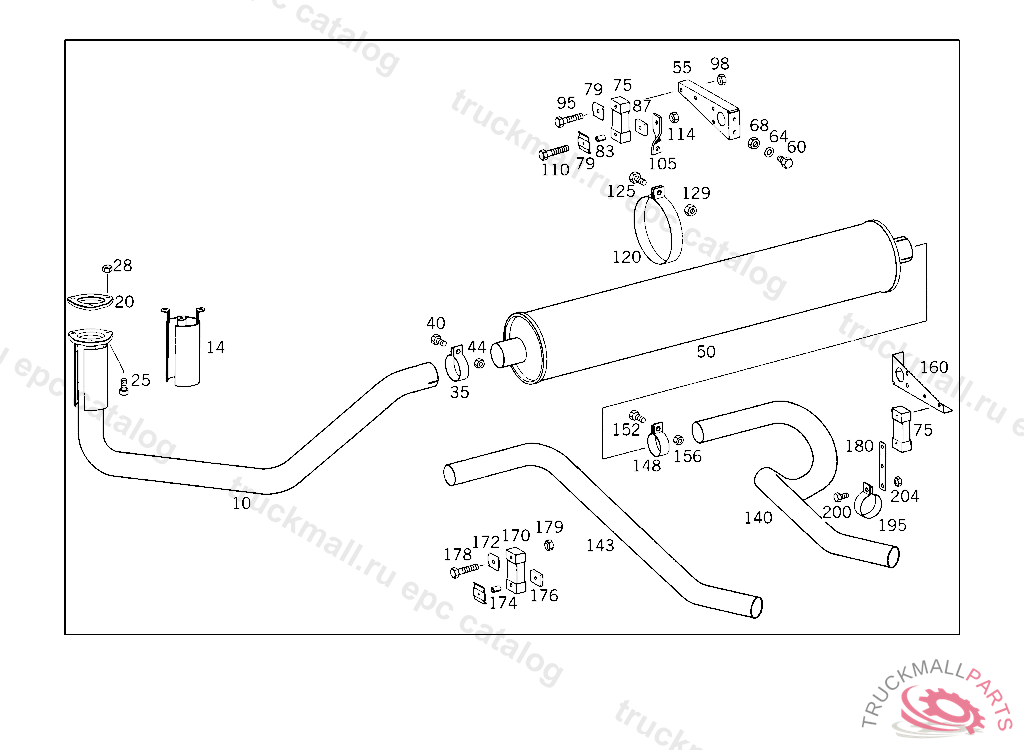

Поз.
Артикул
Описание
10
EXHAUST PIPE FRONT
14
PROTECTIVE PLATE FRONT
20
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, UP TO CHASSIS 4 409726,FROM CHASSIS,NO LONGER REQUIRED
20
FLANGE GASKET , Replaced By: A4424920280
25
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD M 10X50
28
NUT EXHAUST PIPE TO SIDE MEMBER
35
CLAMP FRONT EXHAUST PIPE TO MUFFLER
40
SCREW BRACKET TO CROSS CONNECTION STRUT
40
SCREW , Replaced By: N304017008034
44
HEXAGON NUT SCREENING PLATE,5 163561
44
NUT , Replaced By: A1201420072
50
EXHAUST MUFFLER
55
SUPPORT RIGHT AIR RESERVOIR
60
SCREW END PIECE TO EXHAUST PIPE M 10X25
64
WASHER RADIATOR TO RUBBER MOUNTING
64
WASHER , Replaced By: N000125010532
68
NUT STRAP TO BRACKET
68
NUT , Replaced By: N910113010000
75
RUBBER DAMPING PLATE. DAMPING PAD , Replaced By: A3095860049
79
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
83
SPACER TUBE FRONT EXHAUST PIPE,B 884219
87
INSULATING WASHER. INSULATION , Replaced By: A3094900037
95
SCREWM 8X40
98
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
98
NUT , Replaced By: N913004008001
105
BRACKET AT MUFFLER,5 194472
110
SCREW VALVE TO BRACKET
114
NUT , Replaced By: A1201420072
114
HEXAGON NUT SCREENING PLATE,5 163561
120
BRACKET EXHAUST MUFFLER SUSPENSION
125
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
129
NUT EXHAUST PIPE TO SIDE MEMBER
140
REAR EXHAUST PIPE , Replaced By: A3184924304
140
REAR EXHAUST PIPE (TAIL PIPE),4 282708
143
REAR EXHAUST PIPE
148
CLAMP REAR EXHAUST PIPE TO MUFFLER
148
CLAMP REAR EXHAUST PIPE TO MUFFLER
152
SCREW , Replaced By: N304017008034
152
SCREW BRACKET TO CROSS CONNECTION STRUT
152
SCREW BRACKET TO CROSS CONNECTION STRUT
156
HEXAGON NUT SCREENING PLATE,5 163561
156
HEXAGON NUT SCREENING PLATE,5 163561
156
NUT , Replaced By: A1201420072
160
SUPPORT RIGHT AIR RESERVOIR
170
RUBBER DAMPING PLATE. DAMPING PAD , Replaced By: A3095860049
172
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
174
SPACER TUBE FRONT EXHAUST PIPE,B 884219
176
INSULATING WASHER. INSULATION , Replaced By: A3094900037
178
SCREWM 8X40
179
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
179
NUT , Replaced By: N913004008001
180
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
180
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
195
CLAMP60.5 MM,4 613839
195
CLAMP , Replaced By: N000000001642
200
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
204
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
204
NUT , Replaced By: N913004008001
999
GUIDE BUSHING TWO-WAY VALVE TO FRAME
999
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
999
REPAIR KIT , Replaced By: A3094900037
999
SUPPORT RIGHT AIR RESERVOIR
999
EXHAUST PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3184901719
999
CONNECTOR BEHIND EXHAUST MUFFLER
999
REAR EXHAUST PIPE (TAIL PIPE)
999
SPACER TUBE , Replaced By: A3094310249
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
