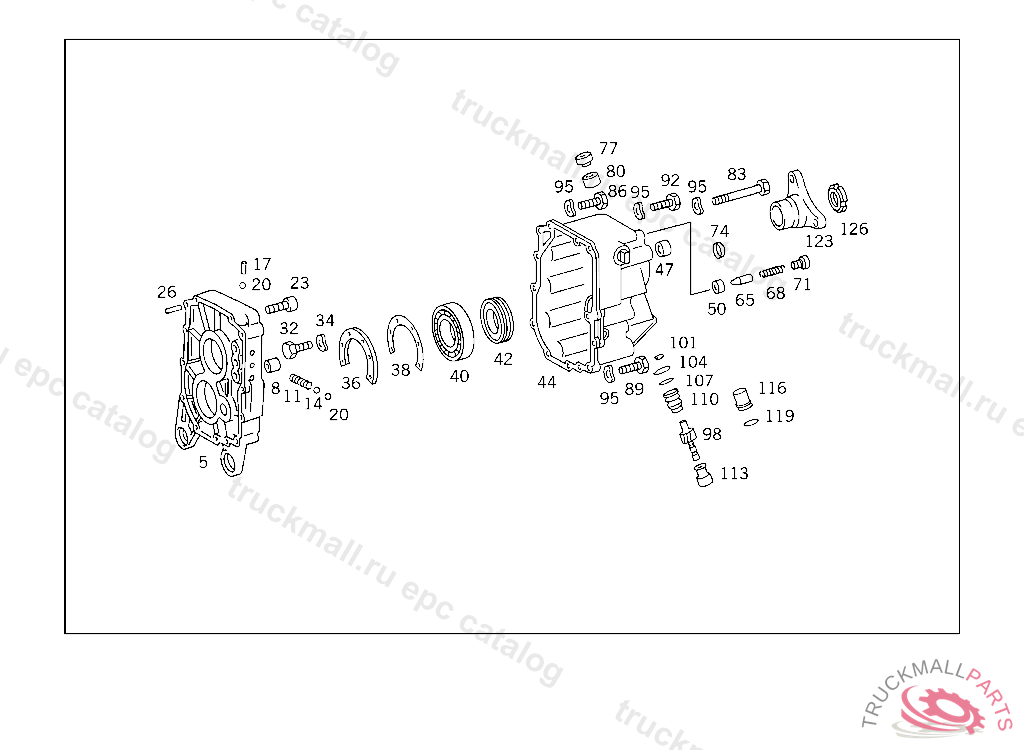

Поз.
Артикул
Описание
5
INTERMEDIATE PIECE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0002610404
8
BUSHING
11
PRESSURE SPRING SHIFTING LOCK
14
BALL
17
DOWEL PIN INTERLOCK PIN
20
BALL INTERMEDIATE FLANGE
23
SCREW SPRING STOP
26
CYLINDRICAL PIN
32
SCREW OIL LINE TO CRANKCASE
34
SPRING WASHER LICENSE PLATE TO BRACKET
36
WASHER (SUPPORTING PLATE)
38
WASHER0.2 MM
38
WASHER0.1 MM
38
WASHER0.3 MM
40
BALL BEARING MAIN SHAFT,REAR
40
BALL BEARING , Replaced By: A0049815425
42
SEAL RING , Replaced By: A0169970547
42
SEAL RING
42
SEAL RING
44
TRANSMISSION CASE COVER TRANSMISSION CASE REAR COVER
44
TRANSMISSION CASE , Replaced By: A0002600016
47
BUSHING
50
BUSHING
65
PIN
68
SPRING
71
SCREW PLUGTO 000 553 03 05,000 553 18 05,
71
SCREW PLUG , Replaced By: N000908014009
74
EXPANSION PLUG BELL HOUSING
77
CAP (BREATHER CAP)
77
CAP , Replaced By: A0002610382
80
SPACER TUBE BREATHER
83
SCREW 3/2-WAY VALVE TO BRACKET M 8X105
86
SCREW , Replaced By: N000933008134
86
SCREW FRONT AXLE REGULATING SOLENOID VALVE
89
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
89
SCREW , Replaced By: N304014008001
92
SCREW VALVE TO BRACKET
95
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
95
SPRING WASHER , Replaced By: N000137008212
98
DRIVE GEAR
101
LOCK RING
104
LOCK (SUPPORTING PLATE)
107
SEAL RING
110
BUSHING
113
SEAL RING , Replaced By: A0119976447
113
SEAL RING , Replaced By: A0119976447
123
FLANGE , Replaced By: A1243530745
123
FLANGE , Replaced By: A1243531745
123
FLANGE , Replaced By: A1232620445
123
FLANGE JOINT FLANGE
126
NUT , Replaced By: A1239900060
126
NUT
