Главная
›
Mercedes
›
TRANSMISSION
›
GL 76/27 M-5
›
717.441
›

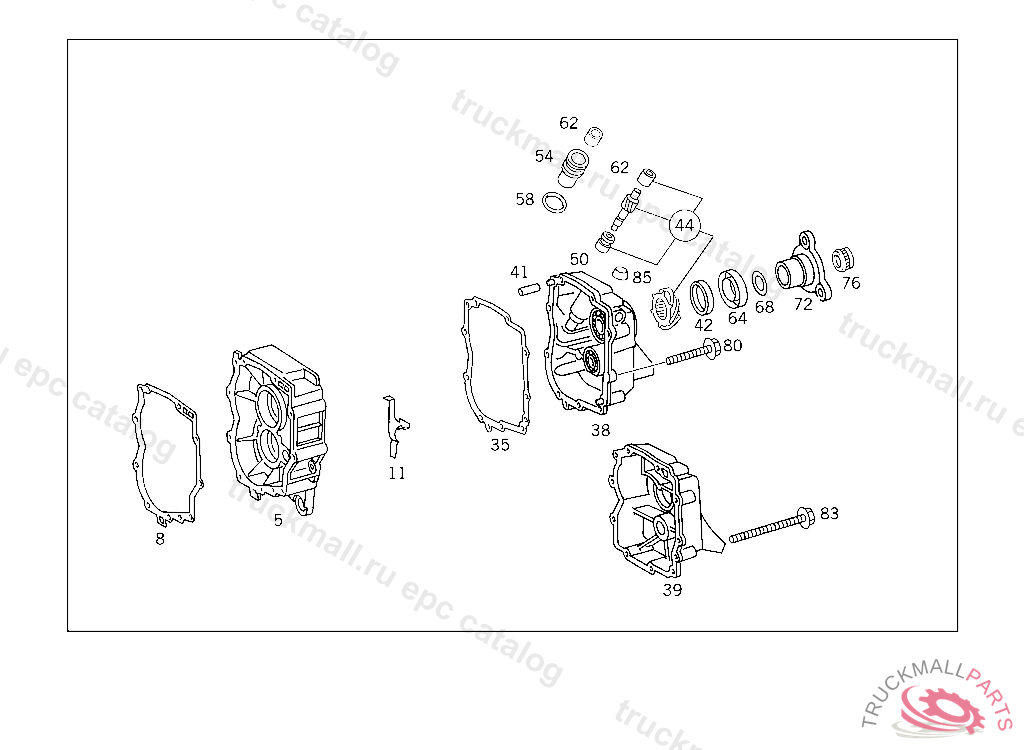

26 717.4 MANUAL TRANSMISSION
›
560 INTERMEDIATE PIECE,REAR COVER, JOINT FLANGE
Mercedes A1162720076 - Диск
GL 76/27 M-5 717.441
26 717.4 MANUAL TRANSMISSION - 560 INTERMEDIATE PIECE,REAR COVER, JOINT FLANGE
Поз.
Артикул
Описание
5
A2102610004
INTERMEDIATE PIECE
8
A1262610580
GASKET , Replaced By: A2102610280
8
A2102610280
GASKET
35
A2102610180
GASKET
35
A2102610080
GASKET , Replaced By: A2102610180
39
A2022600416
TRANSMISSION CASE COVER TRANSMISSION CASE REAR COVER
41
N000007008209
CYLINDER PIN P.T.O. HOUSING
42
A4602620051
SPACER RING SPEEDOMETER DRIVE
64
A0239970147
SEAL RING REAR COVER
64
A0149973447
SEAL RING , Replaced By: A0239970147
64
A0149973547
SEAL RING REAR COVER
68
A1162720076
WASHER
72
A1402620045
FLANGE JOINT FLANGE 100 MM
76
A1239900060
NUT
80
A2029903401
SCREW TRANSMISSION CASE COVER TO TRANSMISSION CASE M 8 X 90
83
A2029903501
SCREW COVER TO INTERMEDIATE PIECE M8X130
83
A2029903001
SCREW , Replaced By: A2029903501
83
N914007008052
COMBINATION BOLT , Replaced By: A2029903001
