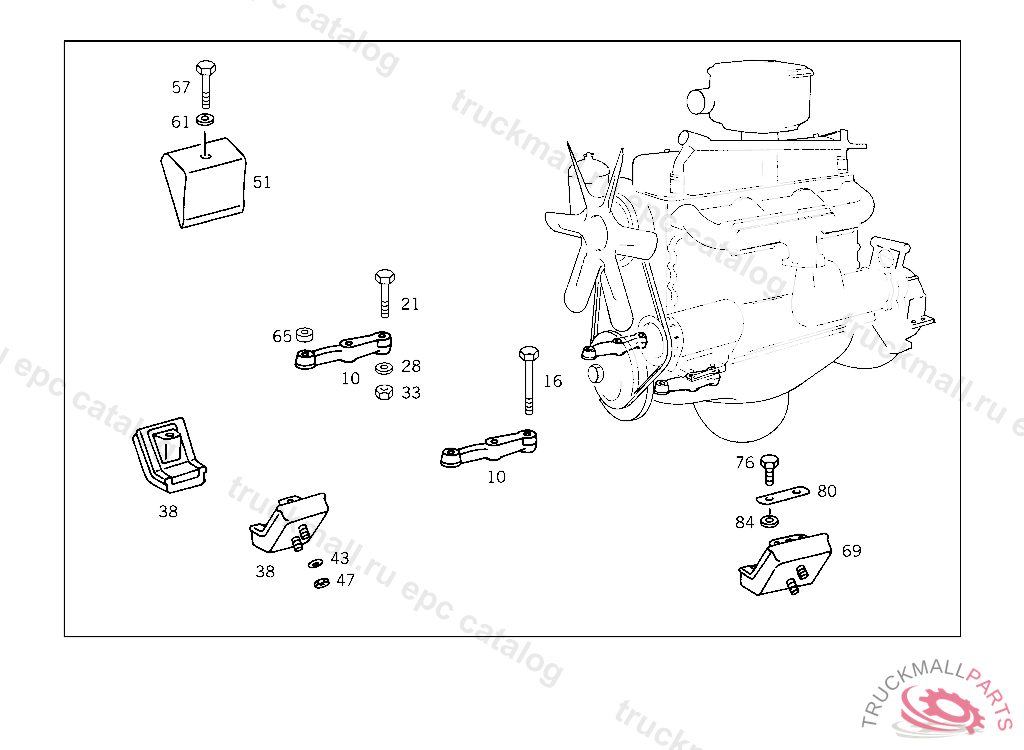

Поз.
Артикул
Описание
10
ENGINE SUPPORT , Replaced By: A3522230004
16
SCREW SUPPORT TO CYLINDER CRANKCASE M 14X95
21
28
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
33
NUT BRACKET TO SIDE MEMBER,K 035196
33
NUT , Replaced By: N308673014001
38
RUBBER MOUNTING FRONT AND REAR
38
RUBBER MOUNTING ENGINE FRONT SUSPENSION,780111
43
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
47
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
47
NUT , Replaced By: N308673010000
51
PROTECTIVE PLATE
57
SCREW BRACKET TO CAB CONSOLE,K 035197
61
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
65
WASHER RUBBER MOUNTING TO FRONT CROSS MEMBER, UP TO IDENT NO. 695022 EXCEPT FOR,500001-599999
69
RUBBER MOUNTING ENGINE FRONT SUSPENSION,780111
76
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
80
LOCK ENGINE TO REAR RUBBER MOUNTING
84
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
84
WASHER , Replaced By: N007349013003
84
WASHER , Replaced By: N007349013005
999
RUBBER MOUNTING , Replaced By: A3412200017
999
999
999
ENGINE SUPPORT
999
999
999
WASHER BOX COVER
999
NUT , Replaced By: N308673010000
999
NUT , Replaced By: N308675014000
999
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
999
SCREW CONSOLE TO SIDE MEMBER
999
NUT , Replaced By: N308675014002
999
NUT RELEASE BEARING LUBRICATION
999
SCREW SUPPORT TO CYLINDER CRANKCASE M14X1.5X75
999
SCREW SUPPORTING ARM TO ENGINE
999
SCREW ALTERNATOR SUPPORT TO CYLINDER CRANKCASE
999
SCREW SUPPORT TO CYLINDER CRANKCASE M 14X1.5X115
