Поз.
Артикул
Описание
5

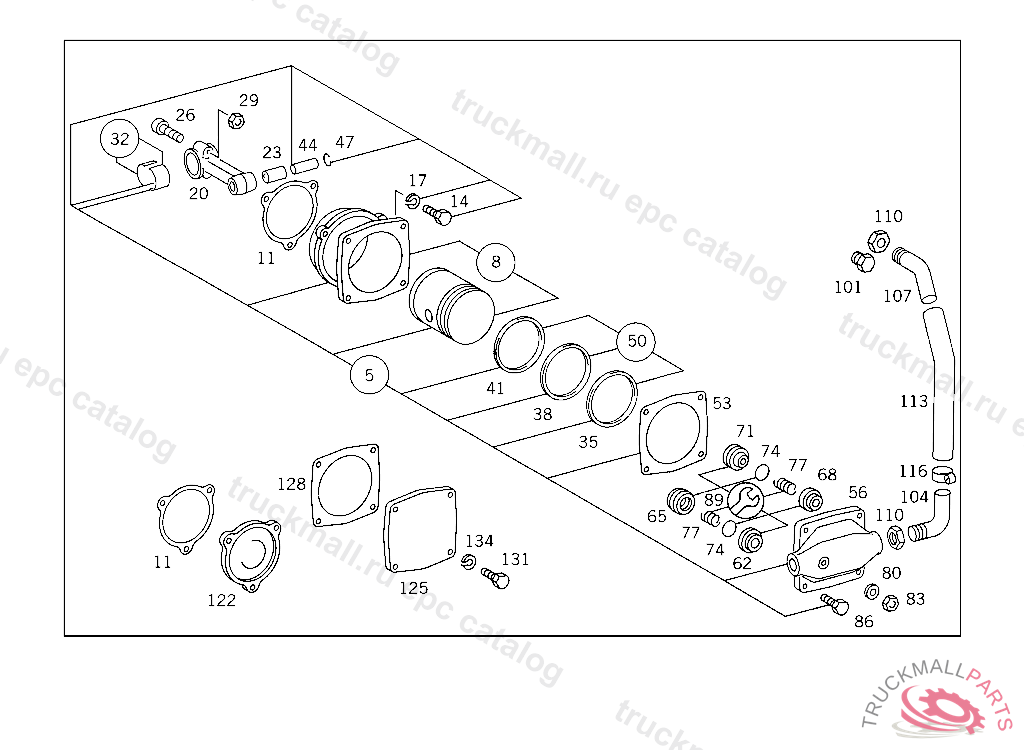

COMPRESSOR ASSEMBLY KIT
8
CYLINDER LINER WITH PISTON,082678
11
GASKET AS REQUIRED 0.30 MM,085523
11
GASKET AS REQUIRED 0.50 MM,085523
11
GASKET , Replaced By: A3211310080
11
GASKET , Replaced By: A3211310180
14
SCREW , Replaced By: N910105008005
14
SCREW , Replaced By: A3529900604
14
SCREW BRACKET TO INTAKE MANIFOLD
14
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
17
LOCK WASHER
20
CONNECTING ROD
23
BUSHING ,082678
26
SCREW CONNECTING ROD COVER TO CONNECTING ROD, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
29
NUT
32
REPAIR KIT , Replaced By: A3525860213
32
REPAIR KIT , Replaced By: A3525860313
32
BEARING SHELL STANDARD SIZE I 31.90 MM
32
REPAIR KIT , Replaced By: A3525860413
32
REPAIR KIT , Replaced By: A3525860513
32
REPAIR KIT , Replaced By: A3525860613
32
REPAIR KIT , Replaced By: A3521312033
32
REPAIR KIT , Replaced By: A3521312133
32
REPAIR KIT , Replaced By: A3521312233
32
REPAIR KIT , Replaced By: A3521312333
32
REPAIR KIT , Replaced By: A3521312433
32
BEARING SHELL REPAIR SIZE III 31.25 MM
32
BEARING SHELL STANDARD,082678
32
BEARING SHELL REPAIR SIZE I 31.75 MM
32
BEARING SHELL REPAIR SIZE II 31.50 MM
35
PISTON RING , Replaced By: A0001317711
35
PISTON RING , Replaced By: A3521310114
38
PISTON RING , Replaced By: A3521311111
38
PISTON RING , Replaced By: A0001317711
41
PISTON RING , Replaced By: A0001317711
41
PISTON RING , Replaced By: A3521310111
41
PISTON RING PARTS KIT,STANDARD 77.000 MM, TO 321 130 00 17
44
PISTON PIN
47
LOCK RING
50
PISTON RING STANDARD 77.000 MM, TO 344 130 14 17
50
REPAIR KIT , Replaced By: A0001317711
50
PISTON RING PARTS KIT,STANDARD 77.000 MM, TO 321 130 00 17
53
GASKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 082678, Replaced By: A3521310480
53
GASKET
53
GASKET
53
GASKET
56
CYLINDER HEAD
56
CYLINDER HEAD
62
SPRING CASE
65
VALVE DISC
68
VALVE DISC
71
VALVE DISC
71
VALVE DISC
74
WASHER
77
SPRING
86
SCREW BRACKET TO CONSOLE M 8X25
89
REPAIR KIT AIR COMPRESSOR CYLINDER HEAD
89
REPAIR KIT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 082678, Replaced By: A3521300020
104
INTAKE PIPE FROM VACUUM PUMP TO OIL PAN
107
INTAKE PIPE FROM CYLINDER HEAD COVER TO AIR COMPRESSOR
110
NUT , Replaced By: N080705022002
110
NUT INTERMEDIATE SPEED STOP
113
HOSE , Replaced By: N900271015037
113
HOSE , Replaced By: N900271015069
116
CLAMP BREATHER LINE, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
999
PISTON , Replaced By: A3441301417
999
CYLINDER LINER , Replaced By: A3521311602
999
CYLINDER LINER , Replaced By: A3521311702
999
CYLINDER LINER , Replaced By: A3521311802
999
CYLINDER LINER , Replaced By: A3521311902
999
CYLINDER LINER , Replaced By: A3521312002
999
BEARING SHELL , Replaced By: A3521310033
999
CYLINDER LINER , Replaced By: A3521312102
999
CYLINDER LINER , Replaced By: A3521312202
999
BEARING SHELL , Replaced By: A3521310433
999
REPAIR KIT STANDARD SIZES I AND II 77.075 MM
999
REPAIR KIT REPAIR SIZE I 77.250 MM
999
REPAIR KIT REPAIR SIZE II 77.500 MM
999
REPAIR KIT REPAIR SIZE III 77.750 MM
999
REPAIR KIT REPAIR SIZE IV 78.000 MM
999
REPAIR KIT AIR COMPRESSOR
999
PISTON77,00 MM
999
BEARING SHELL
999
BEARING SHELL
999
CYLINDER LINER STANDARD
999
CYLINDER LINER STANDARD SIZE I,77.075MM
999
CYLINDER LINER STANDARD SIZE II,77.125MM
999
CYLINDER LINER REPAIR SIZE I 77.25 MM
999
CYLINDER LINER REPAIR SIZE II 77.50 MM
999
CYLINDER LINER REPAIR SIZE III 77.75 MM
999
CYLINDER LINER REPAIR SIZE IV 78 MM
