TRANSMISSION
S 6-90 + N 71/1C OTOMARSAN/TUERKEI
718.355
26 TRANSMISSION

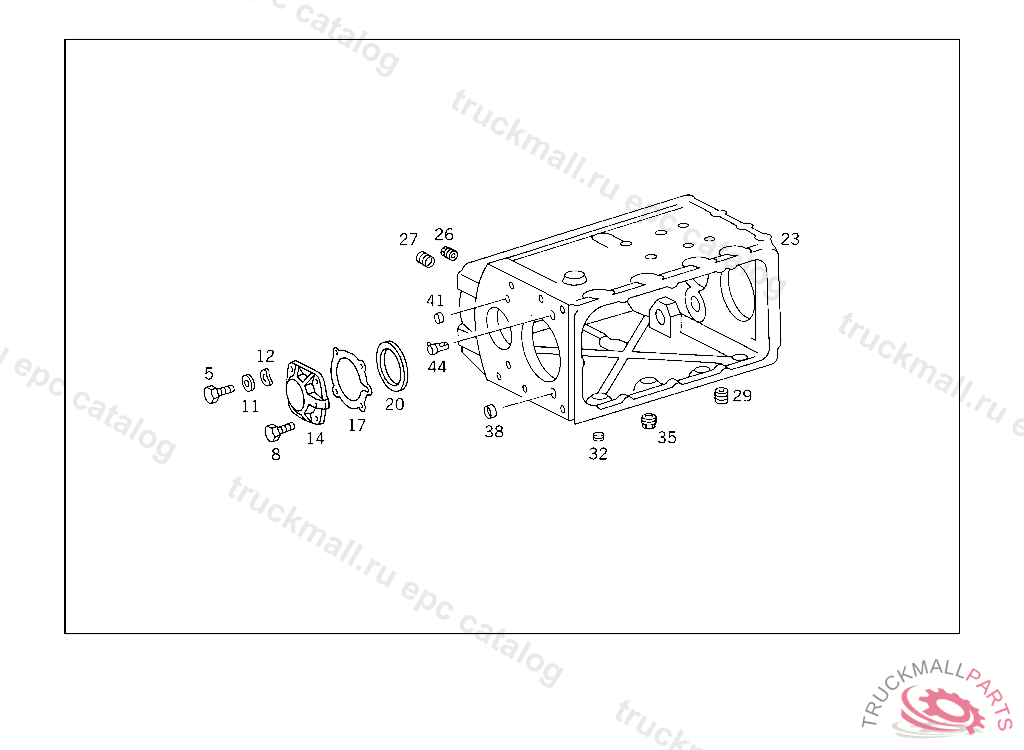

100 TRANSMISSION CASE AND COVER IL. 1

Mercedes A0039977240 - Уплотнит. кольцо

S 6-90 + N 71/1C OTOMARSAN/TUERKEI 718.355

26 TRANSMISSION - 100 TRANSMISSION CASE AND COVER IL. 1

Поз.
Артикул
Описание
5
N000933010164
SCREW BRACKET TO SIDE MEMBER
8
N000933010157
SCREW SUPPORT TO CROSS MEMBER M 10X28
11
A0039977240
SEAL RING INTERMEDIATE GEAR
14
A0002610418
TRANSMISSION CASE COVER FRONT,076139
17
A0002614880
GASKET CASE COVER,076139
20
A0002631752
SPACER WASHER AS REQUIRED 2.30 MM
20
A0002632452
SPACER WASHER AS REQUIRED 1.95 MM
20
A0002634652
SPACER WASHER AS REQUIRED 2.90 MM
20
A0002632152
SPACER WASHER AS REQUIRED 2.10 MM
20
A0002635152
SPACER WASHER AS REQUIRED 2.45 MM
20
A0002635752
SPACER WASHER AS REQUIRED 3.35 MM
20
A0002634252
SPACER WASHER AS REQUIRED 3.10 MM
20
A0002635552
SPACER WASHER AS REQUIRED 3.25 MM
20
A0002635352
SPACER WASHER AS REQUIRED 3.15 MM
20
A0002636052
SPACER WASHER , Replaced By: A0002631752
20
A0002635652
SPACER WASHER , Replaced By: A0002632152
20
A0002635252
SPACER WASHER , Replaced By: A0002634252
20
A0002633552
SPACER WASHER , Replaced By: A0002634252
20
A0002633252
SPACER WASHER , Replaced By: A0002634652
20
A0002632952
SPACER WASHER , Replaced By: A0002634252
20
A0002631452
SPACER WASHER , Replaced By: A0002635152
20
A0002631152
SPACER WASHER , Replaced By: A0002634652, +001A0002635152
23
A0002611501
TRANSMISSION CASE ,076139
26
A0009979930
SCREW PLUG OIL FILLING, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
29
A3529970032
SCREW PLUG BELL HOUSING
29
A0009977535
PLUG , Replaced By: A3529970032
32
N000906018000
SCREW PLUG TOP AND BOTTOM
35
A0009979730
SCREW PLUG OIL DRAIN, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
38
N000443025003
EXPANSION PLUG , Replaced By: A4039970620
38
A4039970620
EXPANSION PLUG P.T.O. HOUSING
41
N000443030000
EXPANSION PLUG
