Поз.
Артикул
Описание

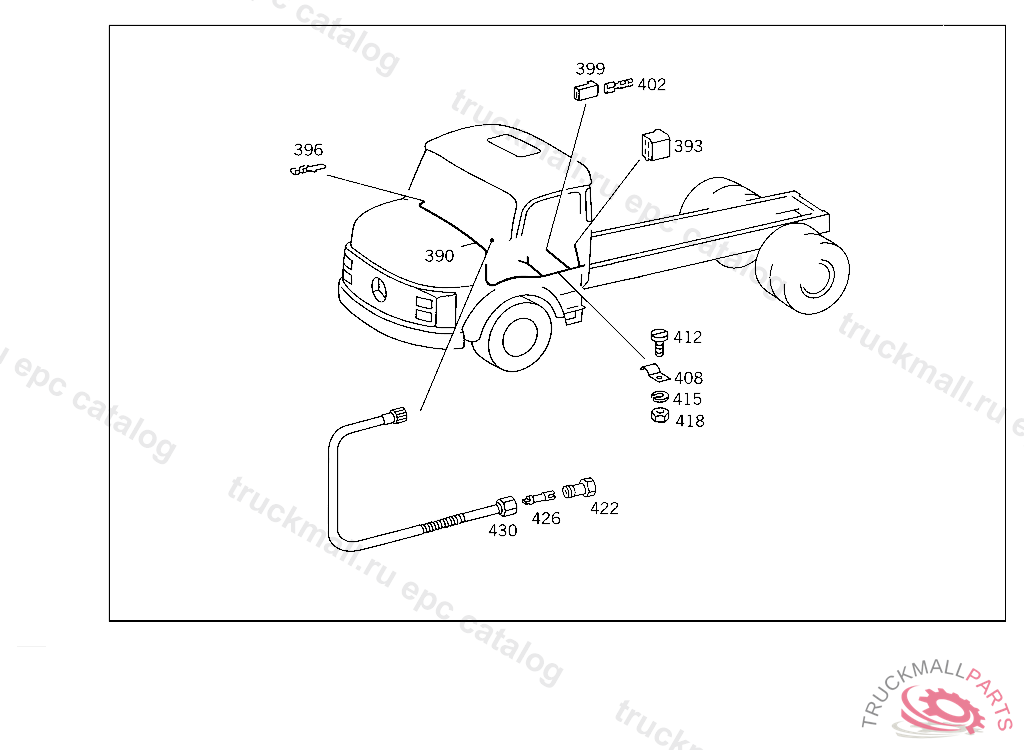

390
ELECTRIC CABLE FROM CONNECTION POINT TO ADDITIONAL GEARBOX VALVE
393
PIN BUSHING HOUSING 4-POLE
396
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
396
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
399
PIN BUSHING HOUSING UNIPOLAR
402
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
402
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
402
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
402
PIN BUSHING , Replaced By: A0075458226
402
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
408
CLAMP
408
CLAMP FLEXIBLE SHAFT
412
SCREWM 5X20
412
SCREW STEERING COLUMN PANELLING M 5X12
415
LOCK WASHER BRACKET TO STEERING COLUMN END
418
NUT IN CASE OF SUBSEQUENT INSTALLATION
418
NUT , Replaced By: N304032005005
422
CONNECTOR ANGLE DRIVE
426
COUPLER ANGLE DRIVE
430
FLEXIBLE SHAFT4100 MM, ON TYPE 335.4 FROM CHASSIS 650778,ON TYPES 336.3,366.3 AND 370.0 FROM CHASSIS 654133
430
FLEXIBLE SHAFT4600 MM,5 223296
430
FLEXIBLE SHAFT3750 MM
999
COVER SHIFTING ROD, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
999
HOUSING
999
RELAY , Replaced By: A0025422419
999
FLEXIBLE SHAFT , Replaced By: A0035420807
999
BOOT *** 2.5 MM2
999
WASHER BRACKET TO COVERING
999
WASHER
999
LOCK AS REQUIRED 2,55 MM
999
LOCK AS REQUIRED 2.65 MM
999
FLEXIBLE SHAFT , Replaced By: A0025424707
999
SPRING , UP TO CHASSIS 654646 TRANSMISSION AK 6-80 ON TYPES 370.051,052,061,062 UNTIL PRODUCTION STOP
999
HANDLE
999
CLAMP PIPE LINE TO CAB FLOOR
999
CLAMP FUEL LINE TO CAB CONSOLE,5 092216
999
BOOT SHIFT LEVER BEARING COVERING
999
BRACKET AIR HORN
999
CONNECTOR SHIFT LEVER TO LEVER
999
BEARING BRACKET
999
SHIFTING ROD
999
TRANSMISSION , UP TO CHASSIS 654646 FOR USE WITH TRANSMISSION AK 6-80
999
TRANSMISSION , FROM CHASSIS 654647,TRANSMISSION S 6-80 INAPPLICABLE TO TYPES 370.051,052,061,062
999
TRANSMISSION
999
LEVER
999
ELECTRIC CABLE
999
ELECTRIC CABLE FROM CONNECTION POINT TO ADDITIONAL GEARBOX VALVE
999
ELECTRIC CABLE
999
ELECTRIC CABLE
999
COVER SHIFT LEVER BEARING COVERING
999
PAD
999
BUSHING
999
BUSHING PAWL TO ROD END,5 443047
999
SHAFT
999
TRANSMISSION
999
SHIFTING ROD 5TH AND 6TH SPEED, UP TO TRANSMISSION 41270 WITH THE EXCEPTION OF 40667-40676
999
SPACER WASHER AS REQUIRED 1.60 MM
999
SPACER WASHER AS REQUIRED 1.40 MM
999
HOUSING , Replaced By: A0002642802
999
FOLLOWER , Replaced By: A0002640746
999
HOUSING , Replaced By: A0002642802
999
HOUSING , Replaced By: A3362640902
999
SPACER RING AS REQUIRED 8.75 MM
999
SPRING 3RD THRU 6TH SPEED TO 336 262 07 34
999
HOUSING , Replaced By: A0002642802
999
SPACER WASHER AS REQUIRED 2.00 MM
999
SPACER RING AS REQUIRED 8.50 MM
999
SPACER WASHER AS REQUIRED 2.20 MM
999
SPACER RING AS REQUIRED 8.00 MM
999
SPACER RING AS REQUIRED 7.75 MM
999
SPACER RING AS REQUIRED 7.50 MM
999
SPACER WASHER AS REQUIRED 2.25 MM
999
SPACER WASHER AS REQUIRED 2.00 MM
999
ROD CLUTCH LINKAGE
999
ELECTRIC CABLE
999
ELECTRIC CABLE
999
BUSHING
999
LEVER
999
P.T.O.N 70-1 C
999
BEARING BRACKET , Replaced By: A3432601994
999
SPACER WASHER AS REQUIRED 1.75 MM
999
SPACER WASHER AS REQUIRED 1.65 MM,10/20879180, 50/60880936
999
SPACER WASHER AS REQUIRED 1.55 MM,10/20879179, 50/60880935
999
SPACER WASHER AS REQUIRED 1.45 MM
999
SHIFT LEVER
999
BEARING BRACKET
999
BRACKET LINE MOUNTING
999
SHAFT
999
TRANSMISSION , UP TO CHASSIS 654646 FOR USE WITH TRANSMISSION AK 6-80
999
TRANSMISSION AK 6-80 HILL GEAR,1ST SPEED RATIO 1:9.0,6TH SPEED RATIO 1:1.0, UP TO CHASSIS 654646 FOR USE WITH AK 6-80 TRANSMISSION
999
DRIVE SHAFT
999
SHIFTING ROD 5TH AND 6TH SPEED
999
SHIFT LEVER
999
SCREW IN CASE OF SUBSEQUENT INSTALLATION
