Поз.
Артикул
Описание

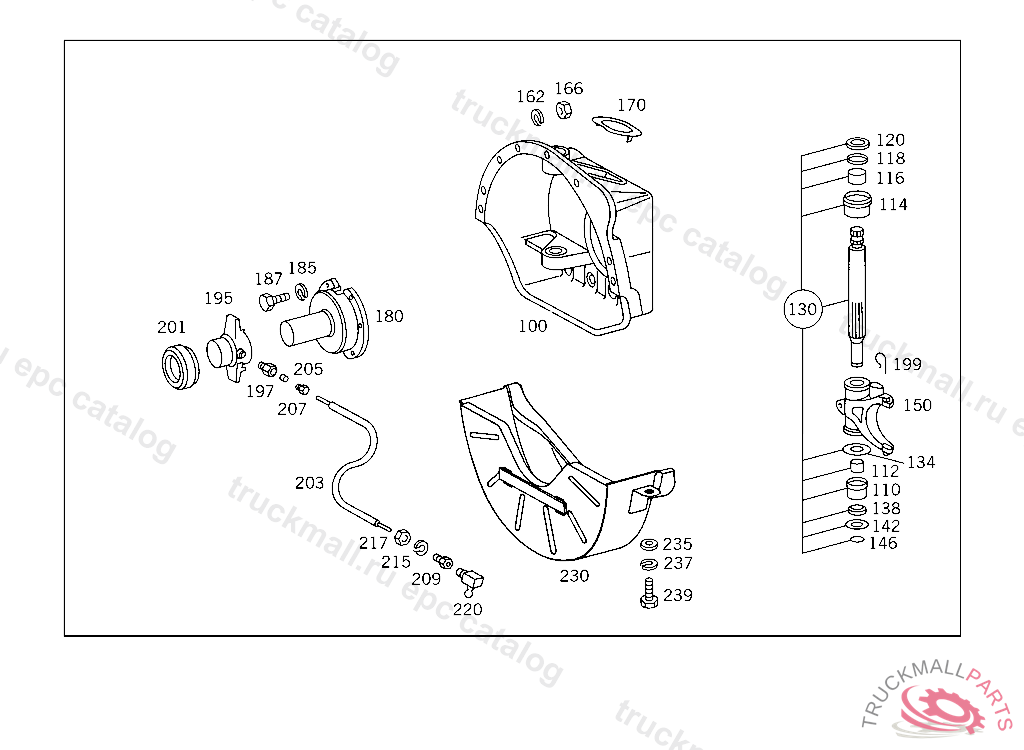

100
HOUSING , UP TO IDENT NO. 764484 EXCEPT FOR 500001-599999, Replaced By: A3462505005, +008N000960018013
110
BUSHING RELEASE SHAFT,BOTTOM
112
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
114
BUSHING TOP
116
BUSHING TOP
118
FELT RING
120
COVER PLATE
130
REPAIR KIT , DELIVER ADDITIONALLY:AS REQUIRED 1X 317 293 01 77-06 77, Replaced By: A3632500114
130
SHAFT (PARTS KIT),RELEASE SHAFT, DELIVER ADDITIONALLY:AS REQUIRED 1X 317 293 01 77-06 77
134
WASHER AS REQUIRED 0.80 MM
134
WASHER AS REQUIRED 0.90 MM
134
WASHER AS REQUIRED 1.00 MM
134
WASHER AS REQUIRED 1.10 MM
134
WASHER AS REQUIRED 1.20 MM
134
WASHER AS REQUIRED 1.3 MM
138
FELT RING
142
SPACER WASHER RELEASE SHAFT,BOTTOM
146
LOCK RING RELEASE SHAFT,BOTTOM
150
RELEASE YOKE , Replaced By: A3452937111
162
LOCK WASHERROCKINGER TYP 59 G140,59 G150
166
NUT , Replaced By: N308673016001
166
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
170
COVER ,079773
180
GUIDE , Replaced By: A3432540216
180
GUIDE
185
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
187
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
195
RELEASE COLLAR
197
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
199
SPRING LOCK RELEASE COLLAR TO RELEASE YOKE
201
RELEASE BEARING
203
HOSE RELEASE BEARING LUBRICATION 170 MM
205
DOUBLE TAPER RING RELEASE BEARING LUBRICATION, INCLUDED IN RANGE OF DELIVERY OF TRANSMISSION
207
UNION SCREW RELEASE COLLAR LUBRICATION
209
BULKHEAD FITTING RELEASE BEARING LUBRICATION
215
SPRING WASHER BEARING BRACKET TO SIDE MEMBER,4 207081
217
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
220
GREASE NIPPLE FOR SPRING
230
PROTECTIVE PLATE BOTTOM
235
WASHER , Replaced By: N000125010532
235
WASHER RADIATOR TO RUBBER MOUNTING
237
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
239
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
LOCK WASHER BELL HOUSING TO TRANSMISSION
999
SEAL RINGTO 000 550 00 83
999
LOCK PLATE RELEASE LEVER TO SHAFT
999
SCREWM 18X18X33X55
999
SCREW BELL HOUSING TO TRANSMISSION
999
SCREW , Replaced By: N308676018009
999
SCREW , Replaced By: N000960018109
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
HOUSING CLUTCH
999
HOUSING CLUTCH
999
RELEASE SHAFT
999
HOUSING , Replaced By: A3462505105, +008N000960018013
999
SPRING SUSPENDED BELOW LEAF SPRING
999
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
999
SCREW RELEASE LEVER,BRACKET
999
SLEEVE CLUTCH PRESSURE PLATE
