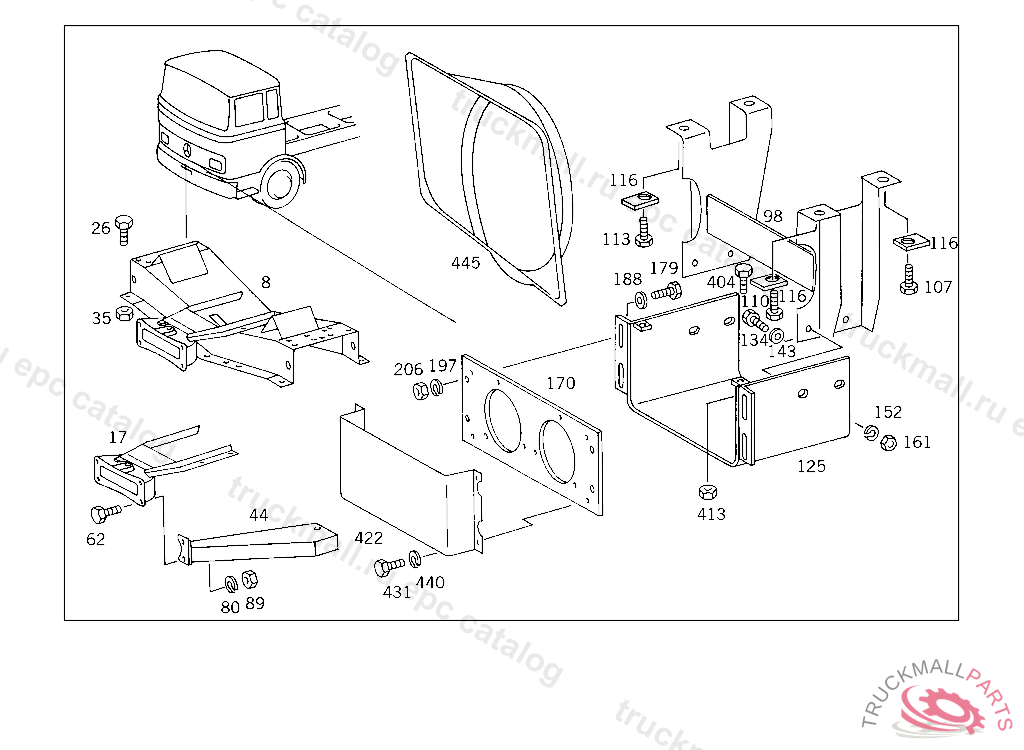

Поз.
Артикул
Описание
8
ENGINE CROSS MEMBER FRONT
17
BRACKET COUPLING MOUTH
26
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
26
SCREW , Replaced By: N304017010028
35
NUT BRACKET TO SUPPORT AND TO END PIECE
44
STRUT COUPLING MOUTH,RIGHT
44
STRUT COUPLING MOUTH,LEFT
62
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
62
SCREW , Replaced By: N308676012026
62
SCREW CONSOLE TO SIDE MEMBER
80
LOCK WASHER FITTING TO BRACKET
89
NUT STRAP TO SUPPORT
98
BRACKET HYDRAULIC PUMP
98
BRACKET HYDRAULIC PUMP
98
BRACKET HYDRAULIC PUMP
107
SCREW BRACKET TO ENGINE SUPPORTING ARM M 16X85
107
SCREW BRACKET TO TIMING CASE
110
SCREW BRACKET TO ENGINE SUPPORTING ARM M 16X85
113
SCREW BRACKET TO ENGINE SUPPORTING ARM M 16X100
116
LOCK BRACKET TO ENGINE SUPPORTING ARM
125
BRACKET HYDRAULIC PUMP
134
SCREW CONSOLE TO SIDE MEMBER
143
WASHER
152
LOCK WASHER FITTING TO BRACKET
161
NUT STRAP TO SUPPORT
170
PLATE FRONT
170
PLATE FRONT
179
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
179
SCREW , Replaced By: N308676012026
179
SCREW
188
WASHER
197
LOCK WASHER FITTING TO BRACKET
206
NUT STRAP TO SUPPORT
404
SCREW , Replaced By: N304017010053
404
SCREW , Replaced By: N304017010030
413
NUT BRACKET TO EXHAUST PIPE BRACKET
422
PROTECTIVE PLATE HYDRAULIC PUMP
422
PROTECTIVE PLATE HYDRAULIC PUMP
431
SCREW COVER PLATE TO COVER PLATE M 6 X 12
431
SCREW , Replaced By: N304017006018
440
SPRING WASHER LICENSE PLATE TO BRACKET
440
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
445
AIR BAFFLE
999
V-BELT12.5X1100 MM
999
V-BELT , Replaced By: A0049979992
