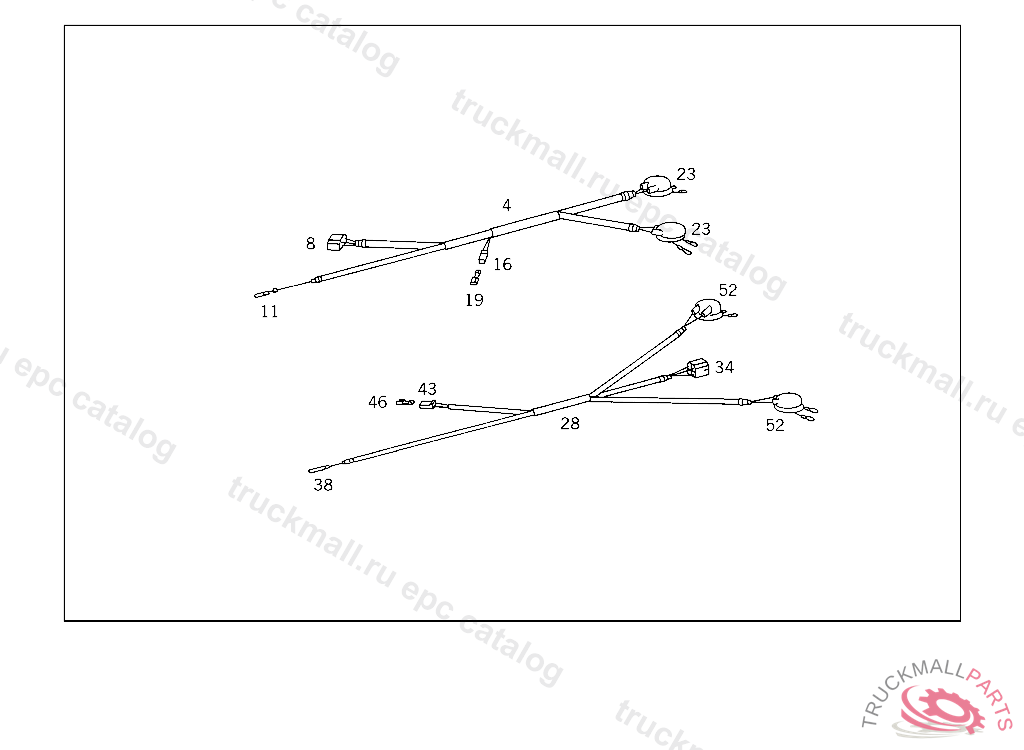

Поз.
Артикул
Описание
4
ELECTRIC CABLE FROM CONNECTION POINT TO ADDITIONAL GEARBOX VALVE
8
PIN BUSHING HOUSING 4-POLE
11
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
16
PIN BUSHING HOUSING UNIPOLAR
19
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
23
BOOT *** 2.5 MM2
28
ELECTRIC CABLE
34
PIN BUSHING HOUSING 4-POLE
38
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
43
PIN BUSHING HOUSING UNIPOLAR
46
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
52
BOOT *** 2.5 MM2
999
RELAY , Replaced By: A0025422419
999
RELAY
999
PIN BUSHING , Replaced By: A0075458226
999
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
999
ELECTRIC CABLE
999
ELECTRIC CABLE
999
ELECTRIC CABLE
999
ELECTRIC CABLE FROM CONNECTION POINT TO ADDITIONAL GEARBOX VALVE
999
ELECTRIC CABLE
999
ELECTRIC CABLE
999
SCREW CLAMP TO BRACKET
999
LOCK WASHER
999
SCREW IN CASE OF SUBSEQUENT INSTALLATION
999
NUT TACHOGRAPH TO BRACKET
999
WASHER TWO-WAY VALVE TO CONTROL VALVE,4 719029
