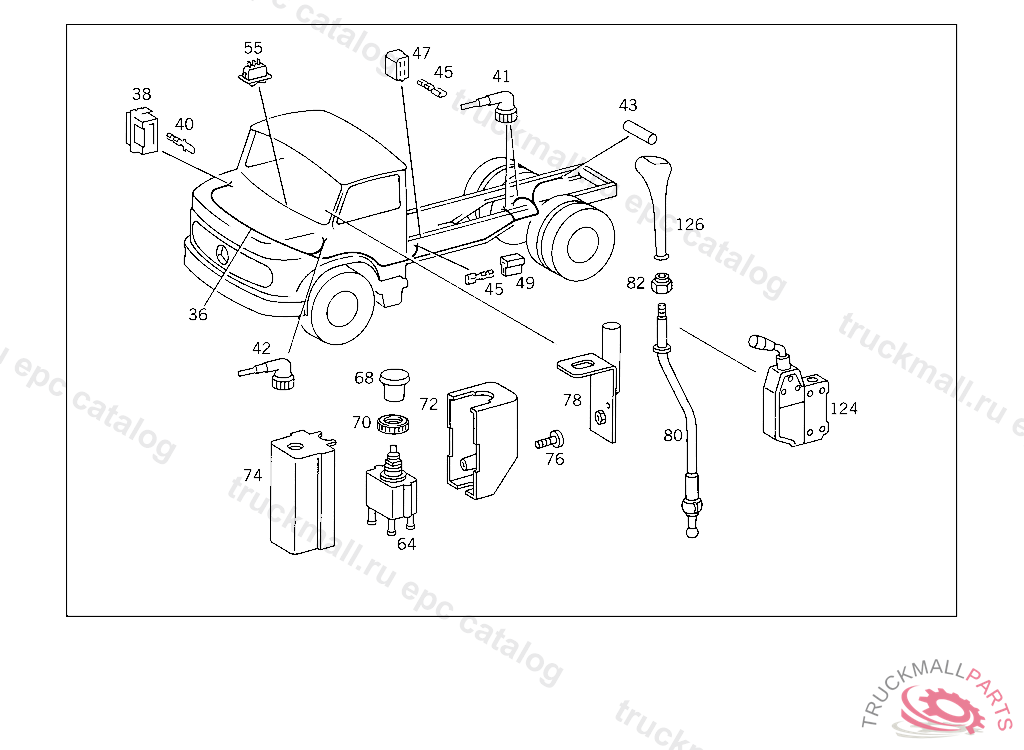

Поз.
Артикул
Описание
36
CABLE HARNESS FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
36
ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
36
ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
36
CABLE HARNESS , Replaced By: A3925408308
36
ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
36
ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
36
ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
36
CABLE HARNESS FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
36
CABLE HARNESS , Replaced By: A3925408408
38
PLUG HOUSING 8-POLE
40
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
41
PLUG SOCKET
41
BOOT. PLUG SOCKET FRAME MOUNTED CABLE HARNESS,TB099687
41
PLUG SOCKETTO 341 540 82 10
42
PLUG SOCKETTO 341 540 82 10
42
BOOT. PLUG SOCKET FRAME MOUNTED CABLE HARNESS,TB099687
43
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
43
GROMMET3.0 MM
45
PIN BUSHING , Replaced By: A0075458226
47
PIN BUSHING HOUSING 8-POLE
49
PIN BUSHING HOUSING BIPOLAR
55
SWITCH INTERIOR LAMP,070378
64
SWITCH TWO-SPEED REAR AXLE CONTROL,4 188089
68
BUTTON TWO-SPEED REAR AXLE CONTROL,4 188089
70
NUT , Replaced By: A0029906251
72
SHELL TWO-SPEED REAR AXLE CONTROL,4 188089
74
SHELL TWO-SPEED REAR AXLE CONTROL,4 188089
76
SCREWM 4X18,A 063814
78
BRACKET ,A 063814
80
SHIFT LEVER ,A 063814
82
NUT BRACKET TO SHIFT LEVER,A 063814
124
SWITCH
124
SWITCH
126
KNOB GEARSHIFT LEVER UPPER PART TO 384 260 76 40, NO.8650I.......I I I II .......INO.9985I I I II I
999
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
999
TEST CONNECTION
999
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
T-FITTING RIGHT TRISTOP CYLINDER,CONNECTION: "12",A 069205
999
FLEXIBLE SHAFT AS REQUIRED 2100 MM
999
FLEXIBLE SHAFT2190 MM
999
SPEEDOMETER
999
SPEEDOMETER RATIO: 7:48,9.00X20
999
LOOM TIE , Replaced By: A0019978390
999
FLEXIBLE SHAFT , Replaced By: A0035420207, +001A0005422930
999
SPEEDOMETER
999
HOSE , Replaced By: A0009872827
999
CLAMP FLEXIBLE SHAFT
999
THRUST RING LOCKING VALVE
999
LINE FROM DISTRIBUTOR TO LEFT REAR WHEEL
999
LINE FROM DISTRIBUTOR TO RIGHT REAR WHEEL
999
BRACKET , Replaced By: A3124761535
999
CLAMP FLEXIBLE SHAFT
999
LINE FROM DISTRIBUTOR TO LEFT REAR WHEEL
999
LINE FROM DISTRIBUTOR TO RIGHT REAR WHEEL,A 059728
999
ELECTRIC MOTOR TWO-SPEED REAR AXLE 12V
999
LINE FROM FITTING TO DIAPHRAGM CYLINDER 12 MM,A 069205
999
CABLE HARNESS ELECTRIC MOTOR
999
ANGLE DRIVE SPEEDOMETER
999
SHELL 3-POLE
999
SWITCH TWO-SPEED REAR AXLE,A 063813
999
MOTOR TWO-SPEED REAR AXLE 12 V
999
NUT
999
BRACKET BRAKE HOSE BRACKET,A 069205
999
BRACKET ANGLE DRIVE
999
FLEXIBLE SHAFT
999
FITTING RIGHT SPRING-LOAD ACCUMULATOR
999
SCREW SHOCK ABSORBER TO BOTTOM BRACKET
999
LOCK SHOCK ABSORBER TO BOTTOM BRACKET
999
FLEXIBLE SHAFT2190 MM
999
WASHER , Replaced By: N000433005304
999
SERRATED WASHER ENGINE
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
