Главная
›
Mercedes
›
TRANSMISSION
›
S 6-90 NMV 110/10
›
719.526
›
26 TRANSMISSION
›

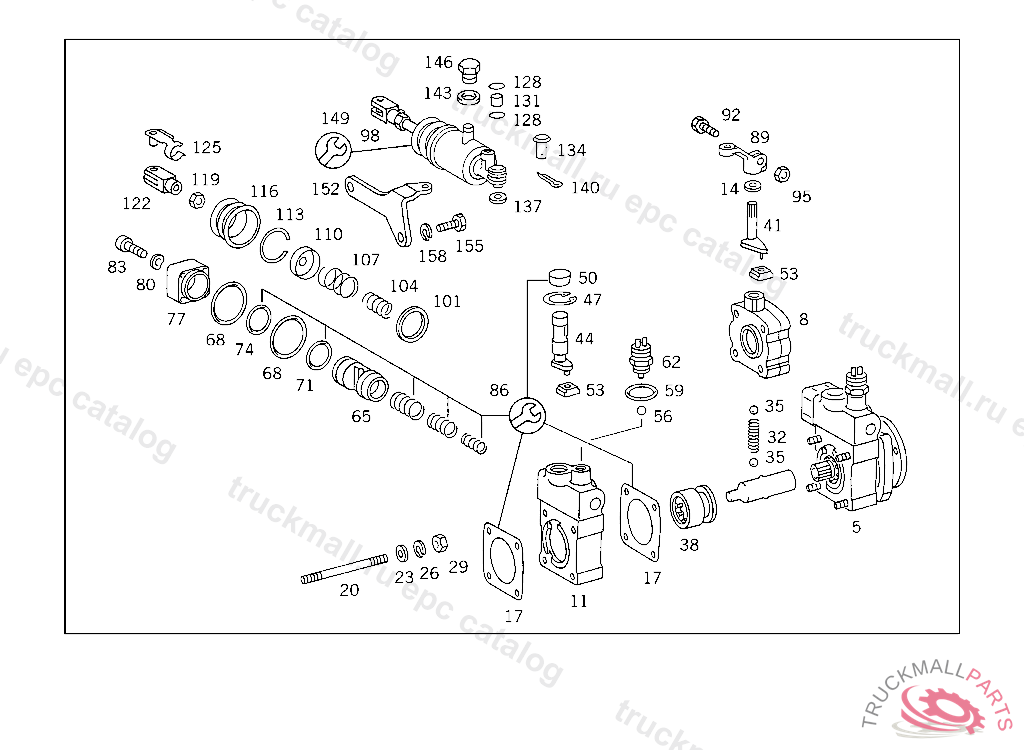

700 P.T.O. DEPENDENT ON TRANSMISSION IL. 1
Mercedes N000125008443 - ШАЙБА
S 6-90 NMV 110/10 719.526
26 TRANSMISSION - 700 P.T.O. DEPENDENT ON TRANSMISSION IL. 1
Поз.
Артикул
Описание
98
A0002606663
SHIFTING CYLINDER PNEUMATIC SHIFTING CYLINDER
98
A0002603263
SHIFTING CYLINDER , Replaced By: A0002606663
101
A0002640260
SEAL RING
104
A0002640193
SPRING
107
A0002640093
SPRING
110
A0002640086
STOP RING
113
N007993048200
SNAP RING SHIFTING CYLINDER
116
A0002640696
BOOT
116
A0002640096
BOOT , Replaced By: A0002640696
119
N913021010001
NUT , Replaced By: N304035010001
119
N304035010001
NUT
122
A0009962801
YOKE
122
A3619960201
YOKE , Replaced By: A0009962801
125
N918001008002
PINM 8 X 16
128
A0002640076
WASHER
131
A0002640092
STRAINER
134
N001434008020
PIN PULL ROD TO SHIFT LEVER
137
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
137
N000125008418
WASHER , Replaced By: N000125008443
140
N000094002059
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
140
N000094002060
COTTER PIN LEVER TO ROD
143
N007603010116
SEAL RING OIL DISTRIBUTOR BLOCK
146
N000910010000
SCREW PLUG
149
A0002603068
REPAIR KIT PNEUMATIC SHIFTING CYLINDER TO 000 260 66 63
