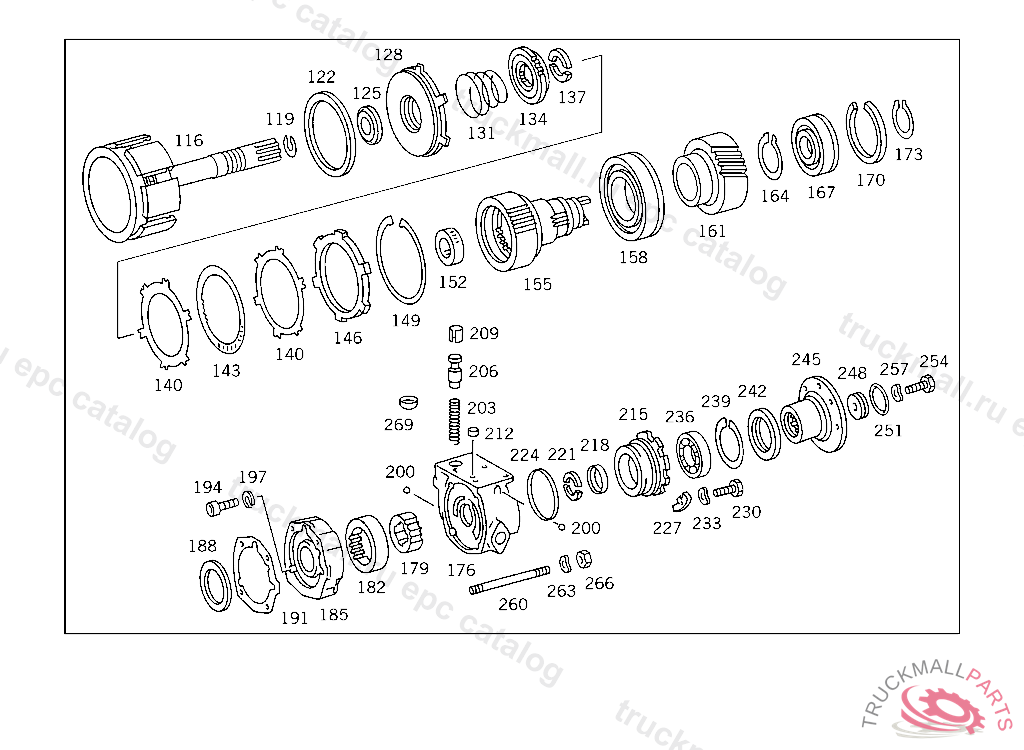

Поз.
Артикул
Описание
116
DRIVE SHAFT NMV OUTPUT
119
SEAL RING OUTPUT SHAFT,REAR
122
SEAL RING ,124521, Replaced By: A0002641460, +001A0002640815, +001A0002641560
122
SEAL RING INSIDE PISTON 50.30 MM
125
SEAL RING , Replaced By: A0002641560, +001A0002640815, +001A0002641460
125
SEAL RING OUTSIDE PISTON 127.20 MM
128
PISTON , Replaced By: A0002640715
128
PISTON ,124521, Replaced By: A0002640815, +001A0002641460, +001A0002641560
128
PISTON NMV P.T.O. CLUTCH
131
SPRING NMV P.T.O. CLUTCH
134
SLIDING COLLAR
137
RING HALF
140
SHIM (OUTER DISC)
143
SHIM (INNER DISC)
143
SHIM , Replaced By: A0002641047
146
THRUST WASHER NMV P.T.O. CLUTCH
149
LOCK NMV P.T.O. CLUTCH
152
ROLLER ASSEMBLY FRONT DRIVE SHAFT
155
DISC SUPPORT INSIDE
158
CYLINDR. ROLLER BEARING DISC SUPPORT
161
GEAR NMV OUTPUT
164
LOCK RING BEARING TO DRIVE SHAFT
167
CYLINDR. ROLLER BEARING DISC SUPPORT
170
SNAP RING BEARING TO P.T.O. CASE
173
LOCK RING P.T.O.
176
HOUSING , Replaced By: A0002645902, +001A0009971220
176
HOUSING , Replaced By: A0002647202
176
HOUSING (OIL DISTRIBUTOR BLOCK)
179
GEAR INSIDE
182
GEAR OUTSIDE
185
HOUSING PUMP
188
SPACER WASHER AS REQUIRED 0.60 MM
188
SPACER WASHER AS REQUIRED 1.10 MM
188
SPACER WASHER AS REQUIRED 0.80 MM
188
SPACER WASHER AS REQUIRED 1.00 MM
191
GASKET OIL PUMP HOUSING
191
GASKET , Replaced By: A0012640780
194
SCREW OIL PUMP HOUSING M6X35
197
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
200
BALL P.T.O. SHAFT
203
SPRING OIL DISTRIBUTOR BLOCK
206
PISTON OIL DISTRIBUTOR BLOCK
209
CLAMPING SLEEVE OIL DISTRIBUTOR BLOCK
212
NOZZLE OIL DISTRIBUTOR BLOCK TO 000 264 55 02
215
BUSHING OIL DISTRIBUTOR BLOCK
218
BRACKET OIL DISTRIBUTOR BLOCK
221
RING HALF , Replaced By: A0012620930
221
RING HALF OIL DISTRIBUTOR BLOCK
224
SEAL RING
224
SEAL RING FLANGE TO P.T.O.
227
LOCK OIL DISTRIBUTOR BLOCK
230
SCREW , Replaced By: N304017008016
230
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
233
SPRING WASHER , Replaced By: N000137008212
233
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
236
GROOVED BALL BEARING REAR DRIVE SHAFT
236
BALL BEARING OIL DISTRIBUTOR BLOCK
239
LOCK RING DISC SUPPORT
242
SEAL RING , Replaced By: A0129979847
242
SEAL RING , Replaced By: A0229974147
242
SEAL RING OIL DISTRIBUTOR BLOCK
245
COUPLING FLANGE
248
SHIM FLANGE TO TRANSMISSION CASE COVER
251
SEAL RING FLANGE TO TRANSMISSION CASE COVER
254
SCREW , Replaced By: N304017012020
254
SCREW END PIECE TO EXHAUST PIPE M 12X30
257
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
257
SPRING WASHER CAB FLOOR
260
STUD OIL PUMP TO TRANSMISSION CASE
263
WASHER COVER TO P.T.O. CASE
266
NUT
266
NUT COVER TO FLANGE
269
EXPANSION PLUG OIL DISTRIBUTOR BLOCK TO 000 264 59 02
