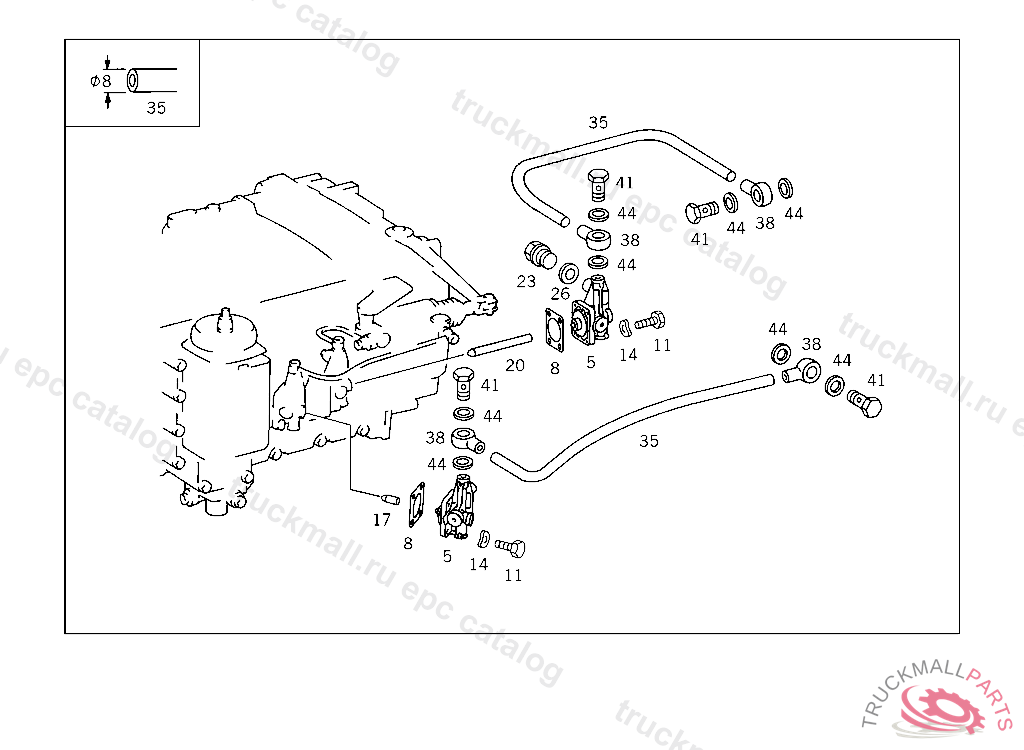

Поз.
Артикул
Описание
5
VALVE 3/2-WAY VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,SOLENOID VALVE,131097,5 S 110 GPA131453,5 K 110 GPA
5
VALVE , COMPONENT PARTS NOT AVAILABLES, Replaced By: A0012602757
8
GASKET , Replaced By: A0002685880
8
GASKET SHIFT CASE
11
SCREW PIPE CLAMP
11
SCREW , Replaced By: N304017008021
14
SPRING WASHER , Replaced By: N000137008212
14
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
17
PIN MAIN SHUT-OFF VALVE CONTROL,FRONT,003860
17
PIN , Replaced By: A0002653574
20
PIN , Replaced By: A0002653674
20
PIN TRANSMISSION CASE REAR COVER,SIDE 10X124.70 MM
23
SCREW PLUGM 12X1.5
26
SEAL RING LINE CONNECTION
35
HOSE FROM 3/2-WAY VALVE TO SHIFTING CYLINDER, ORDER BY THE METER
38
BANJO UNION
41
HOLLOW SCREW DISTRIBUTOR
44
SEAL RING LINE CONNECTION
