Поз.
Артикул
Описание
5

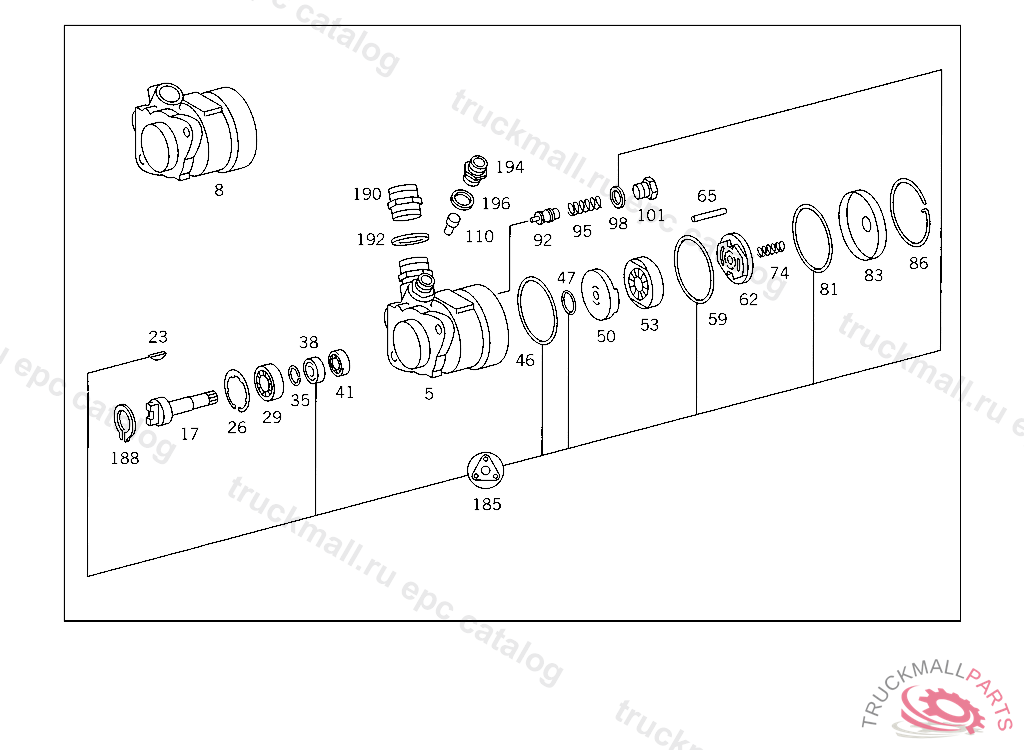

HYDRAULIC PUMP
8
HOUSING
17
DRIVE SHAFT
23
KEY , Replaced By: A0009912568
26
LOCK RING
29
BALL BEARING
35
SNAP RING
38
SEAL RINGTO 000 460 23 80
41
NEEDLE BEARING
41
NEEDLE BEARING , Replaced By: A0149818010
46
SEAL RINGTO 000 460 26 80
47
SEAL RINGTO 000 553 23 01,000 553 37 01,,4 250876
50
COVER , Replaced By: A0004667105
53
SET OF ROTORS
59
SEAL RINGTO 000 460 23 80
62
COVER , Replaced By: A0004667205
65
DOWEL PINTO 001 466 77 01
74
SPRINGTO 000 460 23 80
81
SEAL RING
83
COVER , Replaced By: A0004666505
86
SNAP RINGTO 000 460 23 80
92
PISTON
92
PISTON , Replaced By: A0004664583
92
PISTON , Replaced By: A0004660483
95
SPRING
98
SEAL RING LINE CONNECTION
101
SCREW PLUGTO 000 460 23 80
110
CARTRIDGE
110
CARTRIDGE , Replaced By: A0004663584
185
REPAIR KIT
188
LOCK RING
190
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
192
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
194
SCREW-IN FITTING AT PUMP
196
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
COVER , Replaced By: A0004663505
999
REPAIR KIT (GASKET KIT),POWER STEERING PUMP TO 001 466 19 01/27 01
999
SCREW PLUG , Replaced By: N000906014000
999
BALL BEARING , Replaced By: A0049810925
999
SPRING , Replaced By: A0059934201
999
BALL BEARING , Replaced By: A0049819625
999
SEAL RING
999
SEAL RING , Replaced By: A0005862746
999
BRACKET FUEL FILTER AND POWER STEERING PUMP
999
INTERMEDIATE PIECE FRONT SUSPENSION EYE TO CYLINDER HEAD
999
NARROW V-BELT , Replaced By: A0049973592
