Поз.
Артикул
Описание

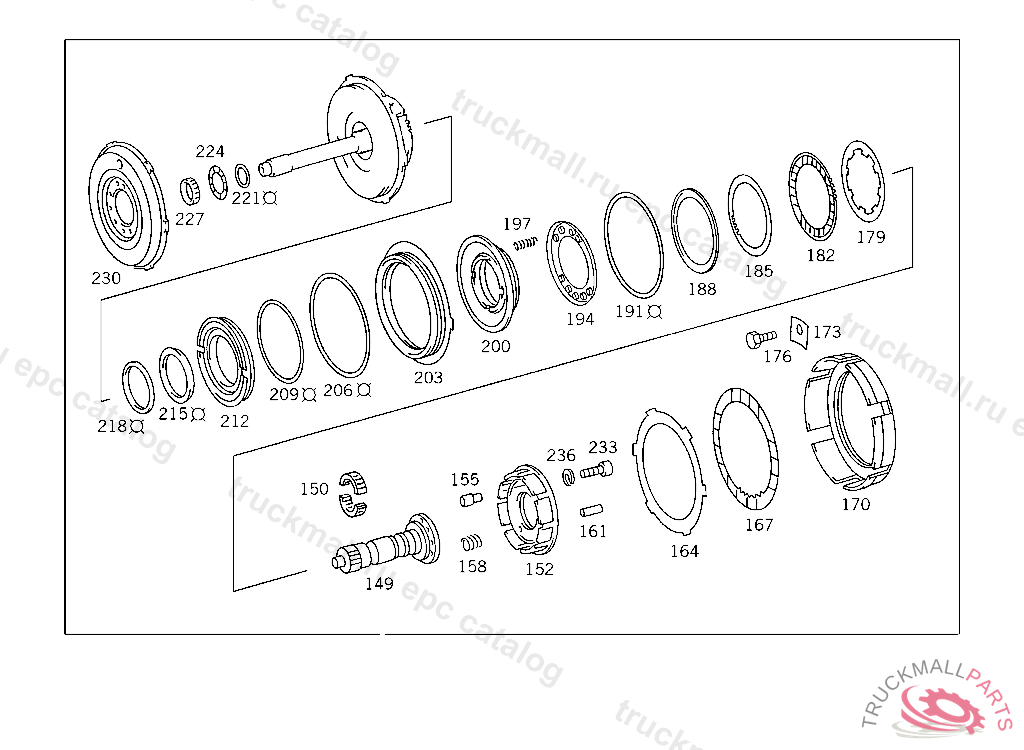

149
SHAFT (INTERMEDIATE SHAFT)
150
NEEDLE BEARING ADDITIONAL GEAR CLUSTER HOUSING TO TRANSMISSION CASE
152
DISC SUPPORT FORWARD SPEED CLUTCH
155
PIN FORWARD SPEED CLUTCH
158
SPRING REVERSE CLUTCH
161
CYLINDRICAL PIN FORWARD SPEED CLUTCH
161
PIN FORWARD SPEED CLUTCH
164
OUTER DISC AS REQUIRED 4.00 MM
164
OUTER DISC THIRD CLUTCH AND REVERSE CLUTCH 3.00 MM
164
OUTER DISC THIRD CLUTCH AND REVERSE CLUTCH 5.00 MM
164
OUTER DISC AS REQUIRED 4.50 MM
167
DISC ADDITIONAL-GEAR-CLUSTER BRAKE
167
DISC , Replaced By: A3072702338
170
DISC SUPPORT THIRD CLUTCH AND REVERSE CLUTCH
173
LOCK ADDITIONAL-GEAR-CLUSTER CLUTCH AND BRAKE
176
SCREW , Replaced By: N304017008027
179
INNER DISC AS REQUIRED 4.50 MM
179
INNER DISC AS REQUIRED 3.50 MM
179
INNER DISC AS REQUIRED 2.50 MM
179
INNER DISC AS REQUIRED 3.00 MM
179
INNER DISC AS REQUIRED 4.00 MM
182
DISC FORWARD SPEED CLUTCH 2.77 MM
185
INNER DISC AS REQUIRED 3.00 MM
188
SPRING RETAINER FORWARD SPEED CLUTCH
191
SEAL RING231 MM
194
SPRING RETAINER REVERSE CLUTCH
197
SPRING FORWARD SPEED CLUTCH 1.2X9.50X64 MM
200
PISTON FORWARD SPEED CLUTCH
203
PISTON THIRD CLUTCH AND REVERSE CLUTCH
206
SEAL RING THIRD CLUTCH AND REVERSE CLUTCH 249 MM
209
SEAL RING REVERSE CLUTCH 198 MM
212
PISTON REVERSE CLUTCH
215
BOOT118 MM
218
SEAL RING126 MM
221
SEAL RING50 MM
224
NEEDLE BEARING ADDITIONAL GEAR CLUSTER
227
NEEDLE BEARING51X56X15 MM
230
FLANGE DELIVER ADDITIONALLY: 2X307 997 01 10
233
SCREW GRIP RAIL MOUNTING M 8 X 35
236
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
