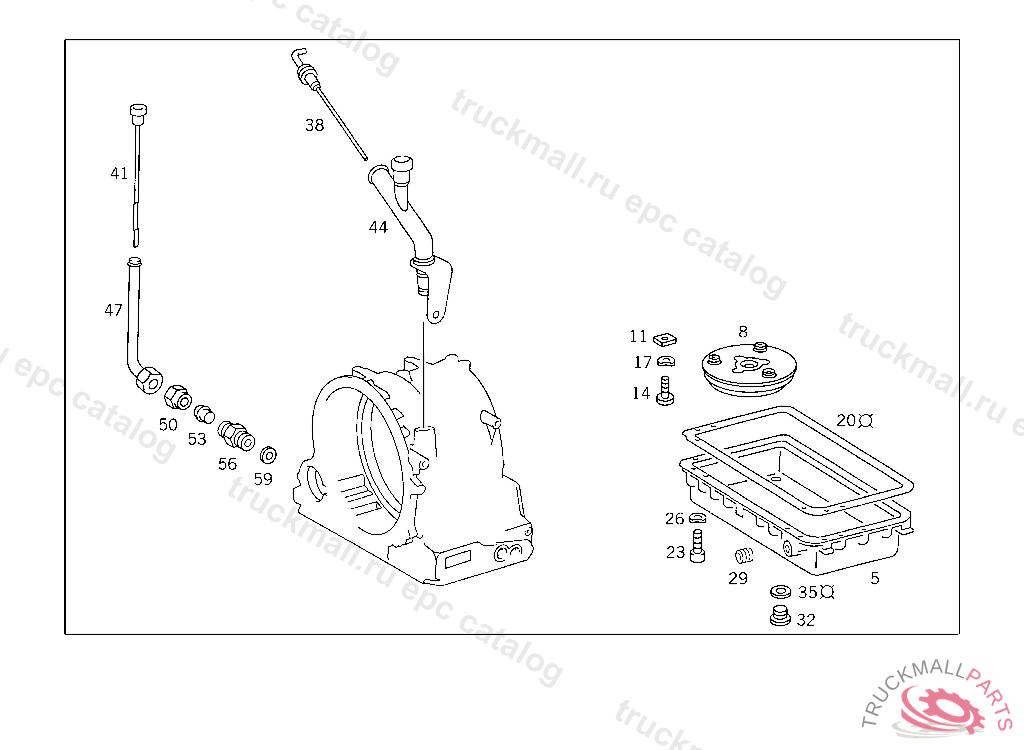

Поз.
Артикул
Описание
5
OIL PAN
8
FILTER VALVE BODY ASSEMBLY
8
FILTER , Replaced By: A3072700398
8
OIL FILTER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3072700298
11
BRACKET OIL FILTER TO VALVE BODY ASSEMBLY
14
SCREW PROTECTION PLATE TO BRACKET
17
SPRING WASHER LICENSE PLATE TO BRACKET
20
GASKET OIL PAN TO TRANSMISSION
23
SCREW GRIP RAIL MOUNTING M 8 X 35
26
SPRING WASHER , Replaced By: N000137008212
29
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
32
SCREW PLUG
35
SEAL RING PREHEATER TO OIL PAN
38
OIL DIPSTICK ,005776
44
OIL FILLER PIPE
44
OIL FILLER PIPE , Replaced By: A3072701084
