Поз.
Артикул
Описание
5

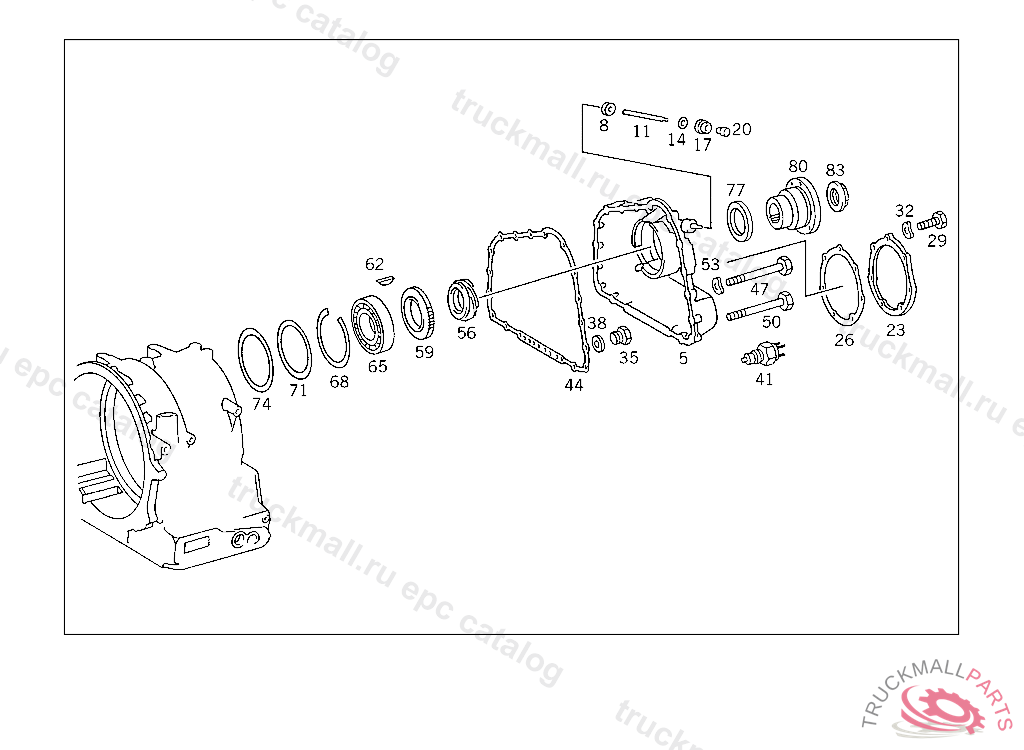

TRANSMISSION CASE REAR
8
DRIVEN GEAR SPEEDOMETER
11
DRIVE SHAFT SPEEDOMETER
14
SEAL RING SOLENOID VALVE A 18X24
17
CONNECTOR SPEEDOMETER DRIVE
20
SEAL RING SPEEDOMETER DRIVE
20
SEAL RING , Replaced By: A1152740060
20
SEAL RING , Replaced By: A0119976447
23
COVER REAR TRANSMISSION CASE
26
GASKET REAR TRANSMISSION CASE
26
GASKET , Replaced By: A3052710880
29
SCREW , Replaced By: N304017008027
29
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
32
SPRING WASHER , Replaced By: N000137008212
32
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
35
SCREW PLUG MEASURING CONNECTION
38
SEAL RING SCREW PLUG
41
SWITCH ADDITIONAL-GEAR-CLUSTER BRAKE 1.3 BAR
44
GASKET , Replaced By: A3052711380
44
GASKET REAR TRANSMISSION CASE TO FRONT TRANSMISSION CASE
47
SCREWM 8X40
50
SCREW VALVE TO BRACKET
50
SCREW VALVE TO BRACKET, Replaced By: N304014008002
53
SPRING WASHER , Replaced By: N000137008212
53
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
56
DRIVE GEAR SPEEDOMETER
59
GEAR SECONDARY PUMP AND GOVERNOR
62
WOODRUFF KEY INJECTION PUMP
65
GROOVED BALL BEARING ANNULUS CARRIER
68
SNAP RING BEARING TO TRANSMISSION CASE
71
SPACER WASHER AS REQUIRED 1.50 MM
74
SPACER WASHER AS REQUIRED 0.20 MM
74
SPACER WASHER AS REQUIRED 1.10 MM
77
SEAL RING TRANSMISSION CASE REAR COVER
80
FLANGE , Replaced By: A6172720345
80
FLANGE FRONT AXLE
83
NUT REAR TRANSMISSION CASE
999
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3079970045
999
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0159971448
