Поз.
Артикул
Описание

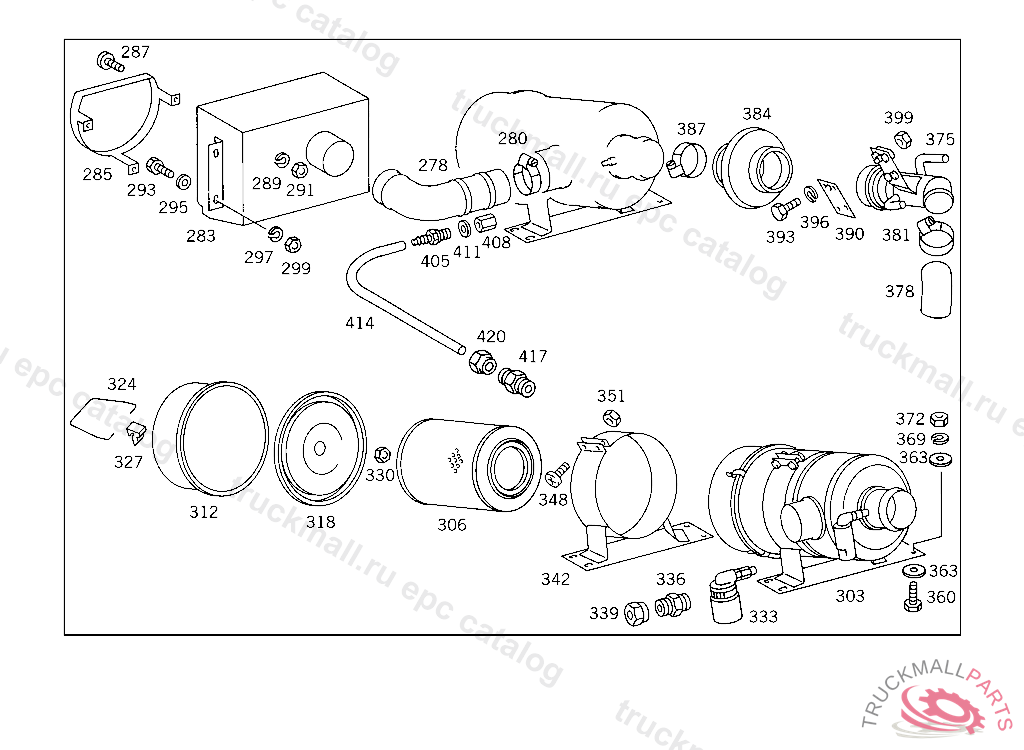

278
INTAKE PIPE AIR CLEANER
280
CLAMP AS REQUIRED
280
LOOM TIE , Replaced By: N916018090000
283
AIR INTAKE CASE
285
COVER , 423,426 FROM CHASSIS 13020593
287
SCREW PLUG SOCKET TO COVERING
289
LOCK WASHER T-FITTING TO BRACKET
291
NUT AIR INTAKE PIPE TO AIR INTAKE PIPE,937184
293
SCREW , Replaced By: N304017006016
295
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
297
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
299
NUT BALL PIVOT TO LEVER
303
AIR CLEANER , Replaced By: A3450948002
303
AIR CLEANER LESS BRACKET
303
AIR CLEANER WITH BRACKET
303
AIR CLEANER
306
FILTER ELEMENT
306
FILTER ELEMENTTO 394 094 70 01
306
CARTRIDGE
312
COVERTO 345 094 71 02,345 094 80 02
312
DUST COLLECTOR BOWLTO 341 094 70 02,341 094 74 01
318
SEPARATORTO 341 094 70 02,341 094 74 01
318
BOTTOM PARTITION
324
SPRING CLIPTO 341 094 70 02,341 094 74 01
327
FASTENERTO 341 094 70 02,341 094 74 01
330
NUTTO 341 094 70 02,341 094 74 01
333
VACUUM BOXTO 345 094 80 02,78 02,81 02
336
FITTINGTO 341 094 70 02,341 094 74 01
339
NUTTO 341 094 70 02,341 094 74 01
342
BRACKET
342
BRACKET AIR CLEANER
348
SCREW
351
NUT
360
SCREW , Replaced By: N304017010040
363
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
369
LOCK WASHER , Replaced By: N912004010102
372
NUT BRACKET TO RETARDER
375
AIR INTAKE PIPE TURBOCHARGER,A 081820
378
HOSE HOSE TO AIR INTAKE PIPE AND TO INTAKE PIPE SOCKET
378
HOSE FAN SHROUD
381
CLAMP
381
LOOM TIE , Replaced By: N916017070000
384
BOOT AIR INTAKE PIPE TO AIR CLEANER,950198
387
LOOM TIE
390
MOUNTING BOW
393
SCREW BRACKET TO EXHAUST PIPE BRACKET
393
SCREW SCREENING PLATE TO BRACKET,K 142858
396
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
396
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
399
NUT BALL PIVOT TO LEVER
399
NUT , Replaced By: N304032008006
405
STAY
408
NUT
411
SEAL RING FITTING TO AXLE HOUSING
411
SEAL RING , Replaced By: N007603010112
414
HOSE
417
FITTINGTO 341 094 70 02,341 094 74 01
420
NUTTO 341 094 70 02,341 094 74 01
999
FILTER HEADTO 001 092 67 01,D 031246
999
SEAL RING ,D 031246
999
FILTER HEADTO 000 092 74 01
999
TAPPET , Replaced By: A3410927008
