Поз.
Артикул
Описание

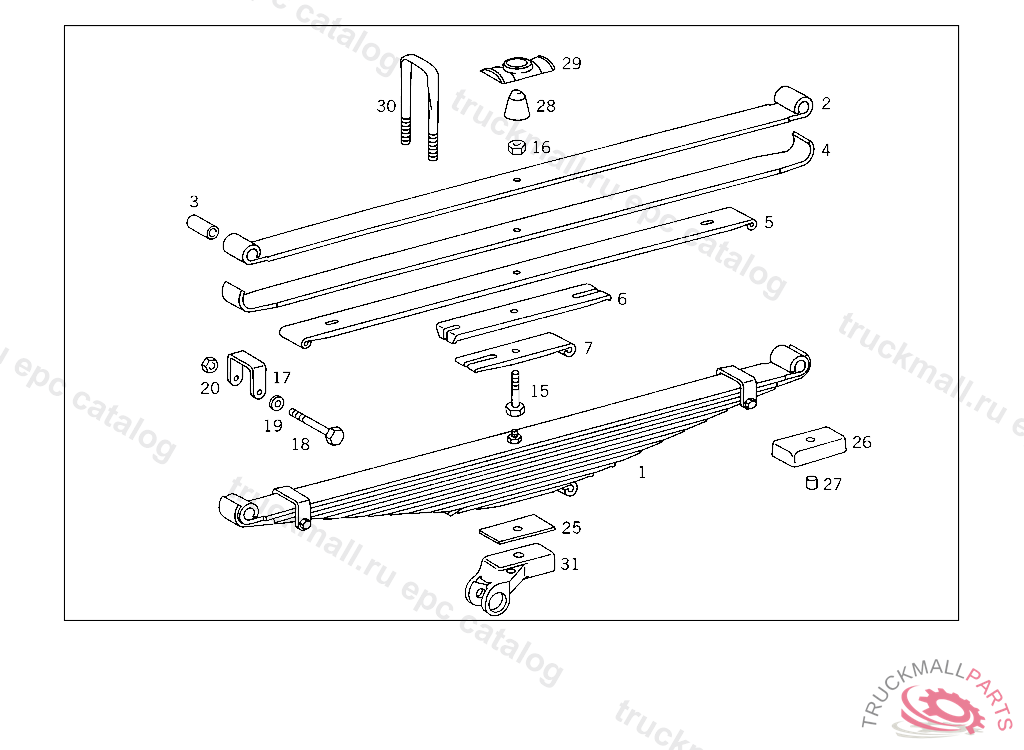

1
FRONT SPRING , ONLY REPLACEABLE BY PAIRS, Replaced By: A3633200002
1
FRONT SPRING 12-LEAF
2
SPRING LEAFNO.1
2
SPRING LEAF , Replaced By: A3633200094
3
BUSHING FRONT
3
BUSHING FRONT
4
SPRING LEAFNO.2
4
SPRING LEAF , Replaced By: A3633210012
5
SPRING LEAF , Replaced By: A3633210014
5
SPRING LEAF , Replaced By: A6593210714
5
SPRING LEAFNO.4
6
SPRING LEAF , Replaced By: A3633210021
6
SPRING LEAF , Replaced By: A6593210421
7
SPRING LEAF , Replaced By: A6593210422
7
SPRING LEAF , Replaced By: A3873210122
7
SPRING LEAFNO.12
7
SPRING LEAF , Replaced By: A3873210122
15
SCREW , Replaced By: A3873210071
15
SCREW , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 269038, Replaced By: A3873210071
15
SCREW (SPRING BOLT)
16
NUT BRACKET TO SIDE MEMBER
17
SPRING CLAMP , Replaced By: A6203240433
17
SPRING CLAMP SPRING EYE,FRONT AND REAR,5 1933955 533057
17
SPRING CLAMP , Replaced By: A0023219233
17
SPRING CLAMP ,5 193394, Replaced By: A6203240733, +001N000963012011
18
SCREW , Replaced By: N308765012007
18
SCREW FOR SPRING CLAMPS,5 484789
19
WASHER FOR SPRING CLAMPS
20
NUT STRAP TO SUPPORT
25
PAD FRONT SPRINGS TO FRONT AXLE 7 MM
26
SHIM FRONT AXLE II
27
SLEEVE , Replaced By: A3893230074
27
PIN FRONT SPRINGS TO FRONT AXLE 26 MM
28
RUBBER BUFFER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 389516, Replaced By: A6553310044
28
RUBBER BUFFER SPRING STOP
29
SPACER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 389516, Replaced By: A6483310026
29
PLATE FRONT SPRINGS TO FRONT AXLE
29
PLATE , Replaced By: A6483310026
30
U-BOLT FRONT SPRINGS TO FRONT AXLE 245 MM
30
U-BOLT , Replaced By: A3203310325
30
U-BOLT FRONT SPRINGS TO FRONT AXLE 212 MM,5 0251885 184732
31
BEARING LEFT
31
BEARING RIGHT
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE (PRESSURE RATIO VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
SCREW (SPRING BOLT)
999
YOKE , 029311
999
U-BOLT , Replaced By: A3043311925
999
SPACER
999
PLATE
999
LEVER
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
TYPE DESIGNATION , Replaced By: A3818173414
999
TYPE DESIGNATION2624
999
TYPE DESIGNATION , Replaced By: A3818174214
999
TYPE DESIGNATION"2024"
999
TYPE DESIGNATION1924
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
LEVER
999
TYPE PLATE , Replaced By: A3435842501
999
TYPE PLATE IN ENGLISH
999
TYPE PLATE , Replaced By: A6245841401
999
SPRING LEAF , Replaced By: A3633210013
999
SPRING LEAF , Replaced By: A3633210015
999
SPRING LEAF , Replaced By: A3633210016
999
SPRING LEAF , Replaced By: A3633210017
999
SPRING LEAF , Replaced By: A3633210018
999
SPRING LEAF , Replaced By: A3633210019
999
SPRING LEAF , Replaced By: A3633210020
999
TYPE DESIGNATION
999
TYPE DESIGNATION"2620"
999
TYPE DESIGNATION
999
TYPE PLATE , Replaced By: A3435842701
999
TYPE PLATE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3435842701
999
TYPE DESIGNATION
999
TYPE DESIGNATION6 X 4
999
TYPE DESIGNATION6 X 6
999
SPACER TUBE BEARING BRACKET TO FRAME
999
LEVER HAND BRAKE LINKAGE
999
ROD FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II
999
ROD FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II
999
ROD FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II
999
LEVER HAND BRAKE LINKAGE
999
BEARING BRACKET HAND BRAKE INTERMEDIATE LEVER, 660650
999
BUSHING , 660650
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
FRONT SPRING 6-LEAF
999
SPRING LEAFNO.1
999
SPRING LEAF , Replaced By: A6593210713
999
SPRING LEAF , Replaced By: A6593210615
999
SPRING LEAF , Replaced By: A6593210616
999
SPRING LEAF , Replaced By: A6593210617
999
SPRING LEAF , Replaced By: A6593210618
999
SPRING LEAF , Replaced By: A6593210619
999
SPRING LEAFNO.10
999
SPRING LEAFNO.1
999
SPRING LEAFNO.2
999
SPRING LEAFNO.3
999
SPRING LEAFNO.4
999
FRONT SPRING 9-LEAF
999
SHIM FRONT SPRINGS TO FRONT AXLE
999
TYPE PLATE
999
SPRING LEAFNO.2
999
ADHESIVE FOIL GUIDE SIGN
999
TYPE PLATE WITH INSCRIPTION: DAIMLER BENZ AG + "WDB", TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
999
SPRING LEAFNO.5
999
SPRING LEAFNO.6
999
SPRING LEAFNO.7
999
SPRING LEAFNO.8
999
SPRING LEAFNO.9
999
SPRING LEAFNO.3
999
COTTER PINROCKINGER TYP 260 G140
999
WASHER , Replaced By: N000433013010
999
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
999
LOCK RING P.T.O.
999
SCREW VIBRATION ABSORBER TO BRACKET
999
SCREW , Replaced By: N000961012208
999
SCREW BRACKET TO CONSOLE
999
SCREW FOR SPRING CLAMPS
999
PIN YOKE TO LEVER
999
PIN PULL ROD TO INTERMEDIATE LEVER
999
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
999
GREASE NIPPLE PROTECTIVE TUBE
999
T-FITTING
999
NUT CHECK VALVE TO AIR RESERVOIR
999
LOCK WASHER FITTING TO BRACKET
