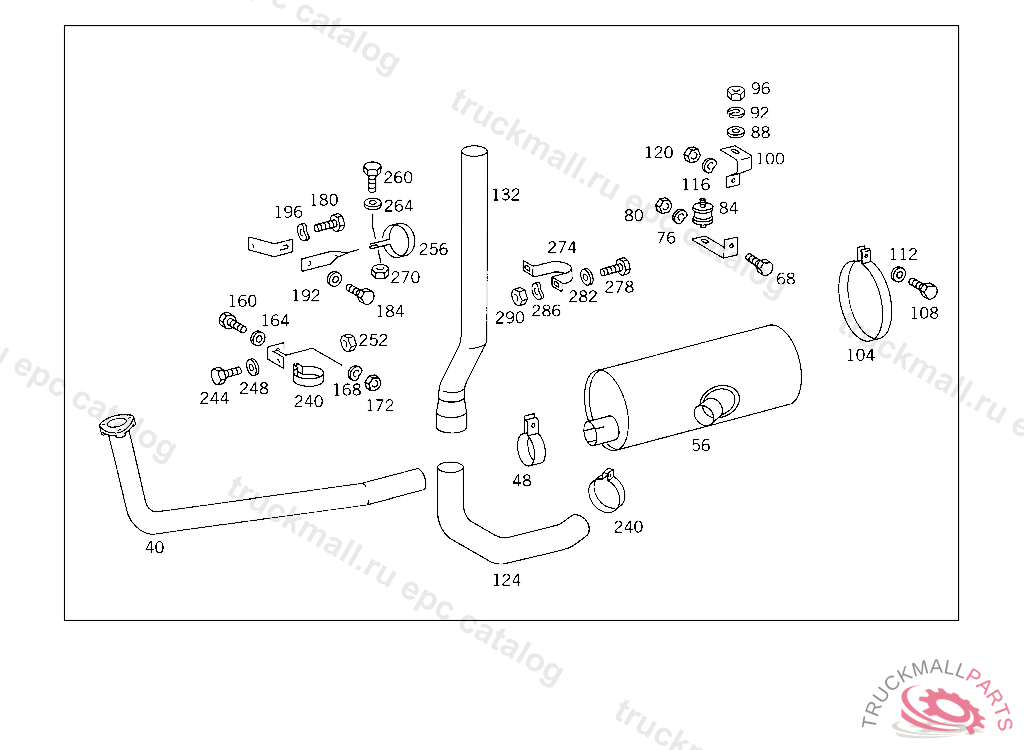

Поз.
Артикул
Описание
40
EXHAUST PIPE FROM EXHAUST MANIFOLD TO EXHAUST MUFFLER
48
CLAMP ATTACHMENT FOR CHARGE AIR PIPE,HOT
56
EXHAUST MUFFLER
68
SCREW , Replaced By: N308676012026
68
SCREW CONSOLE TO SIDE MEMBER
68
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
76
LOCK WASHER FITTING TO BRACKET
80
NUT STRAP TO SUPPORT
84
RUBBER MOUNTING
88
WASHER RADIATOR TO RUBBER MOUNTING
88
WASHER , Replaced By: N000125010532
92
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
96
NUT BRACKET TO SUPPORT AND TO END PIECE
100
BRACKET EXHAUST MUFFLER SUSPENSION
104
CLAMP EXHAUST MUFFLER TO BRACKET
104
CLAMP , Replaced By: A3874900041
108
SCREW BRACKET TO SIDE MEMBER
108
SCREW , Replaced By: N304017010002
112
WASHER RADIATOR TO RUBBER MOUNTING
112
WASHER , Replaced By: N000125010532
116
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
120
NUT , Replaced By: N910113010000
120
NUT STRAP TO BRACKET
124
REAR EXHAUST PIPE AT MUFFLER
124
REAR EXHAUST PIPE AT MUFFLER
124
REAR EXHAUST PIPE AT MUFFLER
132
EXHAUST PIPE (TAIL PIPE)
160
SCREW CONSOLE TO SIDE MEMBER
164
WASHER
168
LOCK WASHER FITTING TO BRACKET
172
NUT STRAP TO SUPPORT
180
SCREW , Replaced By: N304017008027
180
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
184
SCREW , Replaced By: N304017008034
184
SCREW BRACKET TO CROSS CONNECTION STRUT
192
WASHER , Replaced By: N000125008443
192
WASHER EXHAUST MUFFLER TO STRAP
196
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
240
CLAMP INTERMEDIATE PIECE
244
SCREW , Replaced By: N304017008027
244
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
248
WASHER EXHAUST MUFFLER TO STRAP
248
WASHER , Replaced By: N000125008443
252
NUT , Replaced By: N913004008001
252
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
252
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
256
CLAMP EXHAUST PIPE TO TOP OF CAB
260
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
260
SCREW , Replaced By: N304017008027
264
WASHER EXHAUST MUFFLER TO STRAP
264
WASHER , Replaced By: N000125008443
270
NUT , Replaced By: N913004008001
270
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
270
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
274
CLAMP EXHAUST PIPE TO TOP OF CAB, THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE
278
SCREW PIPE CLAMP
278
SCREW , Replaced By: N304017008021
282
WASHER , Replaced By: N000125008443
282
WASHER EXHAUST MUFFLER TO STRAP
286
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
290
NUT
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP , Replaced By: N071555100501
999
REAR EXHAUST PIPE
999
EXHAUST MUFFLER , Replaced By: A3464900101
999
REAR EXHAUST PIPE
999
FRONT EXHAUST PIPE
999
BRACKET
999
BRACKET TAIL PIPE
999
CLAMP REAR EXHAUST PIPE TO BRACKET
999
BRACKET TAIL PIPE
999
BRACKET REAR EXHAUST PIPE
999
CLAMP REAR EXHAUST PIPE
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
EXHAUST MUFFLER EXHAUST OUTLET,LEFT
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE ,4 858540
999
REAR EXHAUST PIPE ,4 858540
999
REAR EXHAUST PIPE ,4 860887
999
BRACKET EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
REAR EXHAUST PIPE ,4 858540
999
BRACKET REAR EXHAUST PIPE,4 858540
999
REAR EXHAUST PIPE ,4 858540
999
PLATE EXHAUST MUFFLER SUSPENSION
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
EXHAUST MUFFLER EXHAUST OUTLET,RIGHT
999
EXHAUST MUFFLER ,4 860887
999
EXHAUST MUFFLER
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
CLAMP
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
BRACKET
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE , Replaced By: A3544921904
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
BRACKET FRONT EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
BRACKET
999
BRACKET
999
BRACKET REAR EXHAUST PIPE
999
EXHAUST PIPE FRONT
999
EXHAUST MUFFLER
999
SPACER TUBE FRONT EXHAUST PIPE,B 884219
999
RUBBER DAMPING PLATE. DAMPING PAD , Replaced By: A3095860049
999
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
