Поз.
Артикул
Описание

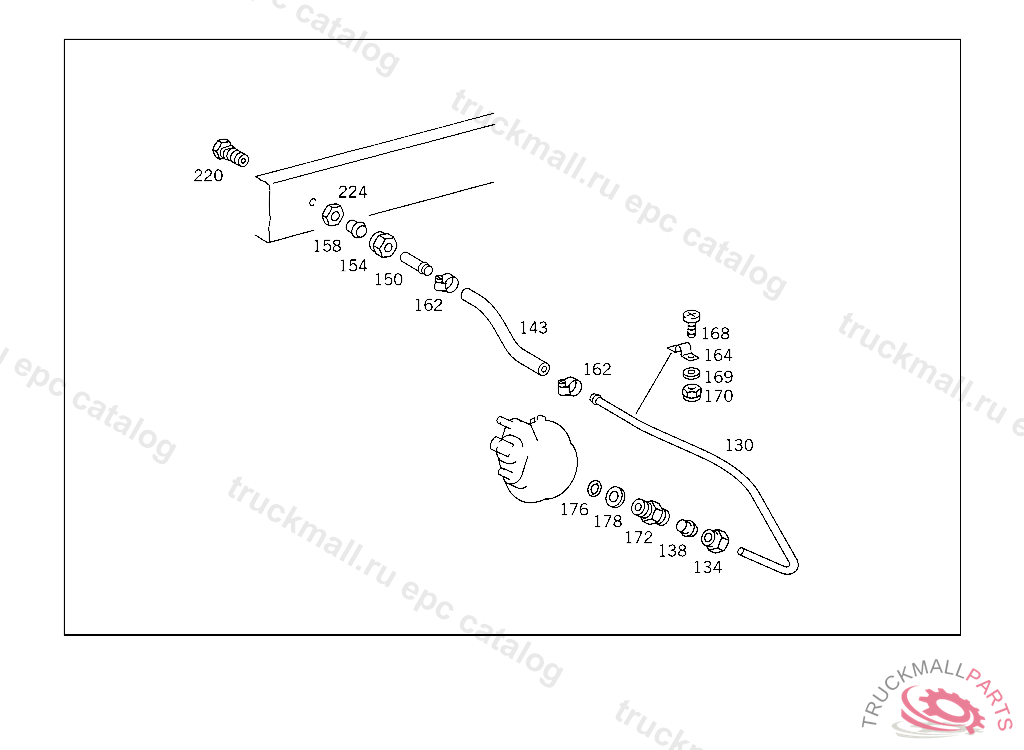

130
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
134
UNION NUT LINE CONNECTION
134
UNION NUT LINE CONNECTION, Replaced By: N000000006239
138
SEAL CONE LINE CONNECTION
138
GLAND , Replaced By: A0019901967
143
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
150
FITTING DIAPHRAGM CYLINDER,CONNECTION:
154
UNION NUT LINE CONNECTION
154
UNION NUT LINE CONNECTION, Replaced By: N000000006239
158
GLAND , Replaced By: A0019901967
158
SEAL CONE LINE CONNECTION
162
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
162
CLAMP HOSE TO FITTING AND TO OIL TANK
164
CLAMP 3/2-WAY SOLENOID VALVE
168
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
169
WASHER COMPRESSED AIR LINE TO BRACKET
169
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
170
NUT PUMP TO BRACKET
170
NUT , Replaced By: N913004006001
172
FITTING DELIVERY LINE TO PUMP
176
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
178
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
220
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
224
NUT BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22",4 821954
999
SCREW PIPE CLAMP
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING LINE CONNECTION
999
FITTING , Replaced By: A0009907871
999
SCREW , Replaced By: N304017008021
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW PLUG , Replaced By: N000908022011
999
NUT , Replaced By: N308675016001
999
WASHER BRACKET TO FRAME
999
WASHER , Replaced By: N000125017016
999
LOCK (PROTECTION AGAINST TORSION),5 934168
999
BRACKET BRACKET TO CROSS MEMBER
999
LINE , Replaced By: A6254293501
999
BRACKET LINE MOUNTING,4 4389724 691315
999
BRACKET , Replaced By: A6205243040
999
LINE , Replaced By: A6194290801
999
LINE , Replaced By: A3834290801
999
BRACKET (PROTECTION AGAINST TORSION),FRONT AXLE
999
BRACKET , Replaced By: A3525422840
999
GROMMET CAB FLOOR
999
STOP LIGHT SWITCH , Replaced By: A0005457009
999
BRACKET AIR RESERVOIRS I AND II,5 586938
999
HOSE LEVER TO SUPPORT
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
REPAIR KIT , Replaced By: A0004301160, +001A0004310273, +001A0004318383, +002A0004312185
999
REPAIR KIT , Replaced By: A0024301560
999
REPAIR KIT , Replaced By: A0025865242
999
VALVE , Replaced By: A0024319306
999
VALVE , Replaced By: A0034295344
999
PLUGTO 008 420 59 18,KNORR
999
VALVE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0024312906
999
VALVE , Replaced By: A0024310406
999
VALVE , Replaced By: A0014318406
999
GASKET , Replaced By: A0004311980
999
SEAL RING , Replaced By: A0009971548
999
PRESSURE REGULATOR , Replaced By: A0024314906
999
VALVE , Replaced By: A0024300381
999
VALVE , Replaced By: A0034291644
999
SCREW. UNION SCREW LINE CONNECTION
999
SPRING , Replaced By: A0009935205
999
BUSHING , Replaced By: N915062009000
999
BUSHING , Replaced By: N915062004000
999
BUSHING , Replaced By: N915062004000
999
CONNECTOR REPAIR SIZE
999
BANJO UNION , Replaced By: N915052004006
999
CONNECTOR , Replaced By: A0004311064
999
REPAIR KIT , Replaced By: A0024209324, +002A0024209424
999
REPAIR KIT , Replaced By: A0014300460
999
REPAIR KIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO WABCO NR.0182, Replaced By: A0004306260
999
REPAIR KITTO 001 430 18 81/78 81
999
HANDLETO 001 430 17 81,KNORR
999
ADAPTER FITTING , Replaced By: A0004296934
999
ADAPTER FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22"
999
ADAPTER FITTING , Replaced By: A0004296634
999
GUIDE , Replaced By: N071752014000
