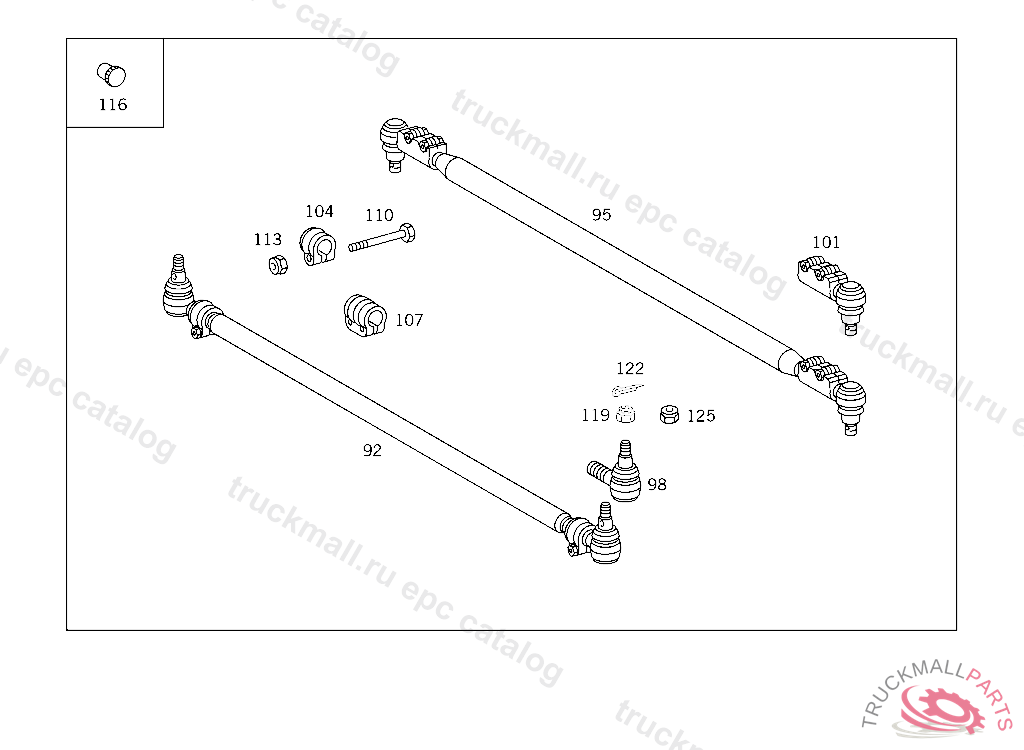

VL 3/12 D-5,3 - 730.052 - 33 FRONT AXLE
Поз.
Артикул
Описание
92
TIE ROD FRONT AXLE EHRENREICH
92
TIE ROD FRONT AXLE LEMFOERDER
98
JOINT R.H. THREAD EHRENREICH,5 180856
98
JOINT R.H. THREAD LEMFOERDER,5 180856
98
JOINT L.H. THREAD EHRENREICH
98
JOINT L.H. THREAD LEMFOERDER
107
CLAMP CLAMP, ONE-HOLE
110
SCREW CONSOLE TO SIDE MEMBER
113
HEXAGON NUT
119
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
122
COTTER PINROCKINGER TYP 260 G140
999
BOOT FIXED PART OF JOINT
