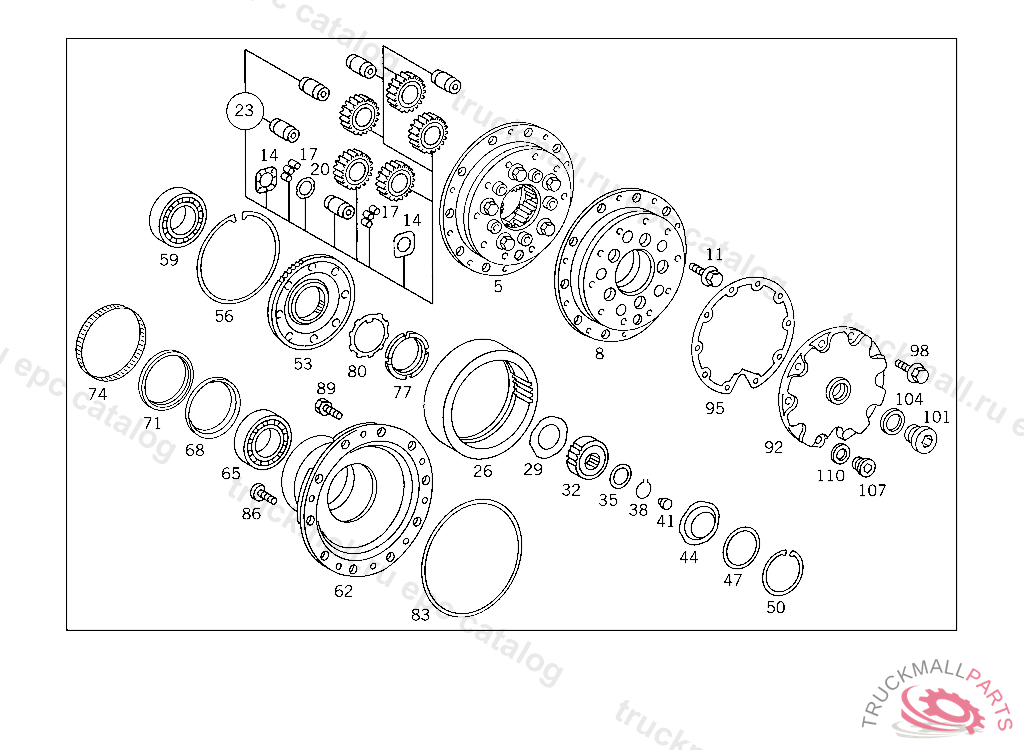

Поз.
Артикул
Описание
5
PLANETARY GEARING
5
PLANETARY GEARING
5
PLANETARY GEARING
5
PLANETARY GEARING FRONT AXLE, FOR COMPONENT PARTS SEE SPARE PARTS LIST
8
DRUM HUB
8
DRUM HUB
8
DRUM HUB
8
DRUM HUB
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
14
THRUST WASHER PLANET GEAR
17
NEEDLE , Replaced By: A0019812287
17
NEEDLE SET50 PIECES
20
THRUST WASHER PLANET GEAR
23
PLANET GEAR (PARTS KIT),NUMBER OF TEETH: "24"
23
PLANET GEAR PARTS KIT, V 290186
26
OUTSIDE GEAR NUMBER OF TEETH: 85
26
OUTSIDE GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 75, V 290186
26
OUTSIDE GEAR NUMBER OF TEETH: 85
29
GUARD PLATE PLANETARY GEAR TRAIN
32
SUN GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 25, V 290186
32
SUN GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 35, V 290186
35
THRUST RING SUN GEAR,OUTSIDE
38
LOCK RING BEARING TO DRIVE SHAFT,183596
41
THRUST WASHER AXIAL DIFFERENTIAL DRIVE SHAFT
44
THRUST WASHER AXIAL DIFFERENTIAL DRIVE SHAFT
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.80 MM
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.50 MM
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.10 MM
47
SPACER WASHER AS REQUIRED 0.50 MM, MAN AXLE
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.20 MM
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.00 MM
50
LOCK RING THRUST WASHER TO BELL HUB
53
SUPPORT OUTSIDE GEAR
53
SUPPORT OUTSIDE GEAR
56
WIRE RING OUTSIDE GEAR TO SUPPORT
59
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
59
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
59
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
62
WHEEL HUB , Replaced By: A3463341101
62
WHEEL HUB CASTING
65
TAPERED ROLLER BEARING
65
TAPERED ROLLER BEARING FRONT WHEEL HUB,INSIDE
65
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
68
SEAL RING WHEEL HUB
71
SEAL RING WHEEL HUB
74
SENDER UNIT (MEASURING RING) ANTI-LOCK BRAKING SYSTEM
77
GROOVED NUT WHEEL HUB TO REAR AXLE TUBE
77
GROOVED NUT HUB AND SUPPORT TO AXLE CASING
80
LOCK PLATE WHEEL HUB TO AXLE JOURNAL
83
SEAL RING PLANETARY GEAR TRAIN TO WHEEL HUB
86
WHEEL MOUNTING BOLT , TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
86
WHEEL MOUNTING BOLT INTERMEDIATE PIECE TO REAR AXLE
89
HEXAGON HEAD BOLT BRACKET TO CROSS MEMBER
92
END COVER ,006379 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3463340320, +002A3559970232, +002N007603045100
92
HUB CAP BELL HUB
95
GASKET COVER TO HUB
95
GASKET COVER TO BELL HUB, MAN AXLE
98
SCREW COVER TO BELL HUB
98
SCREW COVER TO BELL HUB M 10X28
101
SCREW PLUG
101
SCREW PLUG OIL FILLING
101
SCREW PLUG , Replaced By: A2109970132
104
SEALING RING OIL FILLING
107
SCREW PLUG , Replaced By: A2109970132
107
SCREW PLUG
107
SCREW PLUG OIL DRAIN
110
SEALING RING. SEAL RING OIL DRAIN
999
SCREW UNIVERSAL JOINT,OUTSIDE LEFT AND RIGHT, FROM FRONT AXLE V233747 ALSO INSTALLED ON V235670,V235671,V236075,V236076
999
GREASE NIPPLE PROTECTIVE TUBE
999
GREASE NIPPLE
