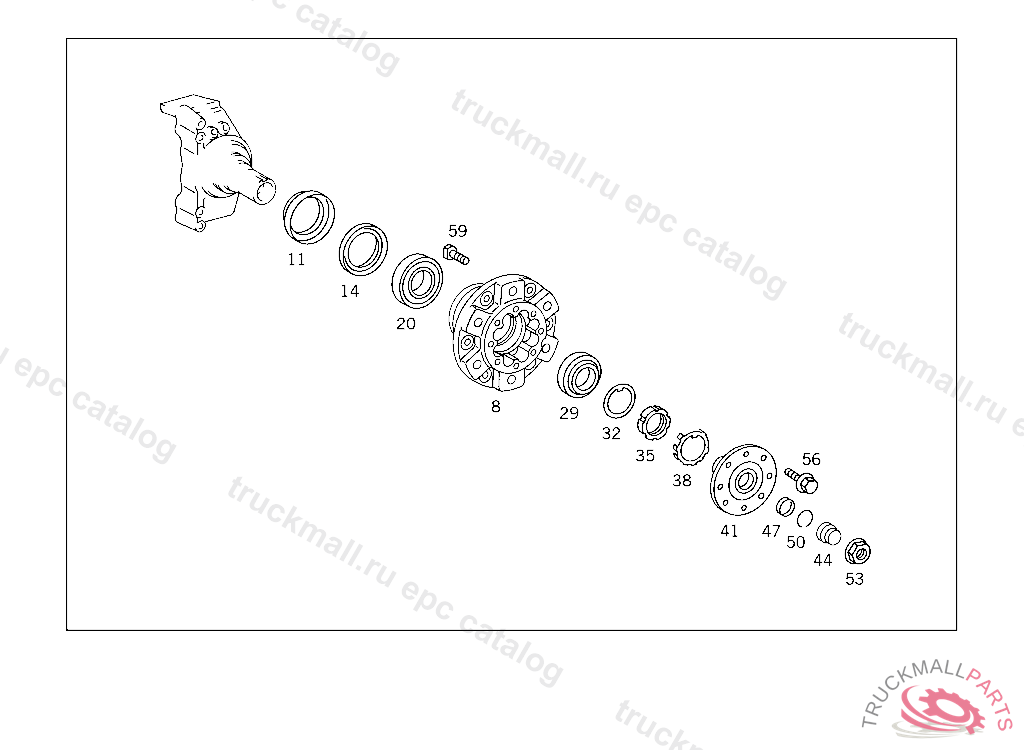

Поз.
Артикул
Описание
8
WHEEL HUB FRONT AXLE,LEFT AND RIGHT
11
SEAL RING WHEEL HUB, INSIDE
11
SEAL RING WHEEL HUB, INSIDE
14
SEAL RING HUB TO REAR AXLE TUBE
14
SEAL RING WHEEL HUB, INSIDE
20
TAPERED ROLLER BEARING INSIDE
20
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
20
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
20
TAPERED ROLLER BEARING INSIDE
29
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
29
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
29
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
32
SPACER WASHER REAR AXLE SHAFT
35
GROOVED NUT HUB TO REAR AXLE TUBE
35
GROOVED NUT REAR AXLE SHAFT
38
LOCK PLATE REAR AXLE SHAFT
41
FOLLOWER WHEEL HUB, OUTSIDE
44
GASKET FOLLOWER,F 024041
47
SPACER RING FOLLOWER AND DRUM HUB TO DRIVE SHAFT
50
SNAP RING FOLLOWER AND DRUM HUB TO DRIVE SHAFT
53
NUT
53
NUT , Replaced By: A3853510372
56
SCREW REAR AXLE HOUSING COVER M 12X30, SERRATED BOLT
56
SCREW , Replaced By: A6529901804
56
SCREW SUPPORT TO CYLINDER CRANKCASE
59
WHEEL MOUNTING BOLT
59
WHEEL MOUNTING BOLT
