Mercedes A6693300803 - ПОПЕРЕЧНАЯ РУЛЕВАЯ ТЯГА

AL 1/9 C-3 730.353

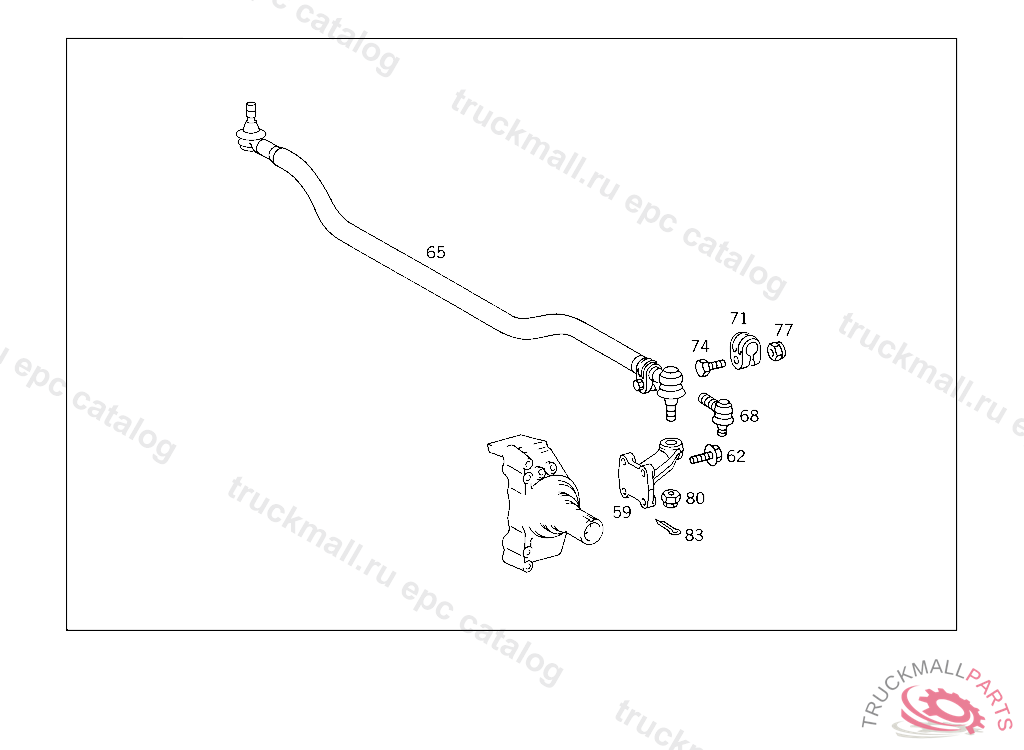

33 FRONT AXLE - 230 STEERING,KNUCKLES,TIE ROD IL. 2

Поз.
Артикул
Описание
59
A3453380206
STEERING ARM RIGHT STEERING KNUCKLE,F 010598
59
A3453380105
STEERING ARM LEFT STEERING KNUCKLE,F 010598
62
A0009907604
SCREW SUPPORT TO CYLINDER CRANKCASE
65
A6693300803
TIE ROD FRONT AXLE LEHMFOERDER,F 010598
68
A0003309035
JOINT L.H. THREAD LEMFOERDER
68
A0003309335
JOINT R.H. THREAD LEMFOERDER
71
A0003382645
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER, TO 002 460 14 05, 15 05,K 226468
74
N308676012018
SCREW STRUT TO FRAME M 12X62
77
N910113012003
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
80
N000937018004
NUT DRAG LINK TO LEVER
83
N000094004065
COTTER PINROCKINGER TYP 260 G140
