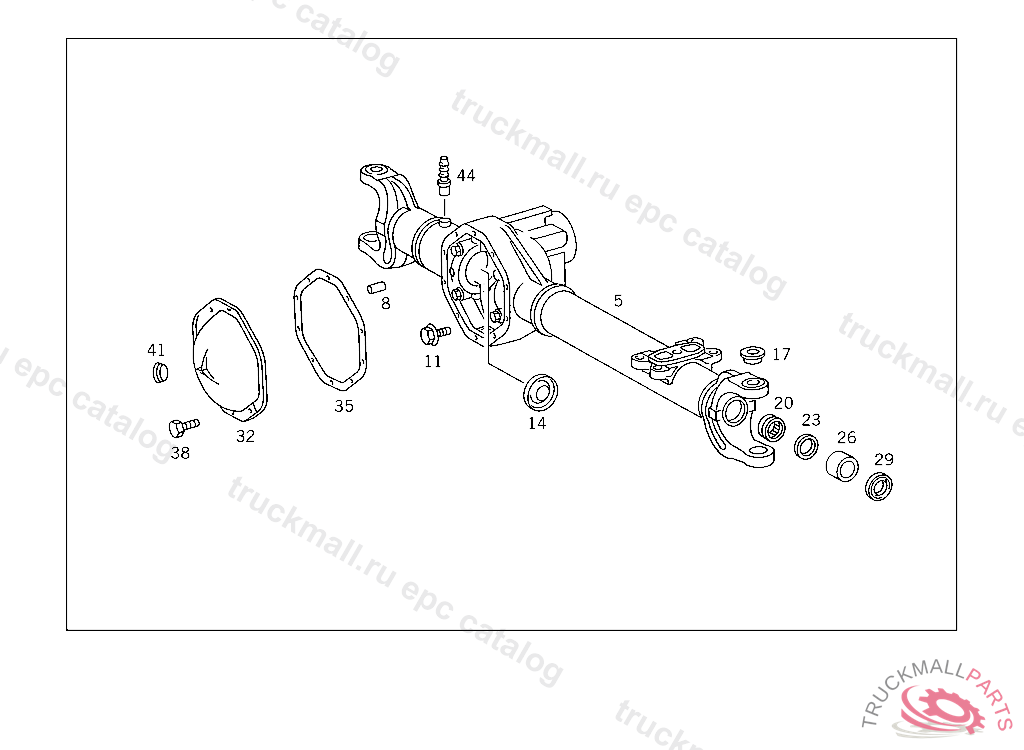

Поз.
Артикул
Описание
5
FRONT AXLE HOUSING WITH REAR AXLE TUBES
8
CYLINDRICAL PIN
8
CYLINDRICAL PIN
11
SCREW SUPPORT TO CYLINDER CRANKCASE
14
OIL COLLECTOR REAR AXLE TUBE
17
BUSHING
20
NEEDLE BEARING FRONT AXLE, ON THE LEFT AND ON THE RIGHT
20
NEEDLE BEARING FRONT AXLE, ON THE LEFT AND ON THE RIGHT
23
SEAL RING FRONT AXLE, ON THE LEFT AND ON THE RIGHT
23
SEAL RING FRONT AXLE, ON THE LEFT AND ON THE RIGHT
26
SEAL HOLDER FRONT AXLE, ON THE LEFT AND ON THE RIGHT
29
SEAL RING FRONT AXLE, ON THE LEFT AND ON THE RIGHT
29
SEAL RING FRONT AXLE, ON THE LEFT AND ON THE RIGHT
32
COVER REAR AXLE HOUSING
35
GASKET COVER TO DIFFERENTIAL CASE TO 673 350 00 21
38
SCREW COVER TO AXLE HOUSING M 10X20, TO 673 350 00 21, 02 21
41
SCREW PLUG BELL HOUSING
44
FITTING AXLE BREATHING
44
FITTING BLEEDING
